£ Place the pulley (part 13) with the
retention agent on the engine and
hold it in the housing (part 9) from
the back side.
£ Adjust the distance between the
edge of the housing and the first col-
lar of the pulley (part 13) according
to the distance which you had deter-
mined with the calliper gauge.

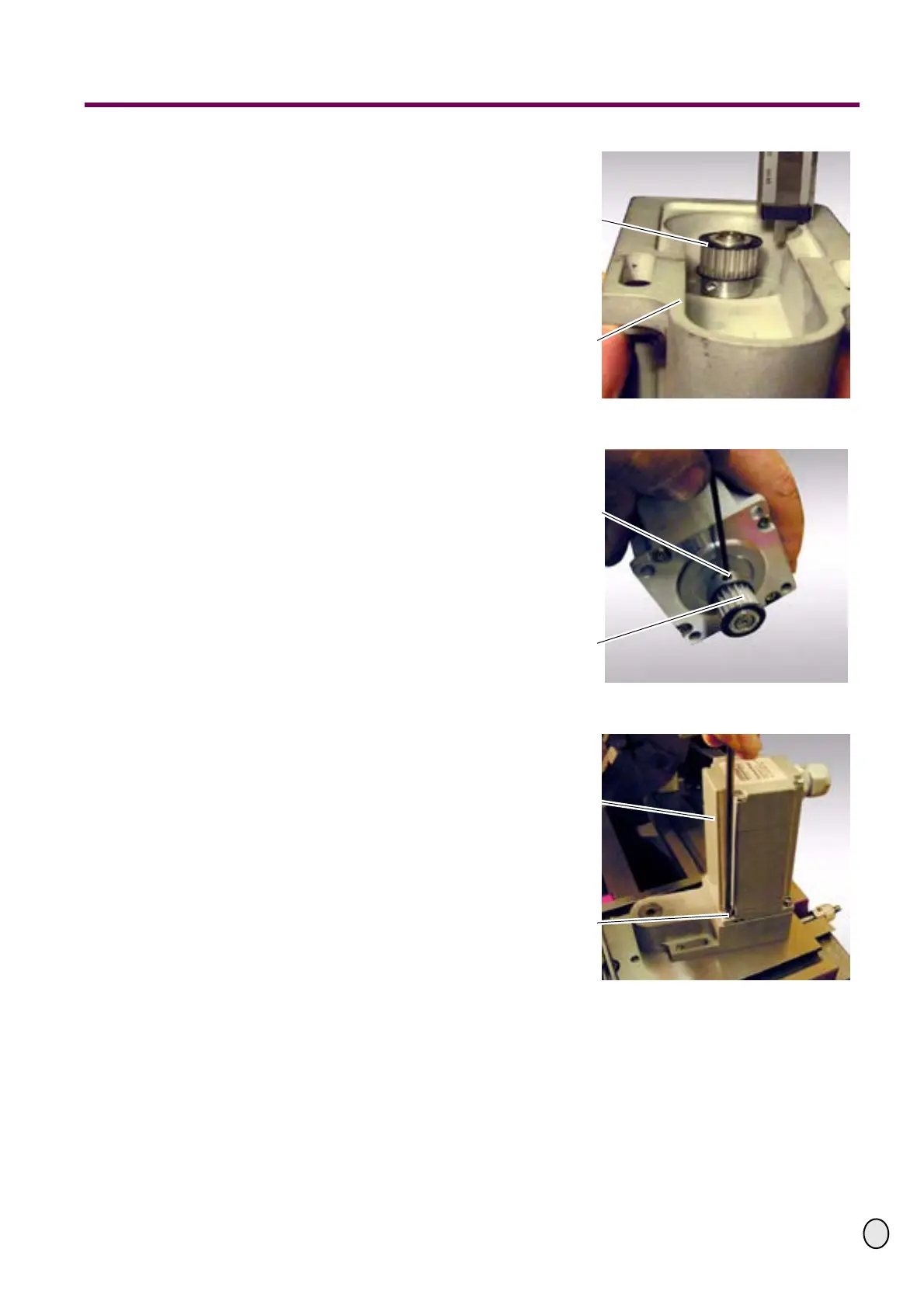

Illustr.: 4-39: Pulley on engine
£ Tighten the pulley with the hexagon
socket screw (part 18) (M4x5).
Illustr.: 4-40: Tighten pulley
£ Screw the step motor (part 15) with
the 4 screws (part 19) (M5x12) on
the housing (part 9).
Illustr.: 4-41: Fasten step motor
Pulley
Housing for X axis
Hexagon socket
screw
Pulley
Step motor
Fastening screws
