Version 1.0.1 - 2020-07-2324 Translation of original instruction
B20 | B25 | B32
EN
B20-B25-B32_GB.fm

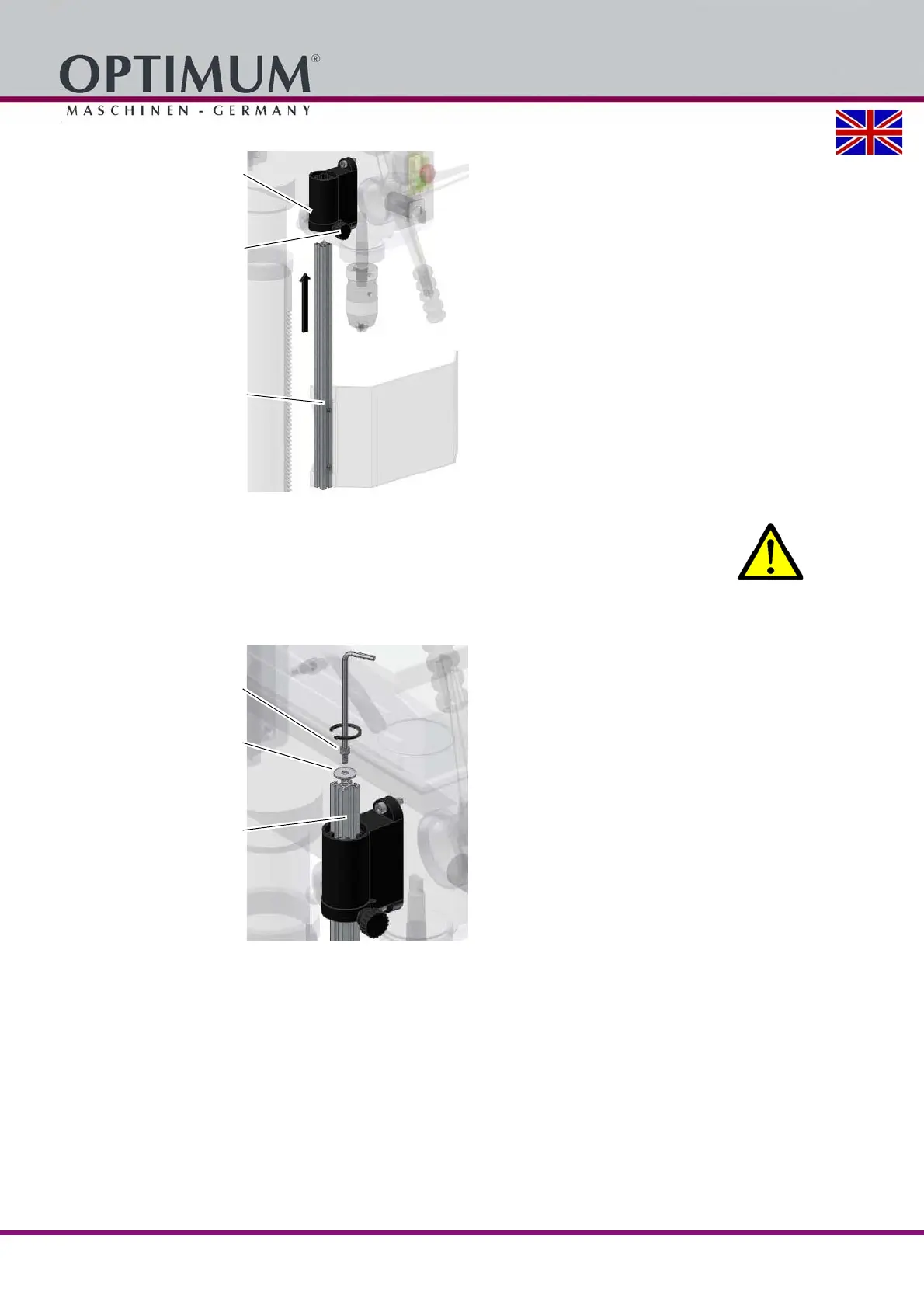

Img.3-7: Mounting drill chuck protection
WARNING!
Make sure that the hexagon socket screw and the locking washer are mounted and
tightly screwed. Otherwise the aluminium profile would slide out of the fixture when the
setting screw is screwed off.
After assembly, make sure that the adjusting screw points forward when the drill chuck pro-
tection is closed.
Fixture
Setscrew
Aluminium profile including
mounted safety screen
Hexagon socket screw
Locking washer
Aluminium profile
