4 Operation

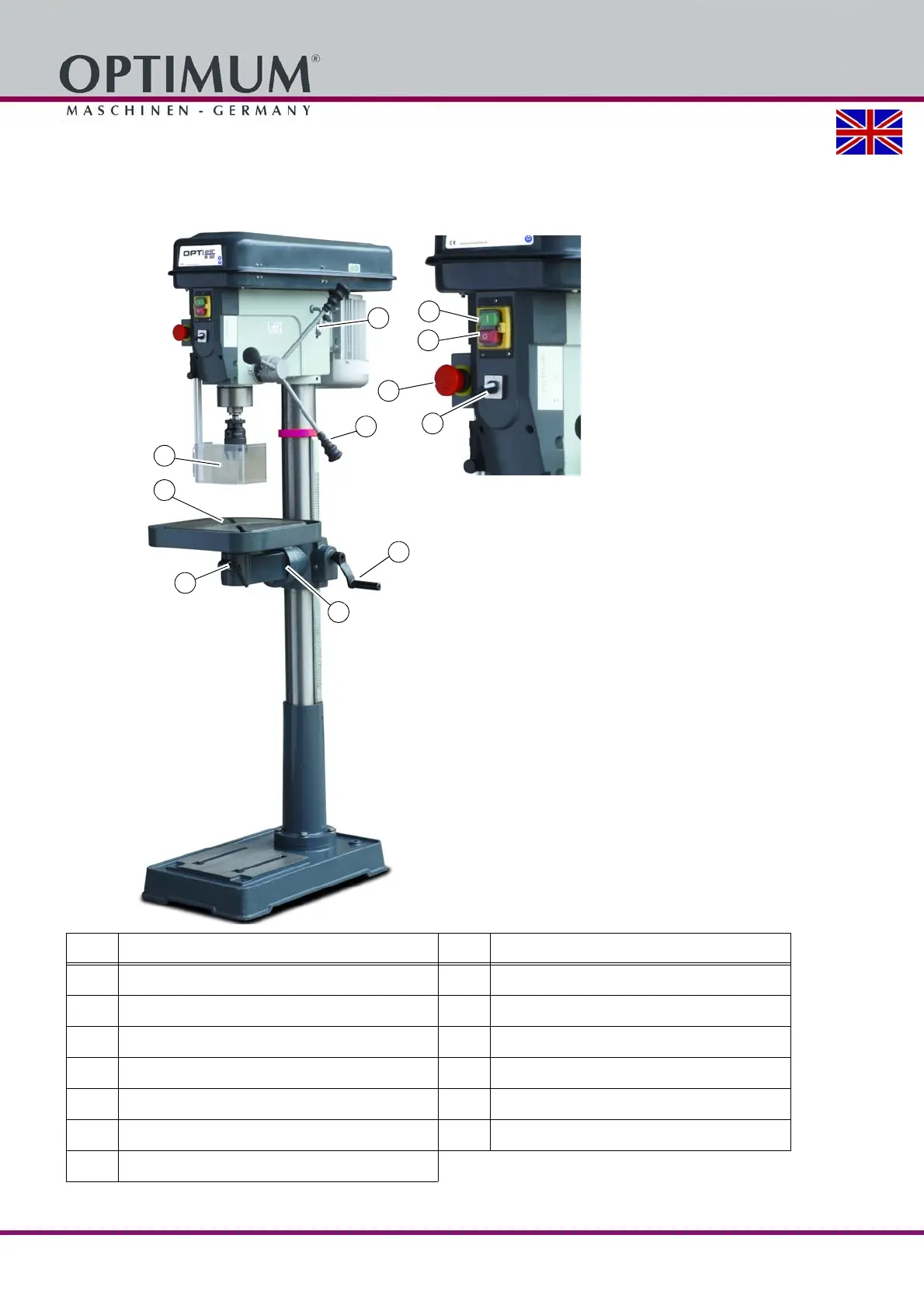

4.1 Control and indicating elements
Pos. Designation Pos. Designation
1
On 8 Lever for spindle sleeve feed
2
Emergency-stop switch 9 Drilling table
3
Off 10 Table height adjustment
4
Drill depth stop 11 Adjustment for the inclination of the table
5
Drill chuck guard 12 Clamping lever
6
Belt drive with housing 13 Direction of rotation switch
7
Belt tension handle
1
3
13
B32
2
5
9
7
8
10
12
11
