5.3 Repair
5.3.1 Customer service technician
For any repair work request the assistance of an authorised customer service technician. Con-
tact your specialist dealer if you do not have customer service's information or contact Stürmer
Maschinen GmbH in Germany who can provide you with a specialist dealer's contact informa-
tion. Optionally, the Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26
D- 96103 Hallstadt
can provide a customer service technician, however, the request for a customer service techni-
cian can only be made via your specialist dealer.
If the repairs are carried out by qualified technical personnel, they must follow the indications
given in these operating instructions.
Optimum Maschinen Germany GmbH accepts no liability nor does it guarantee against damage
and operating malfunctions resulting from failure to observe these operating instructions.
For repairs, only use
faultless and suitable tools,
original parts or parts from series expressly authorised by Optimum Maschinen Germany
GmbH.
When necessary
Gibs
Milling table
Reset
X axis
Y axis
Loosen one screw, turn the other adjustment screw of the
gib clockwise. The gib is pushed further inward thus reduc-
ing the play in the guide rail.
Check the settings. The corresponding guide rail must be
more easily movable but ensure stable guidance.

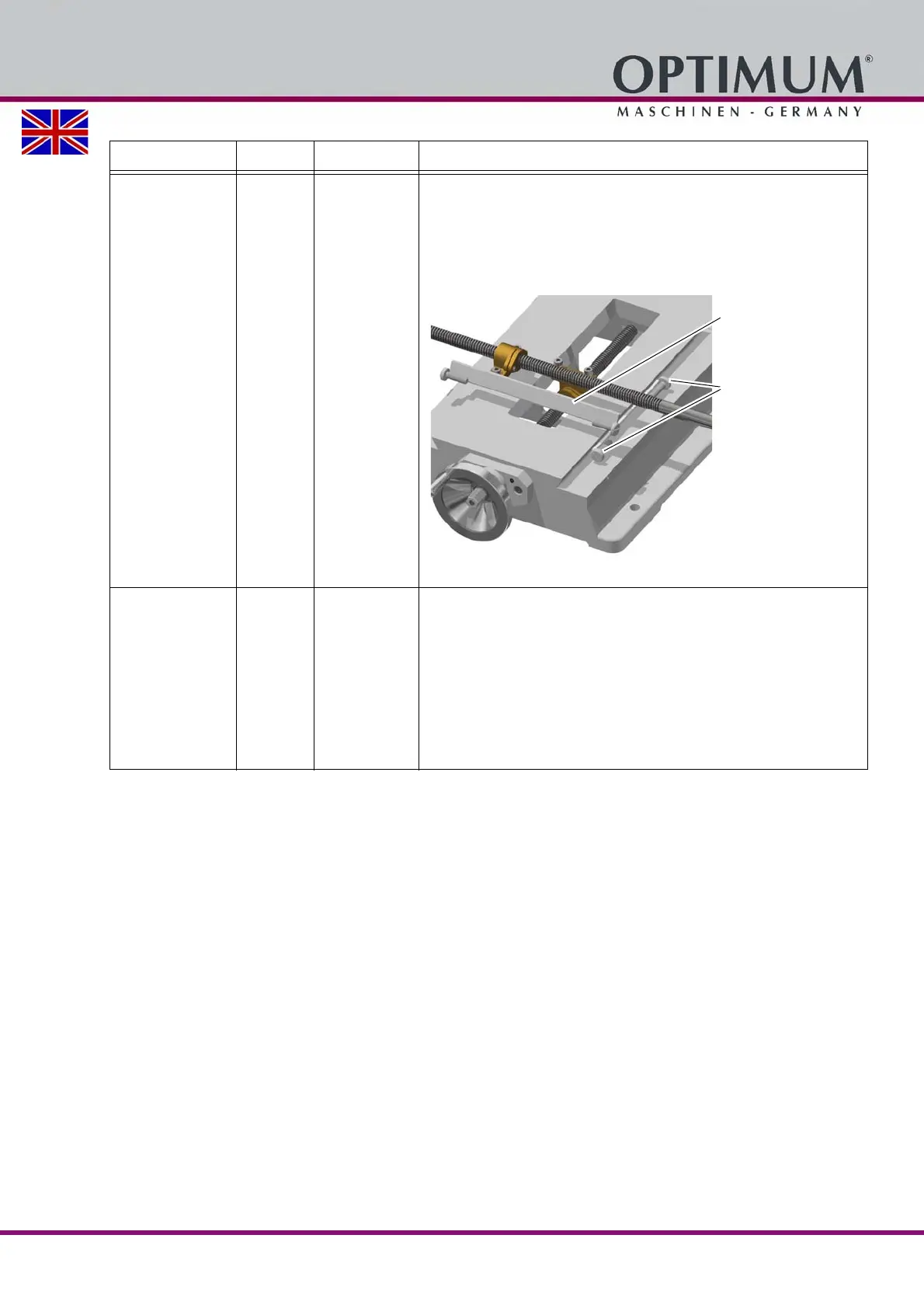

Img.5-6: X axis / Y axis adjustment screws
based on operator's
empirical values
in accordance with
German DGUV (BGV A3)
Electronics
Electrical
inspection
Operator's obligations on page 13
Electrical system on page 18
Interval Where? What? How?
