PK201 Condential 2-2

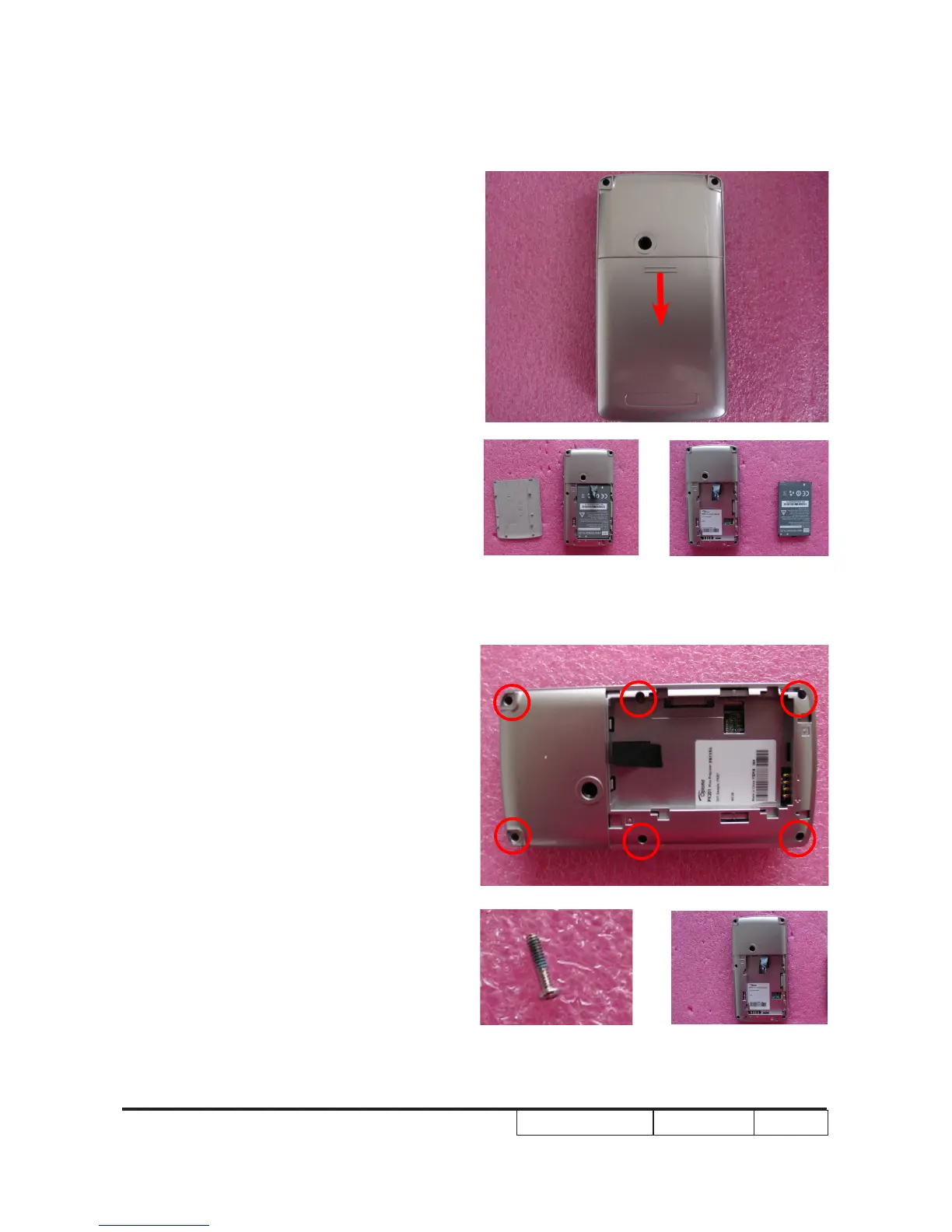

2-3 Disassemble TOP Cover
Module
1. Unscrew 6 screws from the Bottom
Cover (as red circle).
2-2 Disassemble Battery
Cover Module
1. Disassembe the Battery Cover Module
(as red arrow direct).
2. Remove the Battery.
2 3
