Order Confirmation System Remote Display Pedestal -

Detail 2 Dimensions

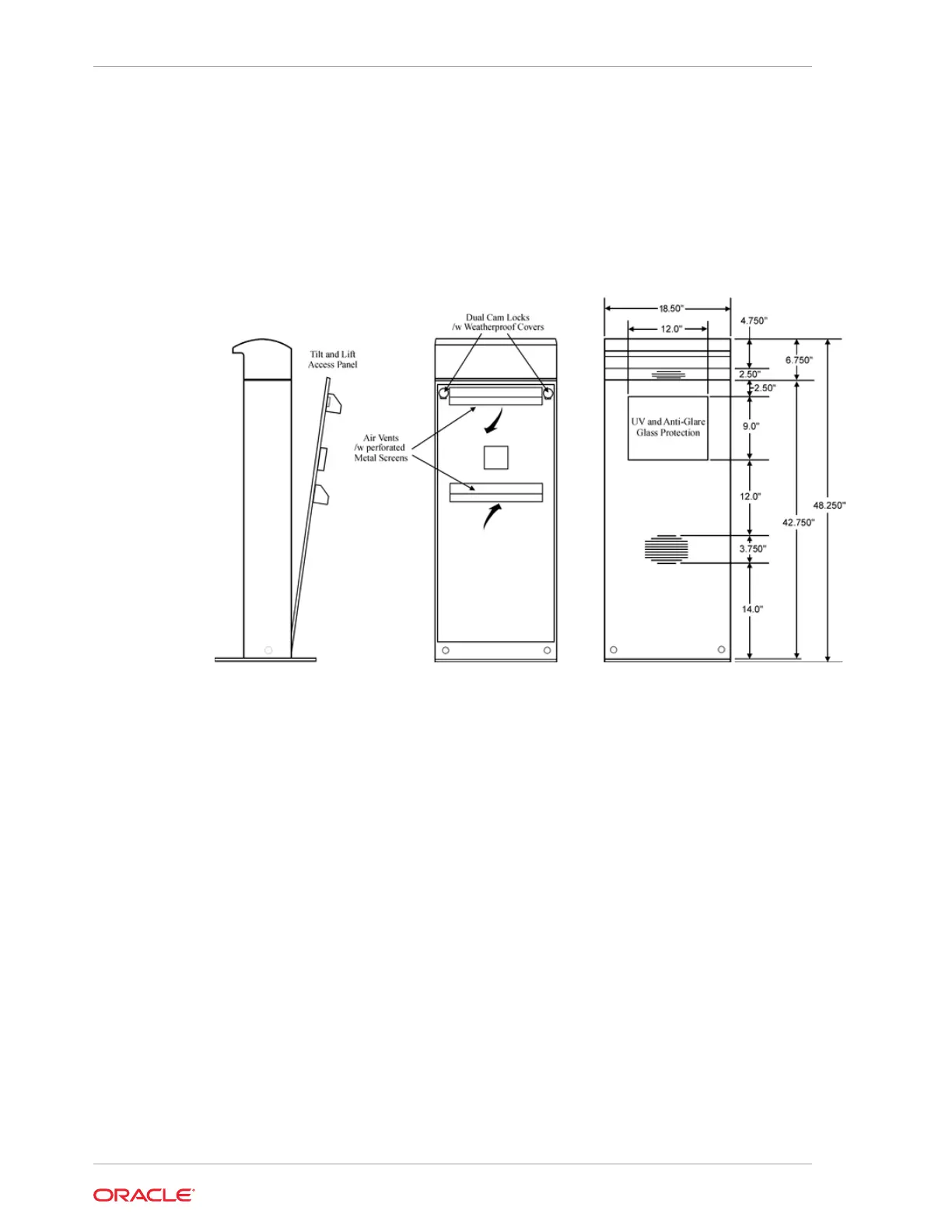

Figure 29-43 Order Confirmation System Remote Display Pedestal - Detail 2

Dimensions

Chapter 29

Order Confirmation System Remote Display Pedestal - Detail 2 Dimensions

29-42
