MICROS 10-Key Bumpbar Mounting Bracket Dimensions

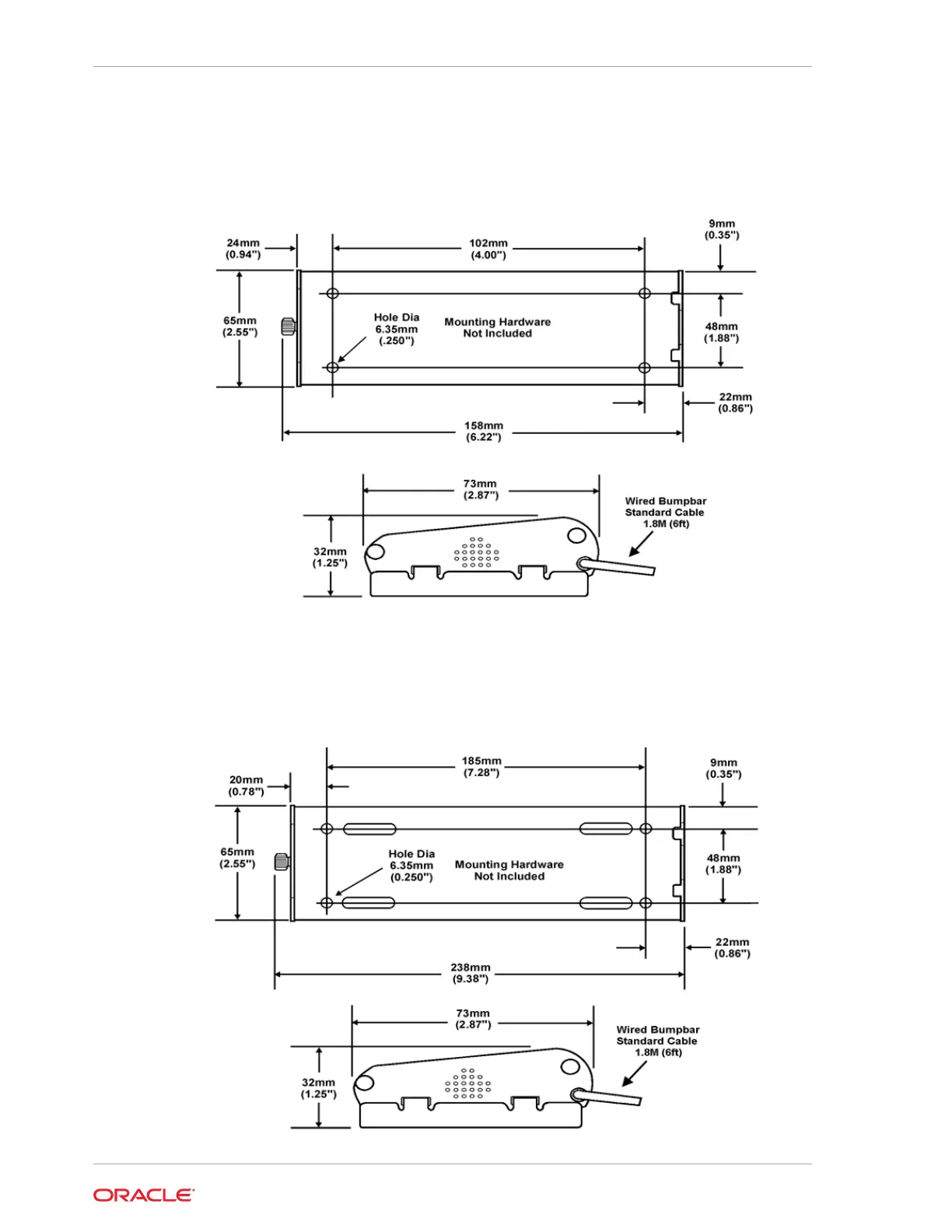

Figure 29-45 10-Key Bumpbar Mounting Bracket Dimensions

MICROS 20-Key Bumpbar Mounting Bracket Dimensions

Figure 29-46 20-Key Bumpbar Mounting Bracket Dimensions

Chapter 29

MICROS 10-Key Bumpbar Mounting Bracket Dimensions

29-44
