*The Workstation 6 Series does not contain a camera. The front-facing opening on the
Workstation 6 Series touchscreen border was designed for a front-facing camera;
however, this cameras was never implemented.
MICROS Workstation 6 Series Primary I/O Ports
The Primary I/O Panel contains the following ports:
• 12V Power Output
• 12V Power USB Header
• IDN Port RS422/RS232
• Series 2 Cash Drawer x2The Series 2 ports are more compact than the previous
generation and feature an expanded number of pins to accommodate more
options on the cash drawer interface. You can use an adapter cable for backwards
compatibility to existing cash drawers.
• USB 2.0 x2
• High Definition 2nd Display Output Connector Display Output
• Customer DisplayThe Customer Display port supports existing pole displays and
the Workstation 6 integrated customer display.
• USB x2
• 10/100/1G Ethernet
• 24V Power USB (620 and 650 Only)
• RJ-45 Powered Serial (0/5/9/12V)
– 2 available on the 610
– 1 available on the 620 and the 650
• RJ-45 Serial
• Microphone In/Headphone Out

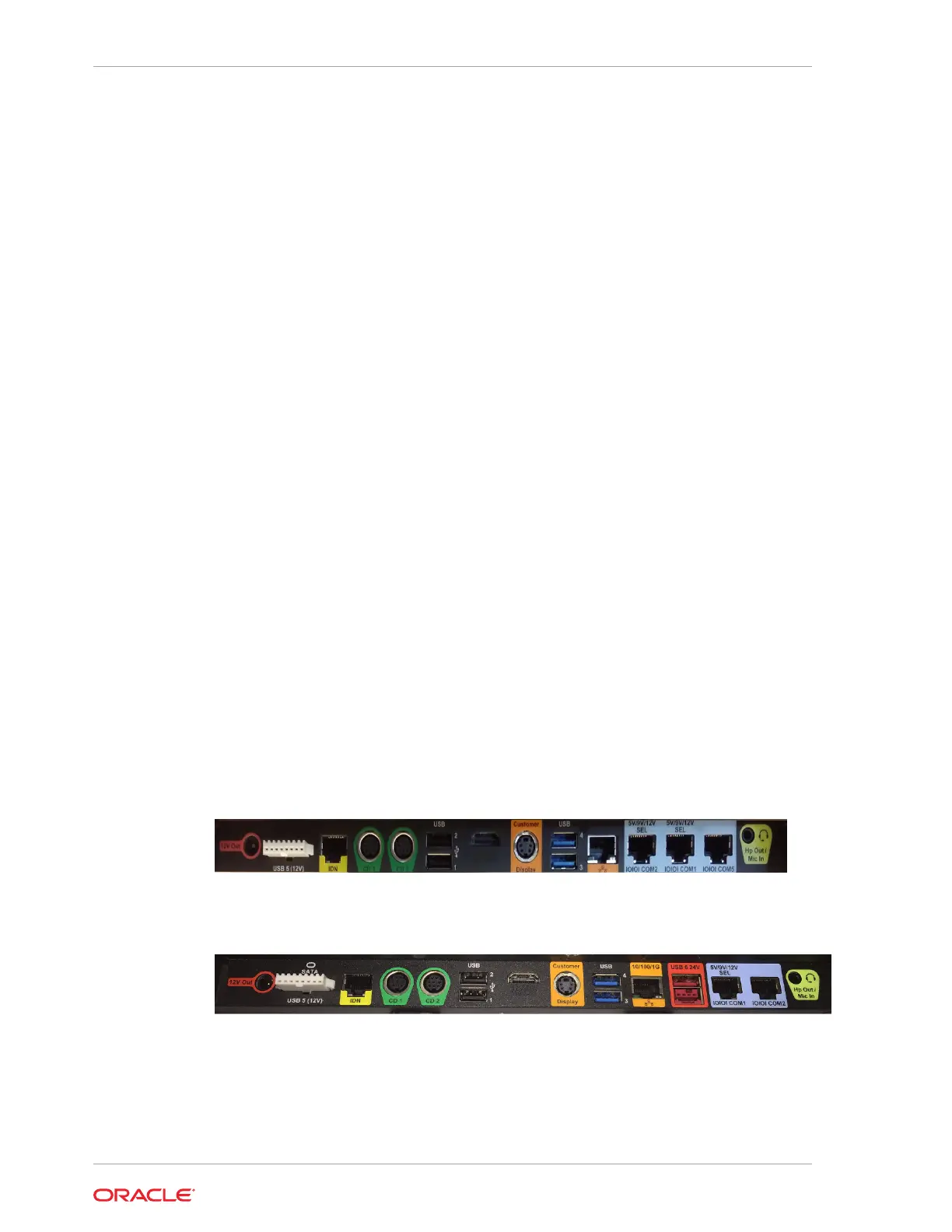

Figure 4-2 Primary I/O Panel of the MICROS Workstation 610
Figure 4-3 Primary I/O Panel of the MICROS Workstation 620 and 650
