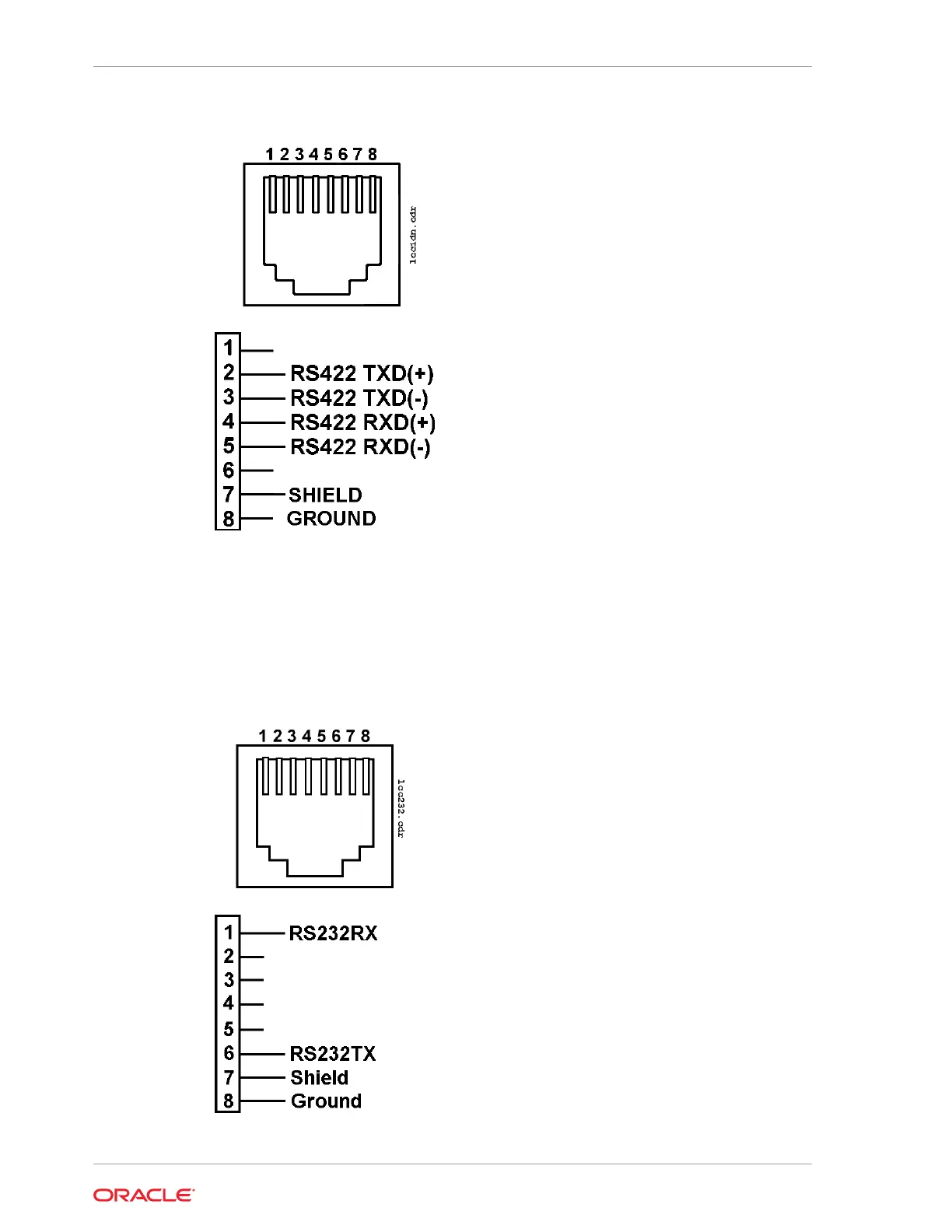

Figure 30-1 IDN or RS422-A/B Connectors Configured for IDN Printing

Port Configured for RS232 Devices

The figure below shows the multifunction modular port(s) configured as a basic RS232

Interface.

Figure 30-2 IDN or RS422-A/B Connectors Configured for RS232

Chapter 30

RS422-A, RS422-B or IDN

30-2
