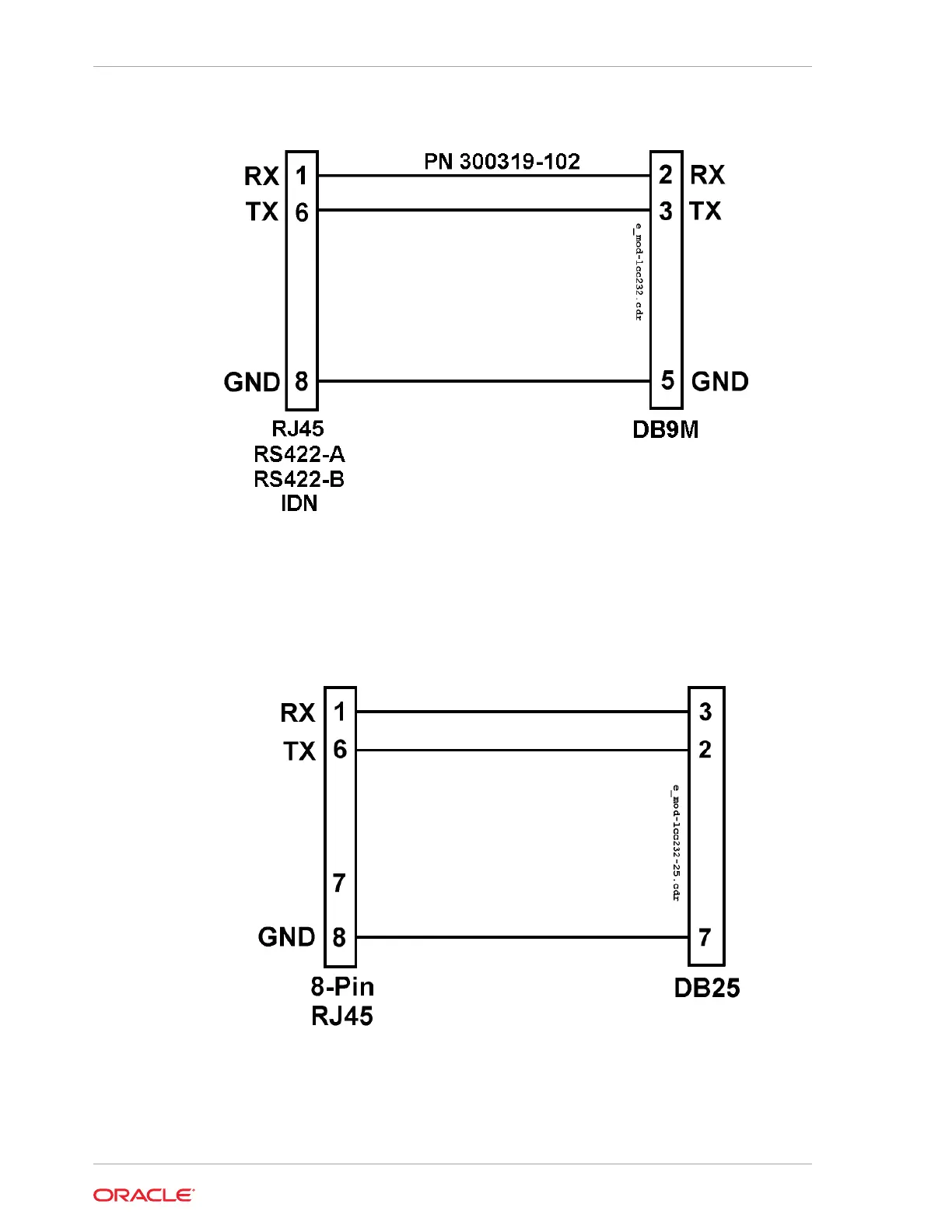

Figure 31-2 Modular LCC/RS232 to DB9 Male Connector
The figure below shows a diagram of a similar cable that terminates with a DB25 Male
connector in place of the DB9.
Figure 31-3 Modular LCC/RS232 to DB25 Connector
Modular RS232 Port to DB9/DB25 Male Connector
The figure below shows a diagram of cable PN 300319-103-PT. This cable converts a
modular COM 2 or COM 5 port to a DB9 Male connector.
