Orban 5750 Technical Manual Operation 3-57

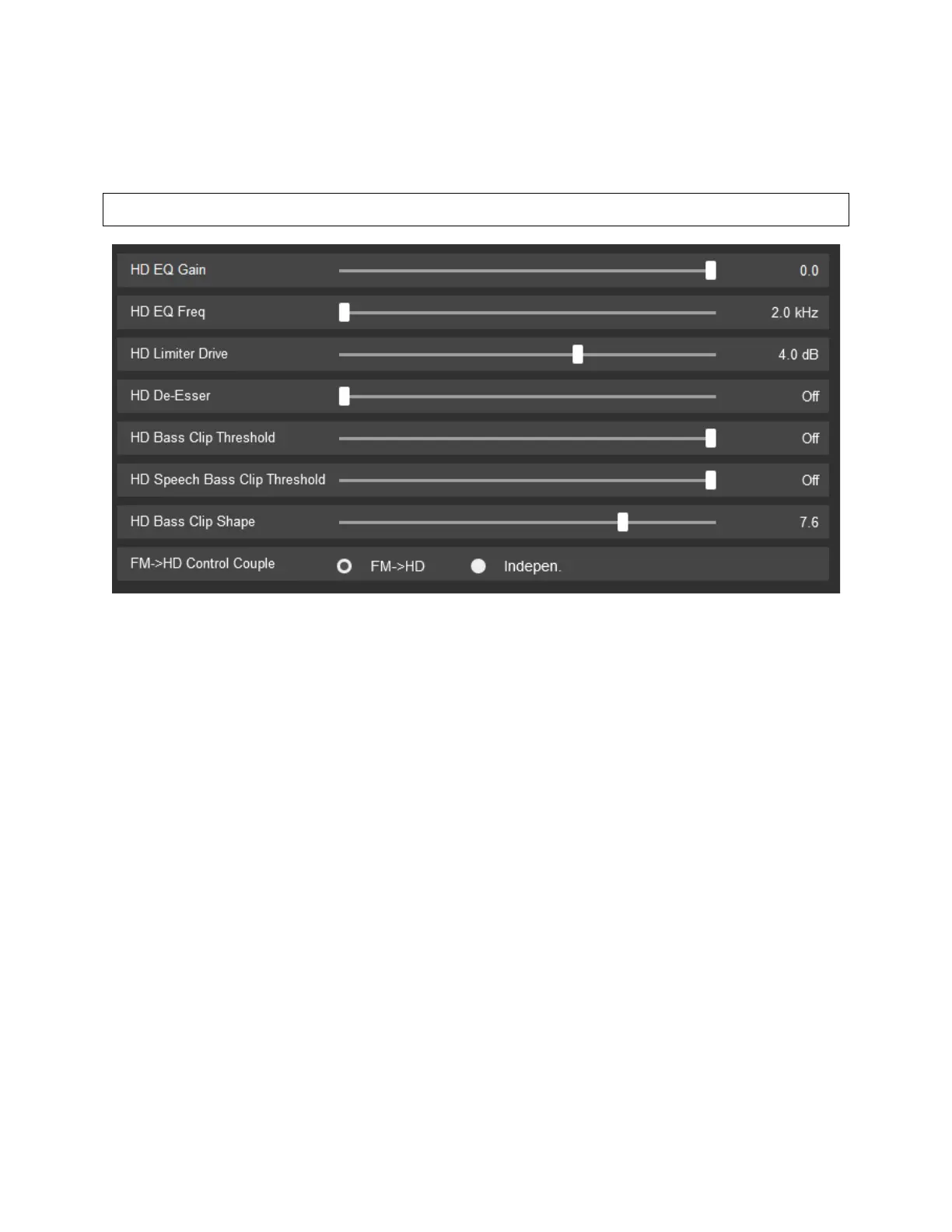

HD LIMITING
• HD EQ GAIN – Determines the depth of high frequency shelving equalization produced by the parametric HF
shelving equalizer.
• HD EQ FREQ (Frequency) – Sets the corner of the parametric high frequency shelving equalizer
• HD Limiter Drive – Sets the drive level to the HD limiter.
• HD De-Esser – Reduces sibilance (‘ess sounds”) that might otherwise cause unwanted distortion,’
• FM>HD Control Couple – Links the HD controls to their corresponding FM controls when coupled.
