Orban 5750 Technical Manual Operation 3-43
PHASE CORRECT: The phase correct option will “repair” asymmetrical voice audio so that it is more symmetrical and
easier to process. Orban’s recommended setting is on.
MONITOR SOURCE: Changes the low latency monitor from the DJ Processing option to the output of the multiband
processing.
DIGITAL INPUT ANALOG FAILBACK: If the AES signal is lost (or if audio falls below the user defined threshold and
user defined time), the 5750 will switch to an active analog input with audio present.
DIVERSITY DELAY MODE: Selects if the processor had a delay path in the FM or FM+HD audio path.
REMOTE INTERFACE
The GPI/GPO closures on the DB cable on the rear of the 5750 allow you to take different presets via contact closure.

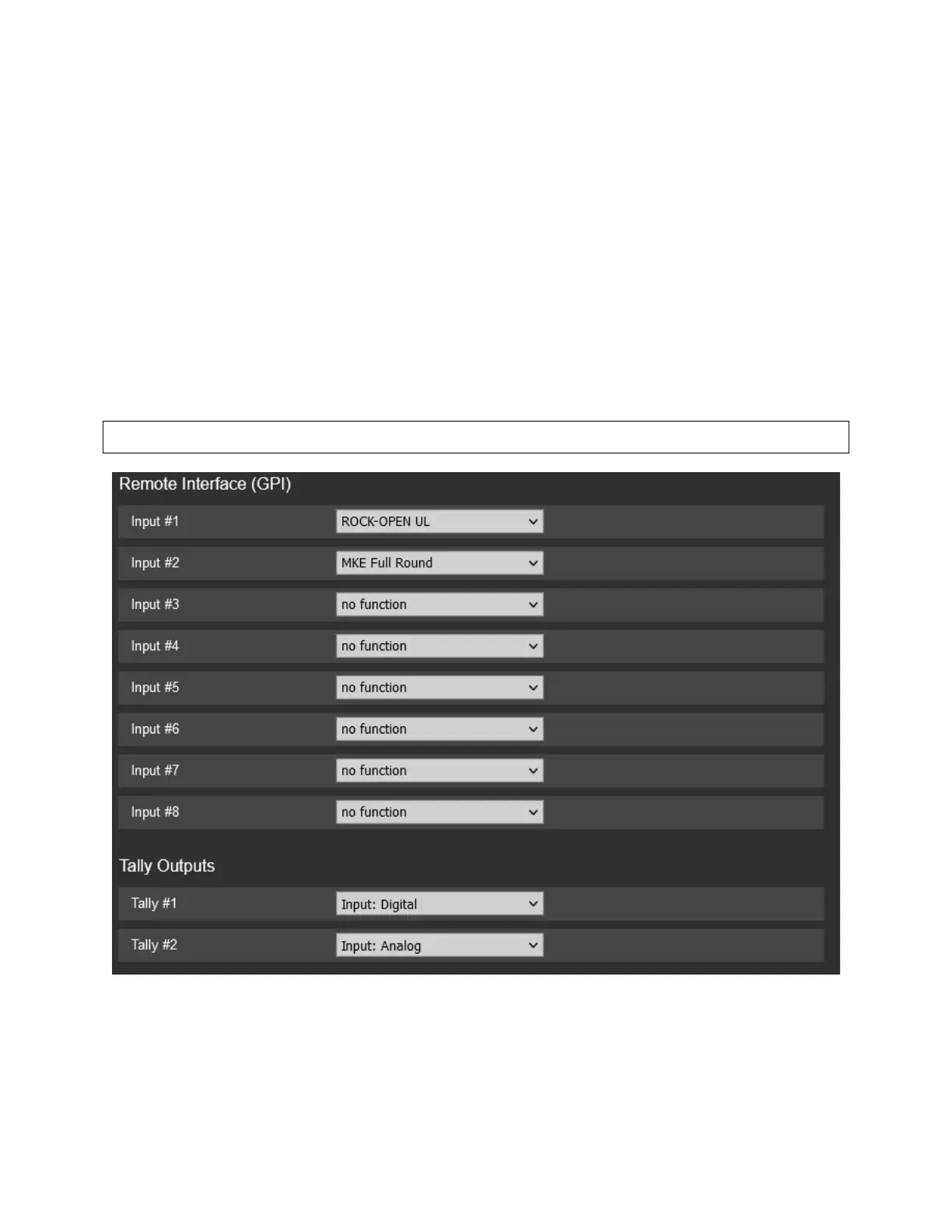

It also allows you to select inputs in case of failure. In the example above, Inputs #1 and #2 take different presets
which, when set up with a closure, can match different types of programming on your station. The Tally Outputs
allow the taking of a main and back up source. In the example above, Tally #1 takes the Digital AES input, while Tally
#2 triggers the Analog backup.
