3-60 Operation

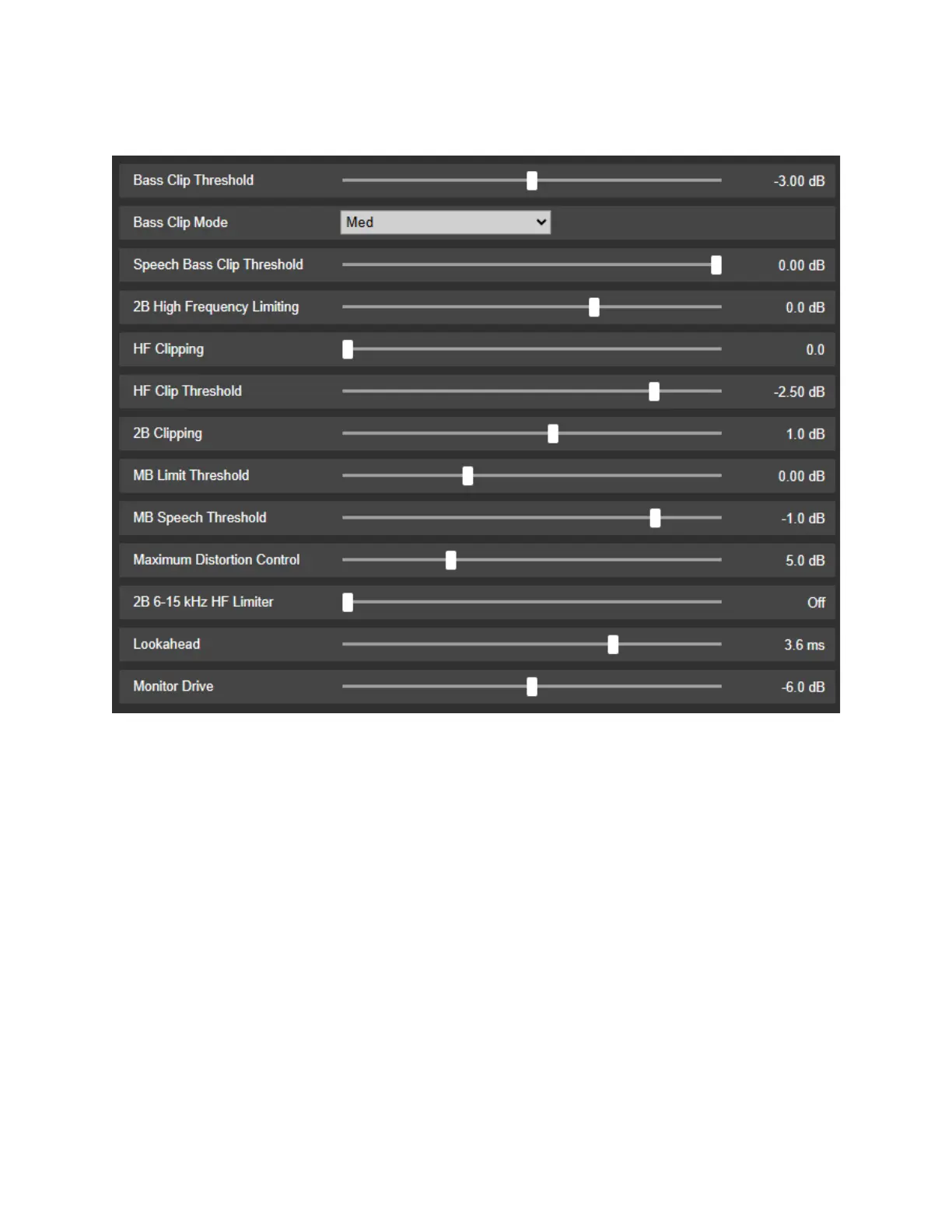

• BASS CLIP THRESHOLD – Sets the embedded bass clipper threshold in dB below the final clipper.
• BASS CLIP MODE – Sets the hardness of the embedded bass clipper. There are four modes: SOFT, MEDIUM,
HARD and LL HARD.
• SPEECH BASS CLIP THRESHOLD – Sets the hard bass clipper threshold when speech is detected.
• 2B (Two Band) HIGH FREQUENCY LIMITING – Sets the threshold of the high frequency limiter with reference to
the final clipper.
• HF (High Frequency) CLIPPING – Normally set to 0, this control increases brightness at the expense of intelligent
distortion management.
• HF (High Frequency) CLIP THRESHOLD – Sets the threshold of the multiband, distortion cancelled clipper in the
HF limiter.
• 2B (Two Band) CLIPPING – Sets the amount of peak limiting in the clipping system.
• MB (Multiband) LIMIT THRESHOLD – Sets the threshold of the clipping distortion controller with reference to
the final clipper.
