TECHNICAL MANUAL BLUE PAPER ORDU · OMX 202120 | ORBEA ORBEA | 21
EN

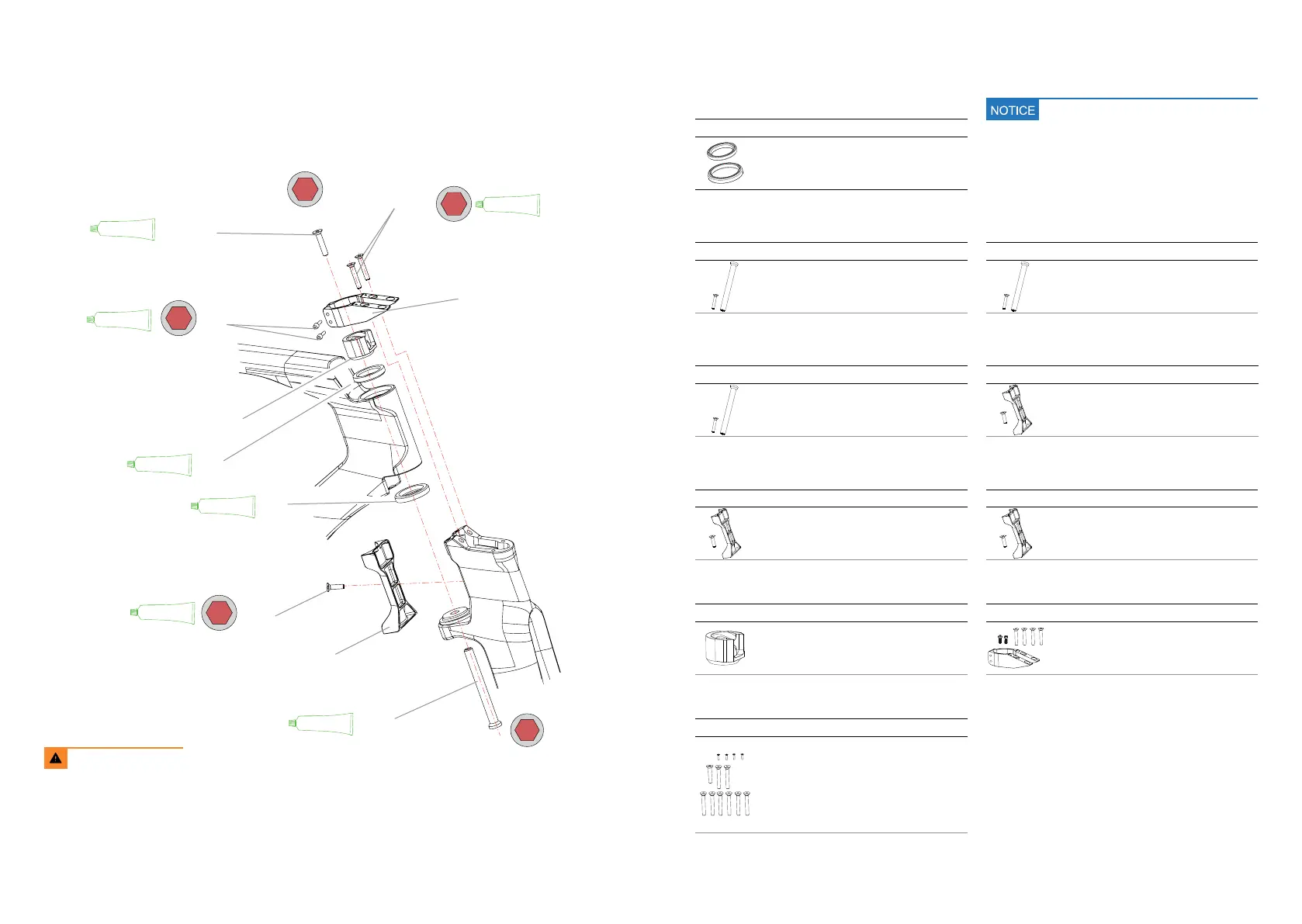

HEADSET AND STEM
ASSEMBLY AND SPARES
6
3
6 N.m
6
6 N.m
GREASE
GREASE
GREASE
GREASE
GREASE
4
6 N.m
3
4 N.m
GREASE
2.1/6.1
5.2
4
1.1
1.2
3.2
3.1
2.2
5.3/6.2
5.1
Always follow the recommended
torque settings.
01
ORDU HEADSET BEARINGS KIT
ART Nº: X1720000 QTY.
1.1 UPPER BEARING 1" INTERN. CABLING
1
1.2 LOWER BEARING 1-1/8"
1
02
HINGE HEADSET AXLE KIT ORDU XS
(TCOGUK\GURGEKƂE
ART Nº: X1730300 QTY.
2.1 HEADSET PRELOAD BOLT M6x30
COUNTERSUNK
1
2.2 HINGE HEADSET AXLE 61mm
1
02
HINGE HEADSET AXLE KIT ORDU XL
(TCOGUK\GURGEKƂE
ART Nº: X1730900
QTY.
2.1 HEADSET PRELOAD BOLT M6x30
COUNTERSUNK
1
2.2 HINGE HEADSET AXLE 98mm
1
02
HINGE HEADSET AXLE KIT ORDU S/M-M/L
(TCOGUK\GURGEKƂE
ART Nº: X1730500 QTY.
2.1 HEADSET PRELOAD BOLT M6x30
COUNTERSUNK
1
2.2 HINGE HEADSET AXLE 61mm
1
03
STEERING LIMITER BLOCK ORDU XS
(TCOGUK\GURGEKƂE
ART Nº: X1740300 QTY.
3.1 STEERING LIMITER BLOCK ORDU XS
1
3.2 BOLT M4x12 COUNTERSUNK
1
03
STEERING LIMITER BLOCK ORDU XL
(TCOGUK\GURGEKƂE
ART Nº: X1740900 QTY.
3.1 STEERING LIMITER BLOCK ORDU XL
1
3.2 BOLT M4x12 COUNTERSUNK
1
05
ORDU OMX STEM
ART Nº: X1760000 QTY.
5.1 ORDU OMX STEM
1
5.2 BOLT M5x15
2
5.3 BOLT M5x30 COUNTERSUNK
2
03
STEERING LIMITER BLOCK ORDU S/M-M/L
(TCOGUK\GURGEKƂE
ART Nº: X1740500 QTY.
3.1 STEERING LIMITER BLOCK ORDU S/M-M/L
1
3.2 BOLT M4x12 COUNTERSUNK
1
04
HEADSET PRELOAD RING ORDU. INT. CABLING
ART Nº: X1750000 QTY.
HEADSET PRELOAD RING ORDU. INT.
CABLING
1
06
HANDLEBAR/STEM BOLT KIT ORDU OMX
ART Nº: X1770000 QTY.
6.1 H/SET PRELOAD BOLT M6x30
COUNTERSUNK
1
6.2 BOLT M5X30 COUNTERSUNK
4
6.3 HANDLEBAR M6 BOLT. W/ INTERNAL
THREAD
2
6.4 BRIDGE FIXING BOLT M6x35
2
6.5 BOLT M2.5x10 STEM COVER
4
GREASE
3
4 N.m
The headset axle and steering limiter block are
UK\G URGEKƂE 4GCF VJG CTVKENG FGUETKRVKQP VQ
order the correct component for your frame.
