Di2 and EPS compatibility
DI2 YES SEATPOST INTERNAL BATTERY ONLY
EPS YES. (V3 AND V4 INTERNAL BATTERY)
TT DISC BRAKE LEVERS NOT AVAILABLE
Cable routing
INTERNAL (BRAKES AND GEARS)
Through handlebar, extensions, bridge, frontpost, stem, headset and frame
Full sleeve
Internal front brake routing through fork blade
Front brake DISC ONLY. FLAT MOUNT*
Front rotor diameter MIN 140mm / MAX160mm (with adapter)
Rear brake DISC ONLY. FLAT MOUNT*
Rear rotor diameter MIN 140mm / MAX160mm
4GCTECNKRGTƃCVOQWPVƂZKPIDQNVNGPIVJ
(Chainstay height = 20mm)
Shimano = 33mm
Sram = 27mm
Bottle holder
1. AERO HOLDER AND BOTTLE (500ml) ORDU SPECIFIC
Standard holder and bottle compatible
Storage
TOOLBOX IN DOWNTUBE
Capacity for: 1 inner tube, 2 CO2 cartridges and CO2 adapter
Hydration systems compatibility
AFTERMARKET OPTIONS. BETWEEN EXTENSIONS
AND SADDLE RAILS***
Food storage compatibility AFTERMARKET OPTIONS. BETWEEN EXTENSIONS***
Mudguards compatible NO
Rack compatible NO
Kickstand compatible NO
Childseat compatible NO
Trailer compatible NO
Powermeter compatibility**
SRM: YES
POWER2MAX: YES
STAGES: YES
ROTOR POWER: YES
POWERBOX: YES
QUARQ: YES
SHIMANO: YES
UCI legal YES
* Not all calipers and rotors in the market are compatible with all frames.
#NNEQORQPGVUURGEKƂECVGFHTQO1TDGCJCXGDGGPVGUVGF(QTCHVGTOCTMGVQRVKQPUEJGEMEQORQPGPVGUFKOGPUKQPUCPFVQNGTCPEGU
befores purchasing.
** For other powermeters, consult the compatibility and dimensions with the manufacturer.
*** Consult the food and hydration systems characteristics with the manufacturer for their compatibility with Ordu OMX.

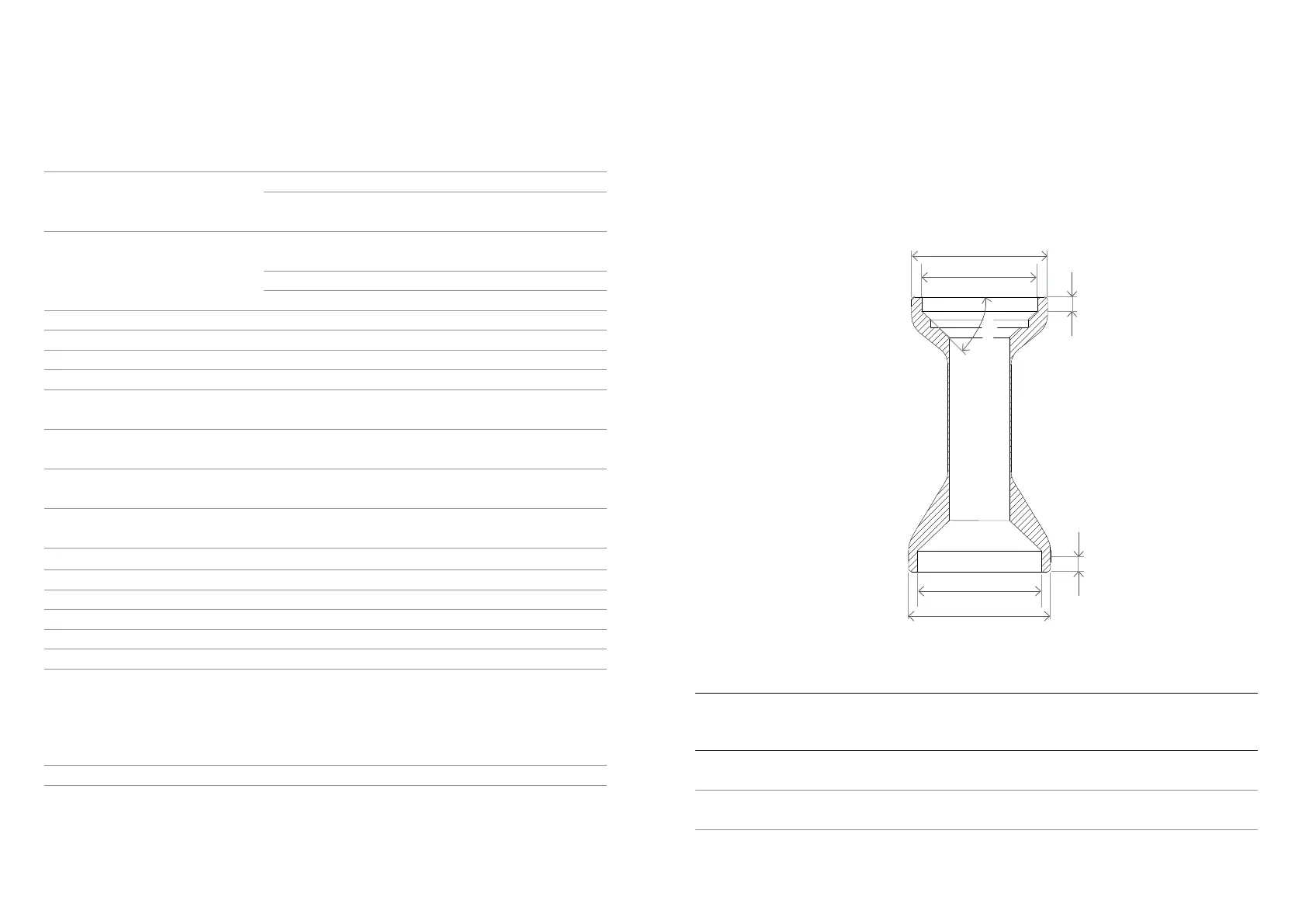

07 ASSEMBLY AND SPARES
HEADSET AND STEM
HEADTUBE MEASUREMENTS
Hinge type
headset
TYPE ID* OD**
Bearing
angle
Compression ring/
crown race
contact angle
FSA
CODE
Bearing
dimensions
TOP
Integrated
1”
38.2mm 46.2mm 45º 36º TH-373
Angular contact bearing
38x27.2x6.5mm
BOTTOM
Integrated
1-1/8”
41.2mm 46.2mm 45º 36º TH-873E
Angular contact bearing
41x30.2x6.5mm
* ID: Internal headtube diameter.
** OD: External headtube diameter.
HEADSET SPECIFICATIONS
Ø 38.2
Ø 46.2
Ø 46.2
Ø 41.2
4.7
45º
6.8
