TECHNICAL MANUAL BLUE PAPER ORDU · OMX 202124 | ORBEA ORBEA | 25
EN

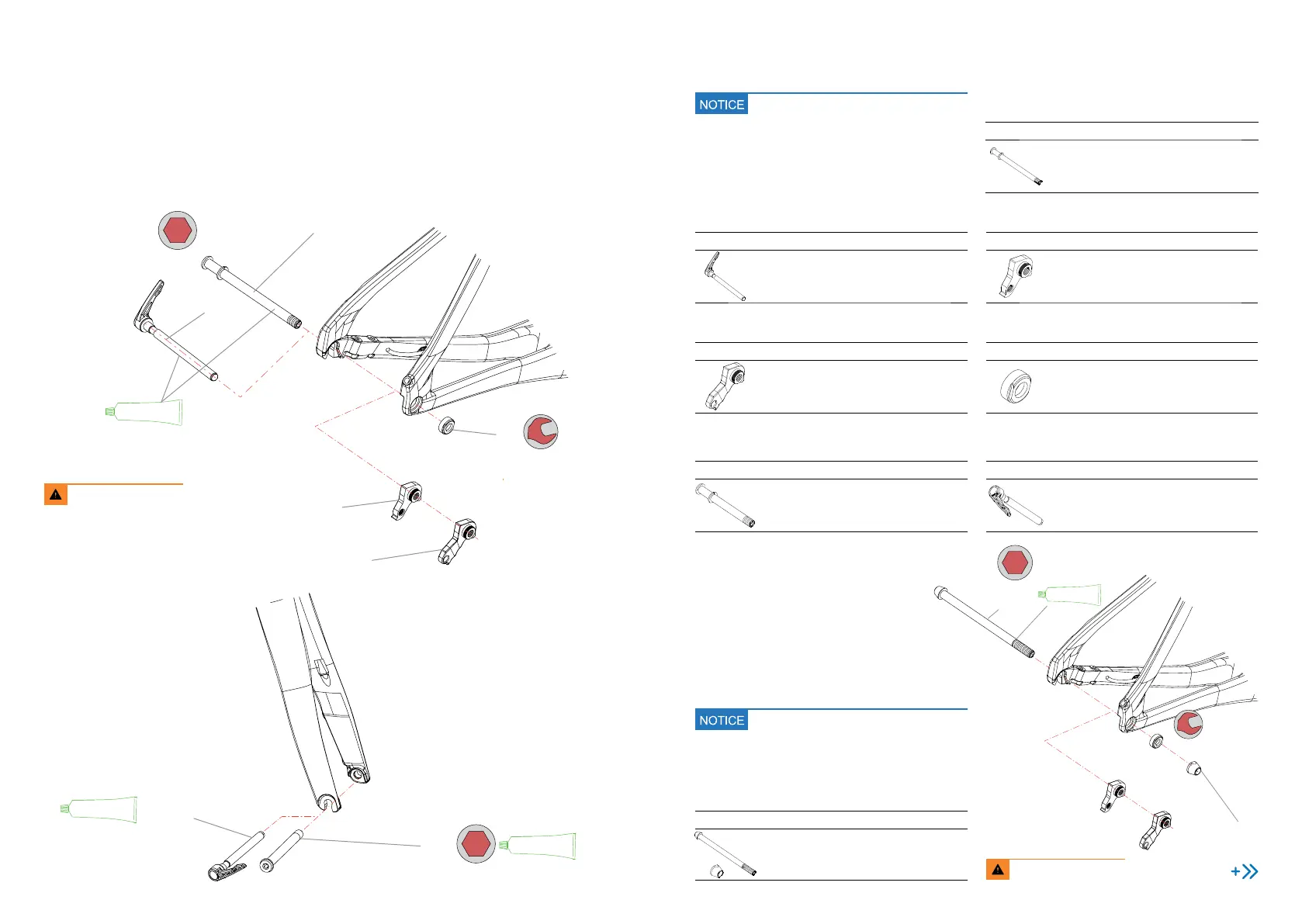

AXLES AND REAR DERAILLEUR
REAR AXLE
FRONT AXLE
6
10 N.m
GREASE
10 N.m
7
7A
8
9
10
6
10 N.m
6
GREASE
GREASE
11A
11
10 N.m
Always follow the recommended
torque settings.
07
THRU-AXLE ROAD 12x165mm LITE DOUBLE LEAD
THREAD PITCH 2P1.0x15mm
ART Nº: X0510000 QTY.
7.1 AXLE ROAD 12x165x2P1.0x15mm LITE
1
7.2 AXLE WASHER 12mm
1
08
REAR DERAILLEUR HANGER STANDARD ROAD 20 X12
ART Nº: X0510000 QTY.
8.1 DER. HANGER ROAD 20 STD X12
1
8.2 BOLT M4x12
The bolt is not used on Ordu OMX
1
10
M18 DER. HANGER NUT X12 ROAD 20
ART Nº: X0490000 QTY.
M18 DER. HANGER NUT X12 ROAD 20
1
11A
MAVIC SPEED RELEASE AXLE 12x100mm
ART Nº: X0550000 QTY.
MAVIC SPEED RELEASE AXLE 12x100mm
1
09
REAR DERAILLEUR HANGER DIRECT MOUNT ROAD 20 X12
ART Nº: X0480000 QTY.
9.1 DER. HANGER ROAD 20 DM X12
1
9.2 BOLT M4x12
The bolt is not used on Ordu OMX
1
11
THRU-AXLE ROAD 12X119mm LITE DOUBLE LEAD
THREAD 2P1.0x13mm
ART Nº: X0540000 QTY.
11.1 AXLE ROAD 12x119x2P1.0x13mm LITE
1
11.2 AXLE WASHER 12mm
1
07A
MAVIC SPEED RELEASE AXLE 12x142mm
ART Nº: X0520000 QTY.
MAVIC SPEED RELEASE AXLE 12x142mm
1
Ordu OMX is only compatible with Mavic
Speed Release standard thru-axles with a
double-lead 2P1.0 thread pitch for faster
wheel changes. The use of axles with other
thread pitch will damage the frame.
To use your Ordu OMX on a trainer, a double-
lead 2Px1.0 thread pitch trainer axle must
be used. Installing axles with a different
thread pitch will damage the frame.
8 N.m
17
12.1
12.2
Always follow the recommended
torque settings.
TRAINER AXLES
COMPATIBILITY
12
TRAINER AXLE DOUBLE LEAD 2P1.0x35mm THREAD
ART Nº: X0560000 QTY.
12.1 TRAINER AXLE 12x183x2P1.0x35mm
1
12.2 TRAINER AXLE NUT 12mm
1
6
10 N.m
GREASE
8 N.m
17
