TECHNICAL MANUAL BLUE PAPER ORDU · OMX 202126 | ORBEA ORBEA | 27
EN

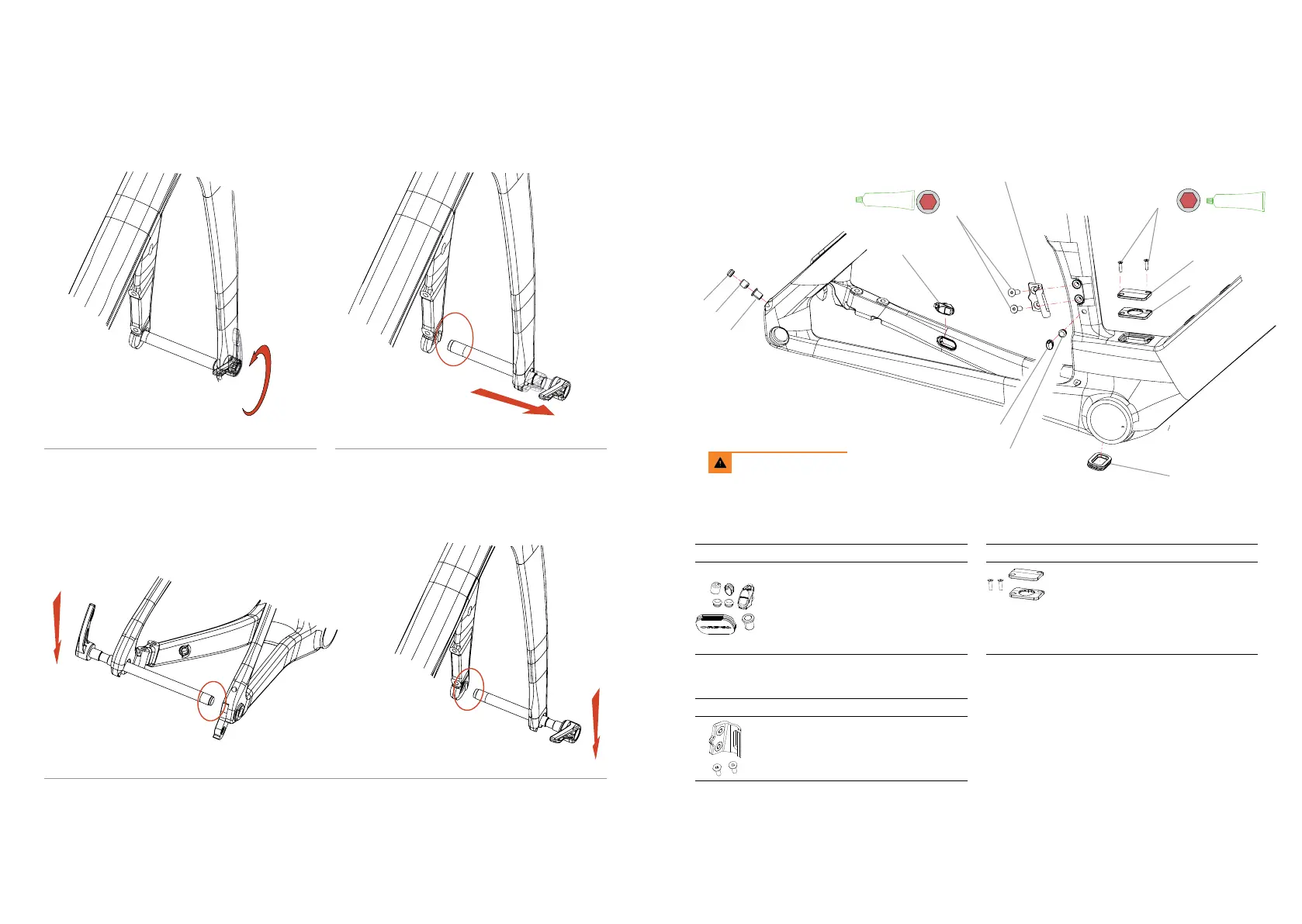

SPEED REALEASE AXLES USE
1. Turn the lever counter clock-wise. 2. Pull from the axle until it disengages from the left
dropout (from axle) or the right dropout (rear axle).
3. Remove the wheel pulling downwards.
CHAINSTAYS AND BOTTOM BRACKET
13
FRAME CABLEGUIDE/GROMMETS ORDU OMX
ART Nº: X1780000 QTY.
13.1
BLIND GROMMET D8 REAR DER.
ETAP / FRONT DER. MECH-ETAP
2
13.2 RUBBER GROMMET DI2 D8 FRONT DER. 1
13.3 GROMMET DI2 D8 FRONT DER. 1
13.4 ALLOY C/GUIDE REAR DER, MECHAN. 1
13.5 BB BOTTOM COVER 1
13.6 CABLEGUIDE CLIP C/STAY 1
14
DOWNTUBE COVER KIT
ART Nº: X0590000 QTY.
14.1 DI2 JUNCTION COVER DT 1
14.2 TAPA TD ETAP/MECÁNICO 1
14.3 BOLT M3x12 2
15
FRONT DERAILLEUR HANGER ORDU OMX
ART Nº: X1790000 QTY.
15.1 FRONT DER. HANGER ORDU OMX 1
15.2 BOLT M5x16 COUNTERSUNK 2
3
5 N.m
2
3 N.m
GREASE
GREASE
13.1
13.1
13.5
13.3
13.4
13.6
13.2
15.2
15.1
14.3
14.2
14.1
Always follow the recommended
torque settings.
