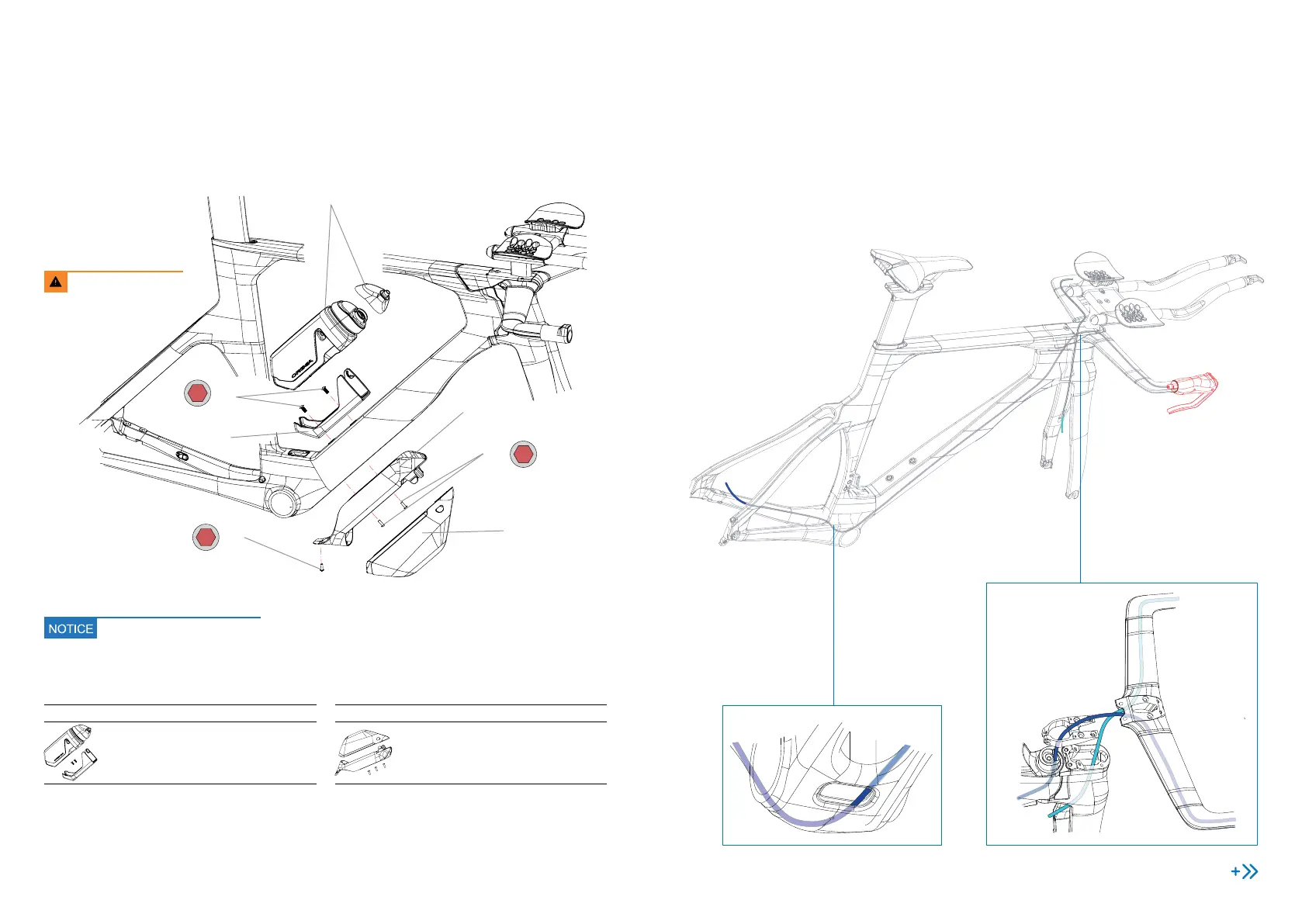

AERO BOTTLE AND TOOLBOX
3
6 N.m
2.5
4 N.m
2.5
4 N.m
40.1
41.1
41.3
41.2
41.3
40.3
40.2
40
AERO BOTTLE 500ml+HOLDER ORDU OMX KIT
ART Nº: X2000000 QTY.
40.1 AERO BOTTLE 500ml 1
40.2 BOTTLE HOLDER AERO ORDU OMX 1
40.3 BOLT M5x12 BOTTLE HOLDER 2
41
TOOL BOX KIT ORDU OMX
ART Nº: X2010000 QTY.
41.1 TOOL BOX BASE ORDU OMX 1
41.2 TOOL BOX COVER ORDU OMX 1
41.3 BOLT M4x10 3
Ordu is compatible with standard
bottle cages.
Always follow the recommended
torque settings.
08 CABLE ROUTING
CABLE ROUTING. MECHANICAL ASSEMBLIES
BRAKE HOSES
