TECHNICAL MANUAL BLUE PAPER ORDU · OMX 202132 | ORBEA ORBEA | 33
EN

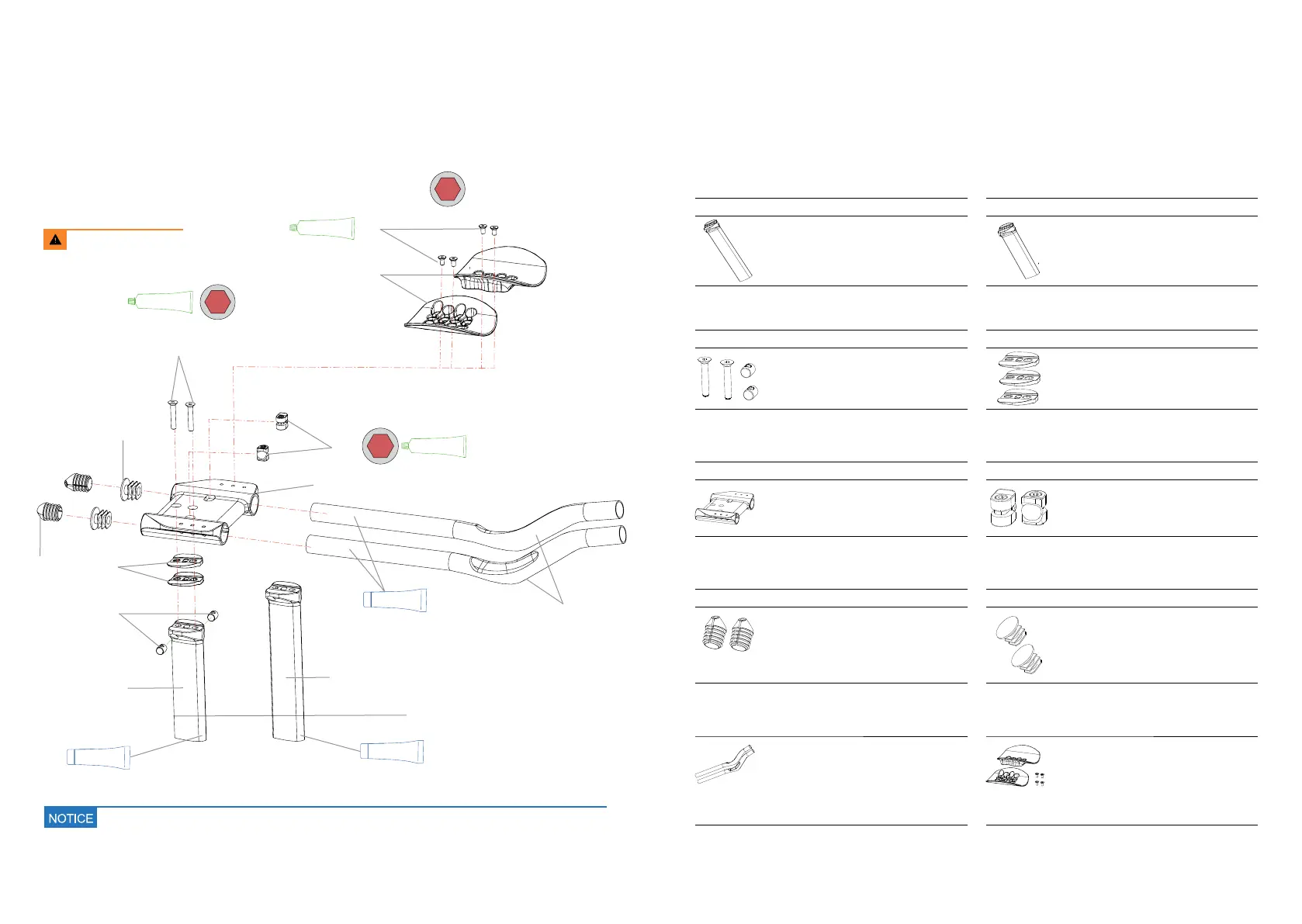

BRIDGE AND EXTENSIONS
30
FRONT POST CARBON ORDU OMX 200mm (M/L-XL)
ART Nº: X1932000 QTY.
FRONT POST CARBON ORDU OMX 200mm
(M/L-XL)
1
32
BRIDGE FIXING BARREL NUT KIT ORDU OMX
ART Nº: X1940000 QTY.
32.1 FRONT POST BARREL NUT 2
32.2 BOLT M6x35 COUNTERSUNK 2
34
EXTENSIONS BRIDGE 22.2 mm CARBON ORDU OMX
REVERSIBLE
ART Nº: X1960000 QTY.
EXTENSIONS BRIDGE 22.2 mm CARBON
ORDU OMX REVERSIBLE
1
36
METRON TFA MECHANICAL & DI2 EXTENSIONS
GROMMETS
ART Nº: X1980000 QTY.
CABLE GROMMET DI2/ETAP BLIPBOX VISION
METRON TFA
2
Also available through FSA-vision distributor
Description: MS031 VISION HBTT TFA Rear PLUG
extension.
Nº ART.: 670-0282000110
38
VISION METRON CARBON TT EXTENSIONS AERO
JS-BEND 385mm
The metron JS-bend carbon extensions are available
through an FSA-metron distributor
Description: V3108 AERO EXTENSION JS-BEND L & R
Nº ART.: 670-0273000031
39
VISION ARM RESTS AND PADS V4055-56
The metron arm rests, bolts and pads are available
through an FSA-metron distributor
Arm rests description: V4055 & V4056 Armrest
Pad Plate L & R with bolts
Nº ART.: 670-0277000110
Pads description: MS032 Armrest Pad Left & Right
Nº ART.: 670-0278000110
31
FRONT POST CARBON ORDU OMX 150mm (XS-S/M)
ART Nº: X1931500 QTY.
FRONT POST CARBON ORDU OMX 150mm
(XS-S/M)
1
33
BRIDGE TILT WEDGE KIT ORDU
ART Nº: X1950000 QTY.
BRIDGE TILT WEDGE ORDU 3
35
EXTENSIONS CLAMPS KIT ORDU OMX
ART Nº: X1970000 QTY.
EXTENSION CLAMP ORDU OMX 2
37
BRIDGE BLIND PLUG KIT DI2/ETAP BLIPBOX
ART Nº: X1990000 QTY.
BRIDGE BLIND PLUG DI2/ETAP BLIPBOX 2
3
5 N.m
FIBER CARBON GRIP
FIBER CARBON GRIP
FIBER CARBON GRIP
39
32.2 / 6.4
37
36
33
32.1
31
30
38
34
35
39
4
6 N.m
GREASE
Min. insert: 40mm
3
4 N.m
GREASE
4GCFVJG#FLWUVOGPVQHƂVVKPIGNGOGPVUUGEVKQPQHVJKUOCPWCNVQMPQYCDQWVVJGDTKFIGGZVGPUKQPUCPF
base handlebar adjustment options on Ordu OMX.
ISO
Always follow the recommended
torque settings.
GREASE
