TECHNICAL MANUAL BLUE PAPER ORDU · OMX 202122 | ORBEA ORBEA | 23
EN

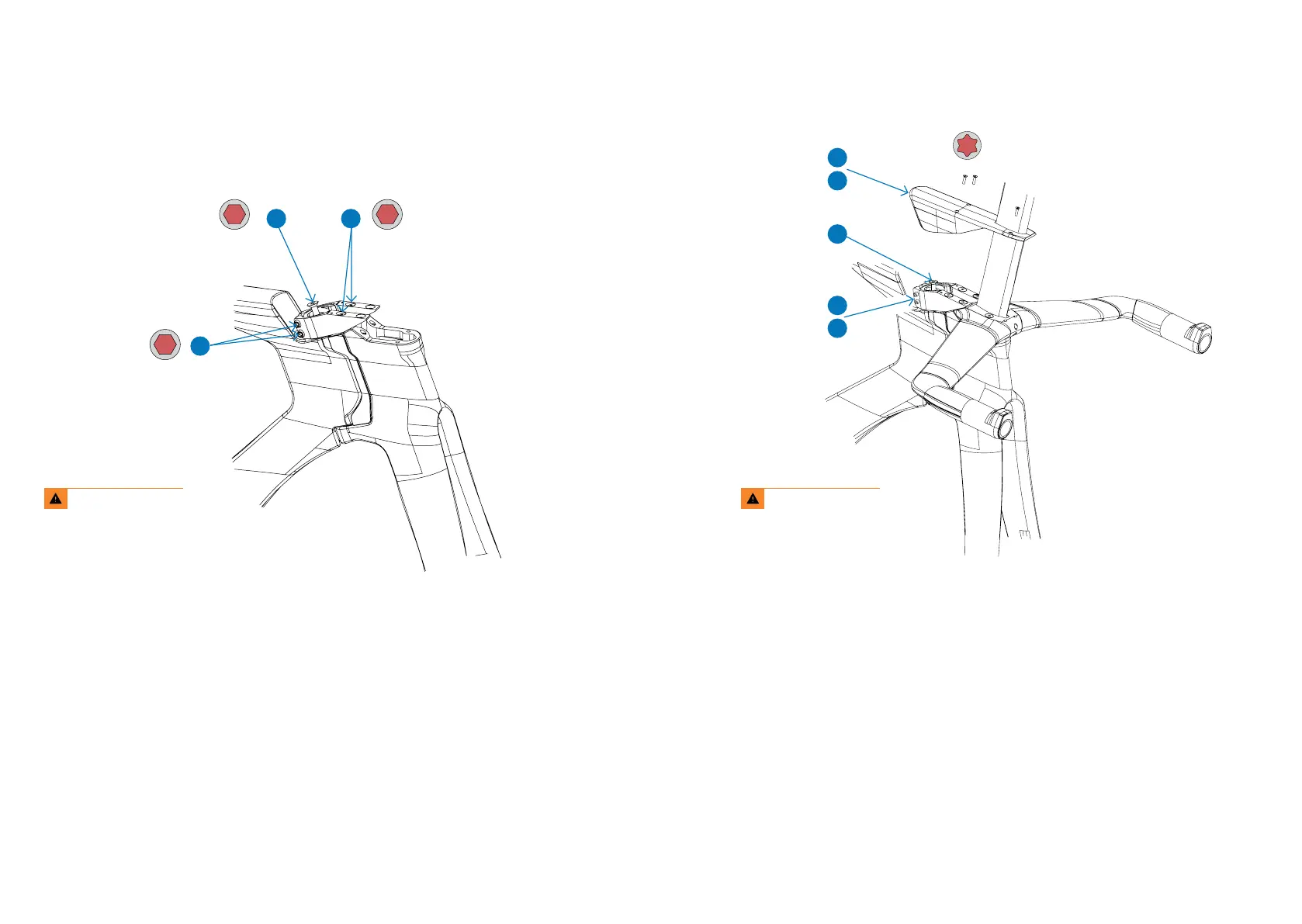

HEADSET ADJUSTMENT
4
6 N.m
12
3
HEADSET ADJUSTMENT.
AFTER FORK ASSEMBLY
 (KZVJGUVGOVQVJGHQTMYKVJVJGƂZKPIDQNVUVQUVQRVJG
stem from turning when adjusting the headset.
2. Adjust the headset preload bolt until there is no play in
the headset and it turns smoothly.
3. Fix the stem to the preload ring.
REGULAR HEADSET ADJUSTMENT
1. Remove the stem cover to access the headset adjust-
ment bolts.
 .QQUGPVJGUVGOƂZKPIDQNVUVQVJGEQORTGUUKQPTKPI
3. Adjust the headset preload bolt until there is not play in
the headset and it turns smoothly.
 6KIJVGPVJGUVGOƂZKPIDQNVUVQVJGRTGNQCFTKPI
5. Install the stem bover.
Always follow the recommended
torque settings.
1
5
3
2
4
Always follow the recommended
torque settings.
0.5 N.m
1.5
3
6 N.m
3
4 N.m
