Orbea ORDU OMX User Manual

TECHNICAL MANUAL BLUE PAPER ORDU · OMX 202144 | ORBEA ORBEA | 45
EN
SADDLE POSITION
ADJUSTMENT ONTO
THE SEATPOST
SADDLE ANGLE
ADJUSTMENT
Ordu OMX allows the saddle clamp assembly to be posi-
VKQPGFKPVJTGGFKHHGTGPVƂZKPIRQKPVUOOCNQPIVJG
top of the seatpost head to reach the desired saddle offset.
The saddle rails clamp can also be positioned facing
forward or backwards into the assembly for further
adjustment.
Once the saddle is installed onto the desired position, its
angle can be adjusted as explained below:

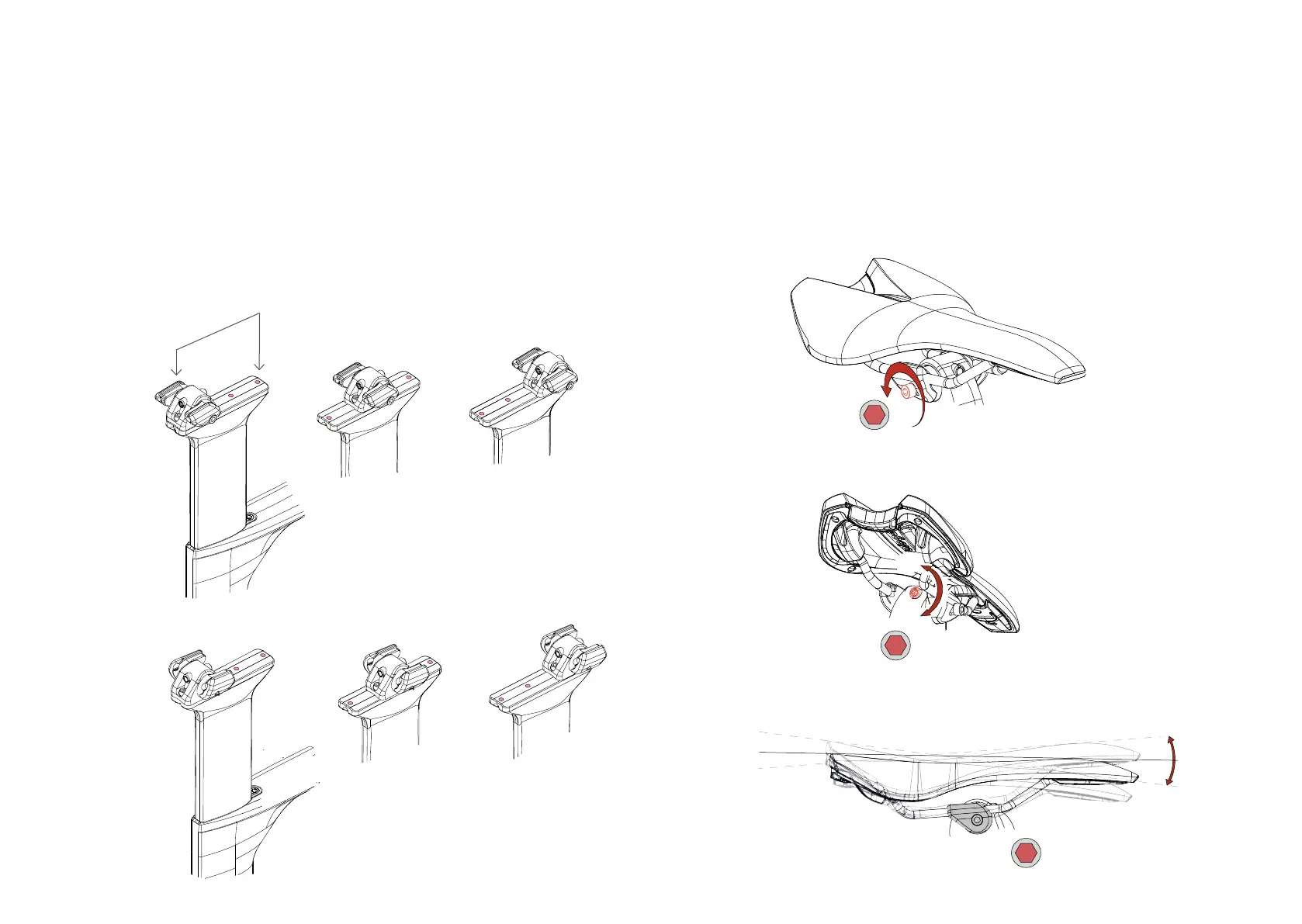

1. Three saddle positions. With
backwards saddle clamp.
2. Three saddle positions.
With forwards saddle clamp.
+
-
5
8 N.m
+10°
-10°
+
-
-
5
3
1. Lossen the M6x53 bolt.
2. Turn the bolt clockwise to rise the
saddle nose, and counter-clockwise
to lower it.
3. Finally, tighten the M6x53 bolt to
the recommended torque setting.
100mm
