TECHNICAL MANUAL BLUE PAPER ORDU · OMX 202140 | ORBEA ORBEA | 41
EN
1PEGVJGƂPCNRQUKVKQPQHVJGGZVGPUKQPUQPVQVJGDTKFIG
has been decided, it is possible to cut them and use the
blind rear bridge plugs for the cleanest possible look.
The blind bridge plugs are included with Ordu. Alterna-
tively, you can order them from Orbea. Consult the as-
sembly and spares sections of this manual to know the
article code.

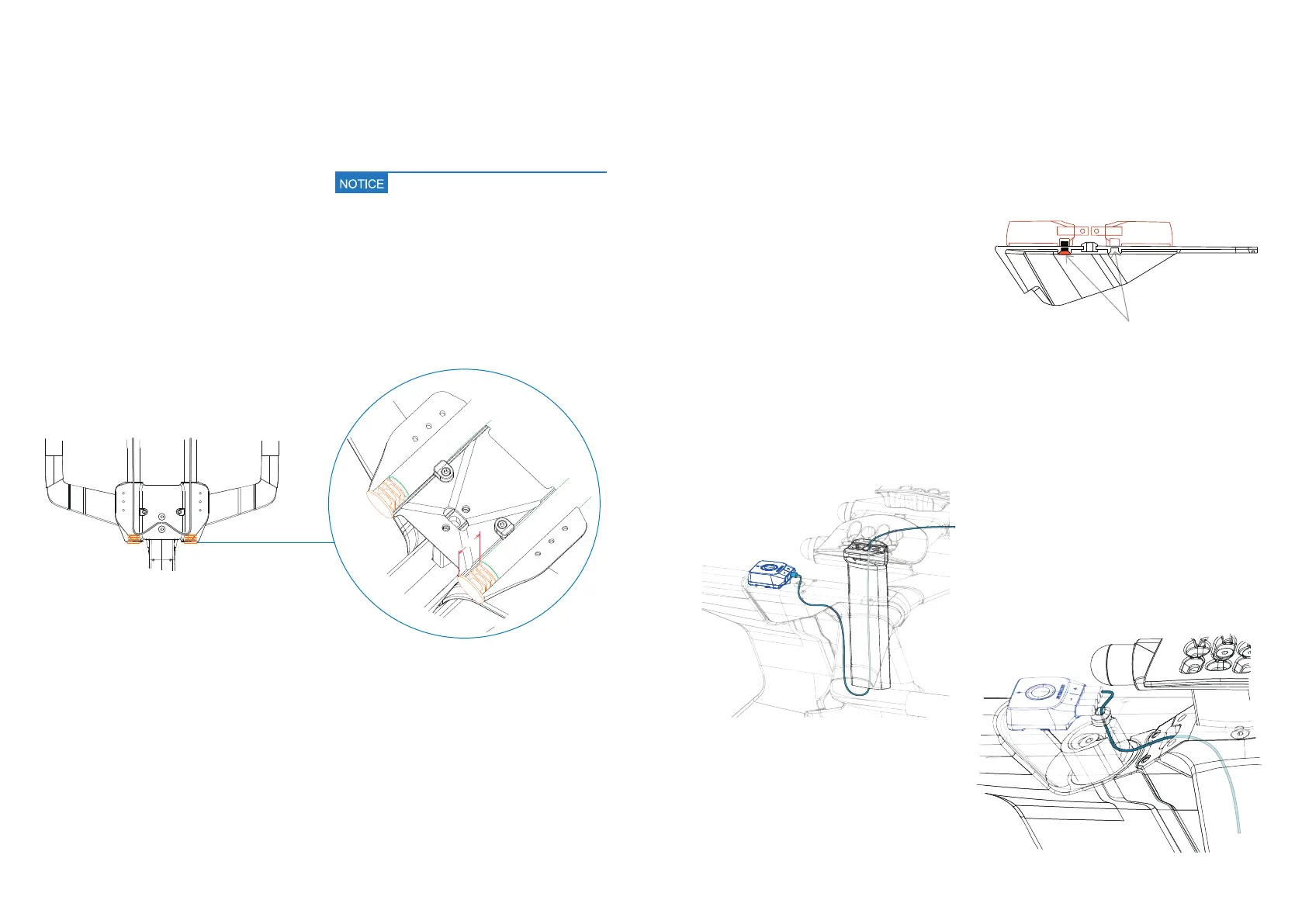

The extensions must be cut so their rear edge is 20 mm
away from the rear edge of the bridge to allow for the
electronic gear cable to leave the bridge channels and
enter the extensions interior and the installation of the
blind plug.
CUTTING THE EXTENSIONS
ON ELECTRONIC ASSEMBLIES.
USE OF THE BLIND BRIDGE PLUGS
BLIPBOX CABLE ROUTING TO THE BRAKE
LEVERS AND THE EXTENSIONS SWITCHS
Always take your bicycle to a authorized
Orbea dealer for the cutting of carbon com-
ponents.
4GCFVJG#FLWUVOGPVQHƂVVKPIGNGOGPVUUGE-
tion of this manual for the details about the
removal and installation of the front post,
bridge and extensions assembly.
20
To extensions
To base handlebar
Ordu allows for the installation of the Sram Blipbox junc-
tion for the use of Sram Etap TT levers.
For the installation of Blipbox it is necesary the use of
the mechanical assemblies stem cover (consult the as-
sembly and spares sections of this manual to know the
article code).
The mechanical assemblies stem cover is prepared for the
installation of the Blipbox mount bolt in two positions. Just
drill the hole of the preferred Blipbox position onto the
stem cover and use the central hole to route the cables
to the levers.
BLIPBOX JUNCTION (SRAM ETAP).
INSTALLATION AND CABLE ROUTING
Drill
