Oregon Harvester - Page 65

Guide Bar
Mechanical Timber Harvesting Handbook 60

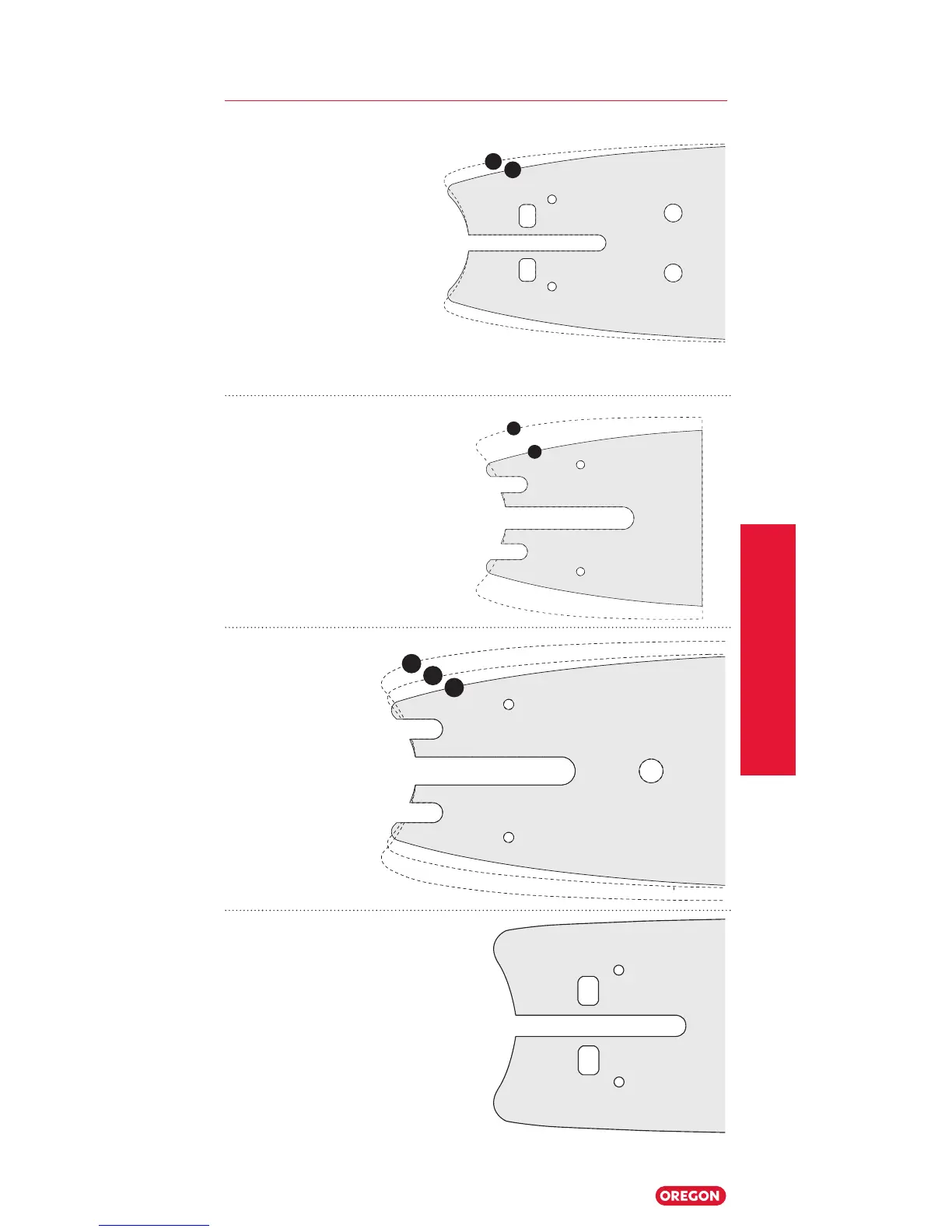

.404" Pitch Guide Bar Mounts
Q/R114
1
2
3
3
2
R
Q
Drive sprocket
tooth count:
Q: 11, 12, 13
R: 14, 15, 16
Dimensions:

.399" x
3.338"

.404" x
.555"

.435"
Q/S163
1
2
2
S
Q
Drive sprocket
tooth count:
Q: 11, 12, 13
S: 17, 18, 19
Dimensions:

.586" x
3.288"

.413" x
.696"
Q/R/S149
1
2
2
3
R
S
Q
Drive sprocket
tooth count:
Q: 11, 12, 13
R: 14, 15, 16
S: 17, 18, 19
Dimensions:

.586" x
3.288"

.413" x
.696"

.492"
Y104
1
2
2
Drive sprocket
tooth count:
13
Dimensions:

.394" (10
mm) x
3.338"

.555" x
.404"
