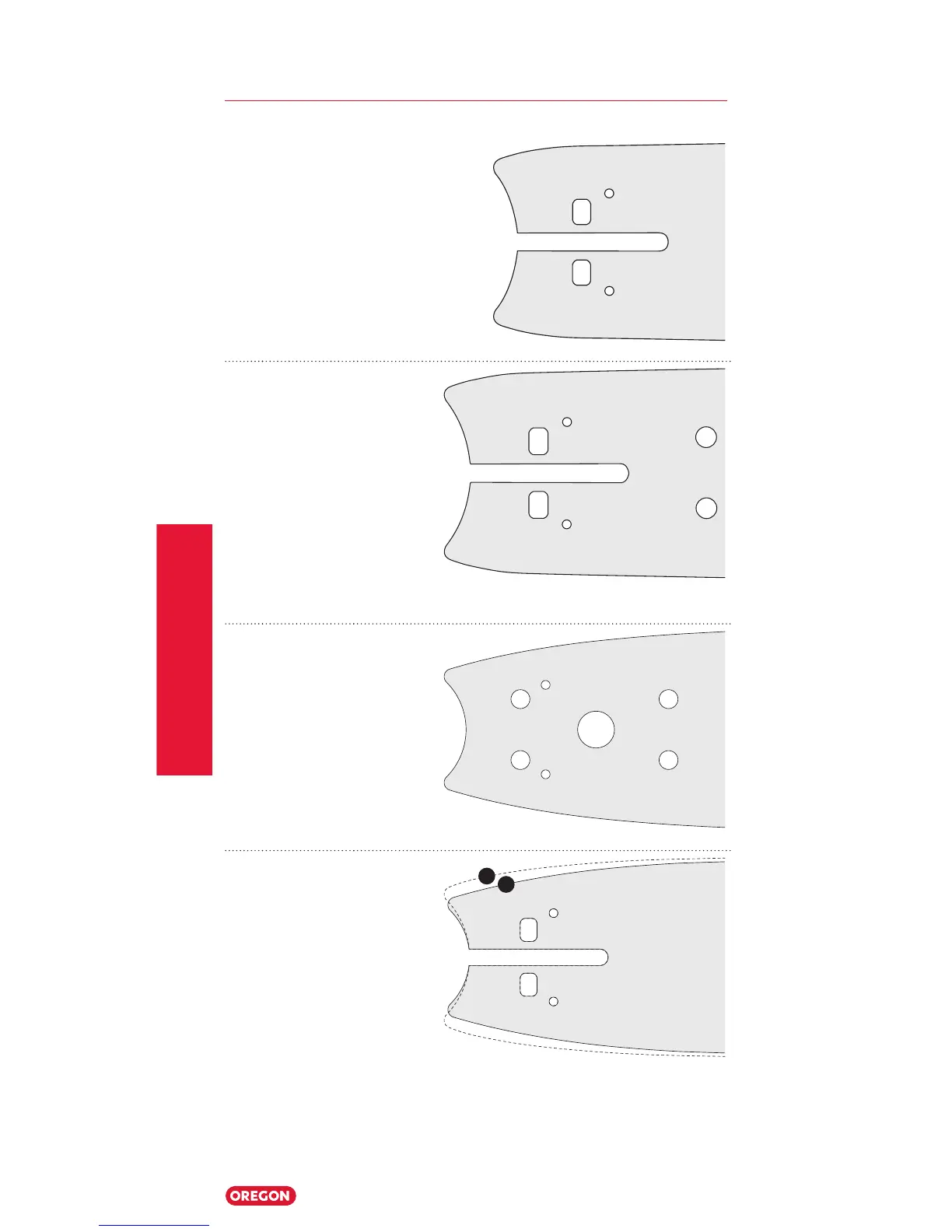

Guide Bar
59 Mechanical Timber Harvesting Handbook
N104
1
2
2
Drive sprocket
tooth count:
14, 15, 16
Dimensions:

.394" (10
mm) x
3.338"

.555" x
.404"
N114
1
2
2
3
3
Drive sprocket
tooth count:
14, 15, 16
Dimensions:

.394" (10
mm) x
3.338"

.555" x
.404"

.435"
Q003
1
1
1
1
2
Drive sprocket
tooth count:
11,12, 13
Dimensions:

.448"

.875"
Q/R104
1
2
2
R
Q
Drive sprocket
tooth count:
R: 11, 12, 13
Q: 14, 15, 16
Dimensions:

.399" x
3.338"

.404" x
.555"
.404" Pitch Guide Bar Mounts
