Oregon Harvester - Page 73

Guide Bar
Mechanical Timber Harvesting Handbook 68

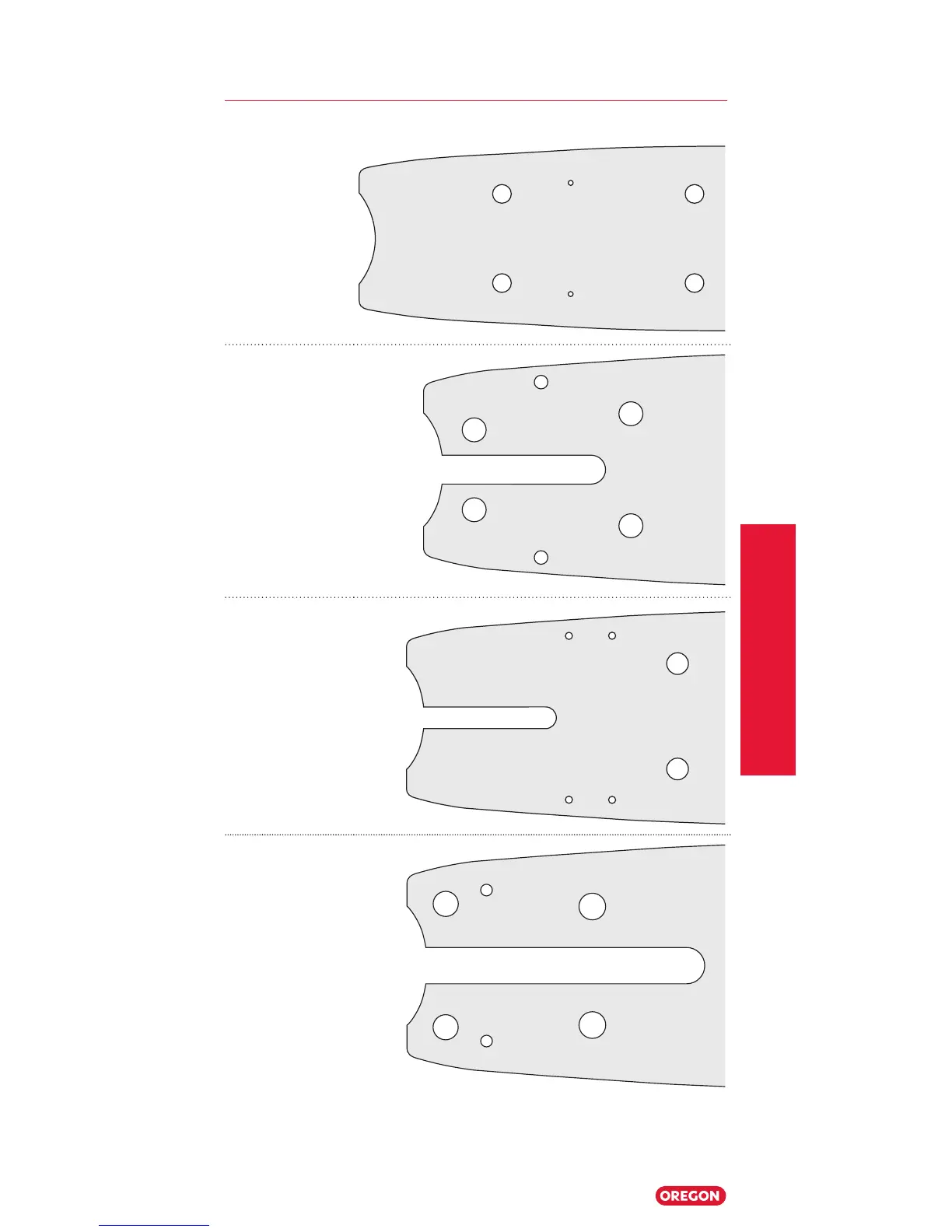

3/4" Pitch Guide Bar Mounts
T145
1
1
1
1
Drive sprocket
tooth count:
9, 10
Dimensions:

.570"
T146
1
2
2
2
2
Drive sprocket
tooth count:
9, 10
Dimensions:

.637" x
3.627"

.531"
T151
1
2
2
Drive sprocket
tooth count:
9, 10
Dimensions:

.535" x
3.226"

.531"
T152
1
2
3
3
2
Drive sprocket
tooth count:
9, 10
Dimensions:

.760"
x 5.910"

.562"

.531"
