Oregon Harvester - Page 75

Guide Bar
Mechanical Timber Harvesting Handbook 70

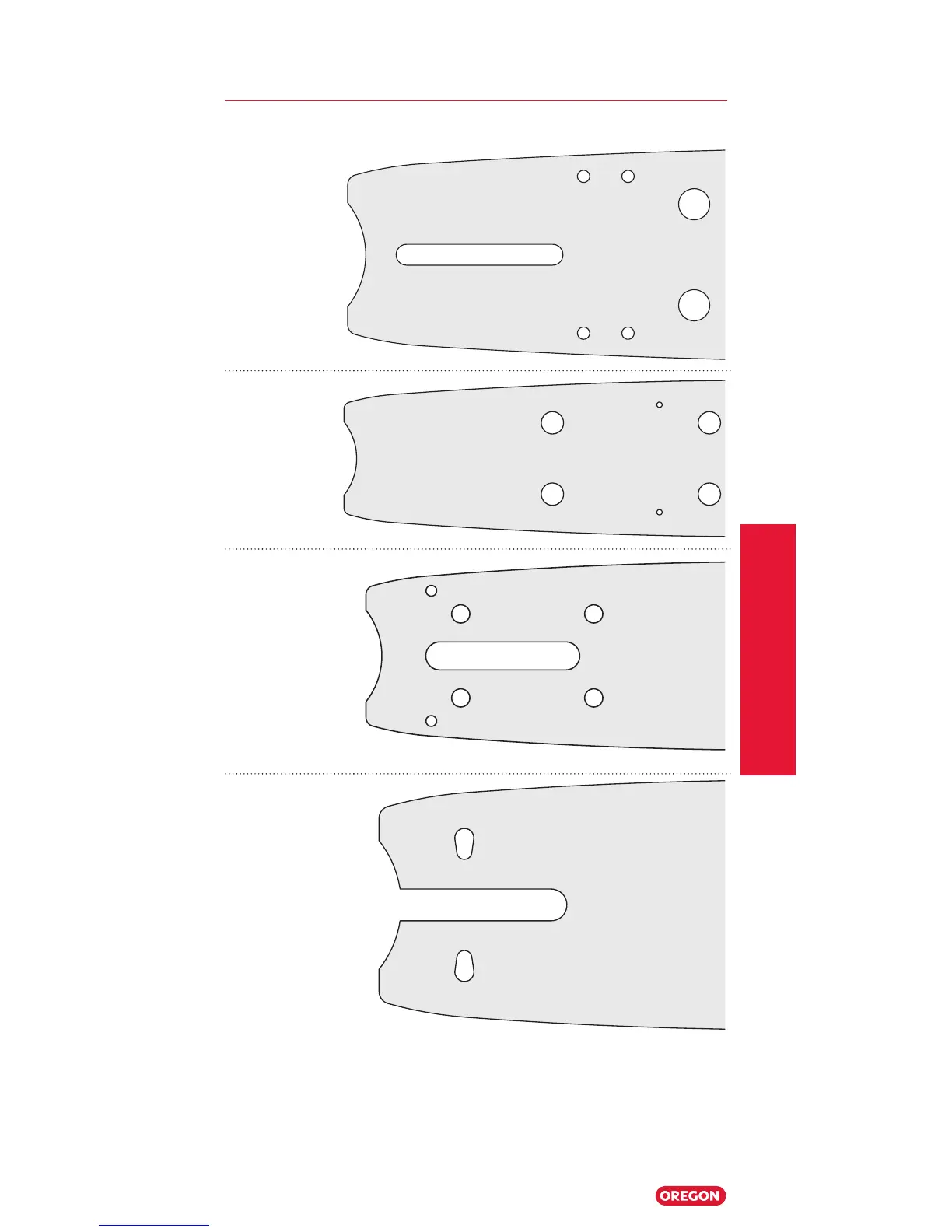

3/4" Pitch Guide Bar Mounts
T208
1
2
2
T208 3/4”
Drive sprocket
tooth count:
9, 10
Dimensions:

.515"
x 4.129"

.770"
T210
1
1
1
1
T210 3/4”
Drive sprocket
tooth count:
9, 10
Dimensions:

.782"
T217
1
2
2
2
2
T217
Drive sprocket
tooth count:
9, 10
Dimensions:

.787"
x 4.330"

.512"
T219
1
2
2
T219 3/4”
Drive sprocket
tooth count:
9, 10
Dimensions:

.635"
x 3.312"

.151"
radius
x .190"
radius
