ORGAPACK OR-H 20 A
Sealing
– Press the yellow button (7/1) with the right thumb
until the strap is cut off.

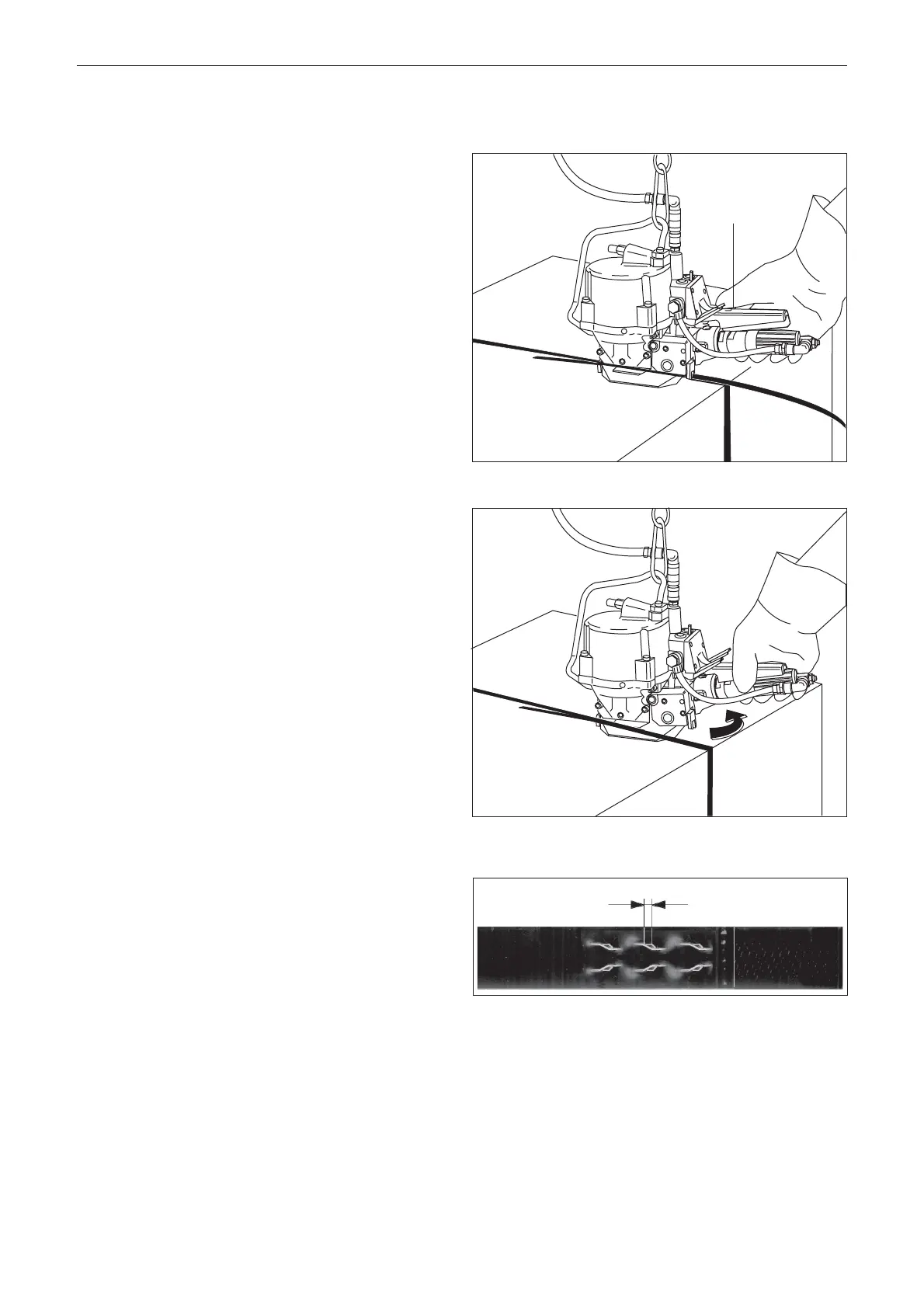

Fig. 7
Fig. 8
1
min. 1 mm (.039“)
– Raise the motor to the stop and swing the tool
away to the right.
Check of seal
To obtain the maximum seal efficiency, the notches
have to be cut properly into the straps and should
interlock at least 1 mm (.039").
If these notches are not correctly cut, the dies and the
die plate have to be replaced (see chapter 7.6).
The cut-off depth must be adjusted so that the lower
strap is not damaged. For adjusting the cut-off depth
(see chapter 7.3).
Fig. 9
