ORGAPACK OR-T 55
WARNING
Strap tensioning or strapping, danger of jamming and crushing
Do not place hands or other body parts between the strap and the packaged goods
during the strapping process. Ensure that there are no other persons in the hazard zone
(Section 2.4).
For an emergency stop in the case of danger (trapped person):
● To release the strap tension (before welding), press the tensioning lever against the
handle.
● After welding, cut the strap using a tool (strap cutter).
CAUTION
When being tensioned the strap may
break and whip out. Do not stand
in line with the strap while it is being
tensioned. Wear eye protection.

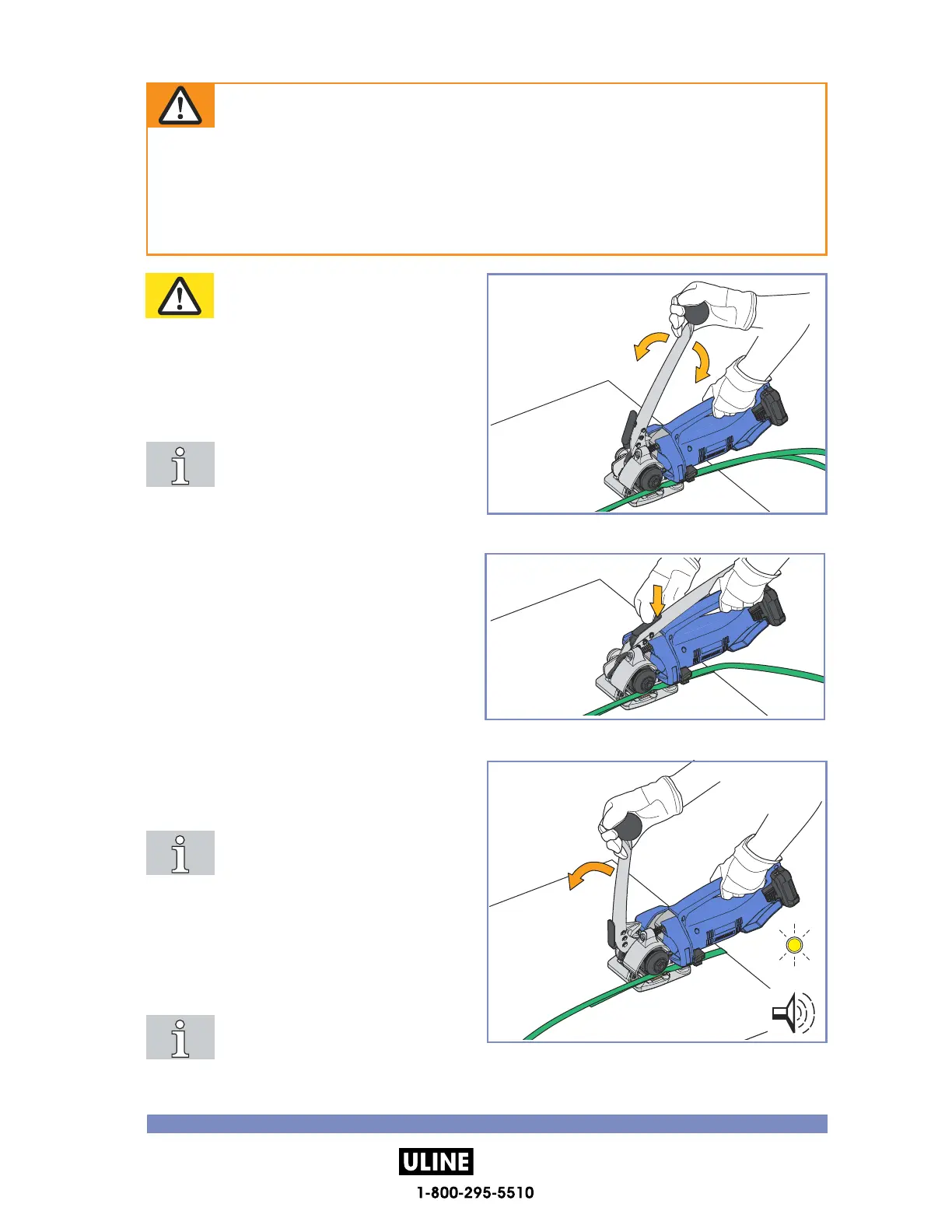

► Hold the tool by the handle with the left hand
and move the tension lever with the right
hand back and forward until the desired strap
tension is reached.
The maximal strap tension is adjustab-
le (Section 4.2). If the tool is used in a
dusty environement, it is recommen-
ded to clean the tool regularly. The tension wheel
in particular should be kept clean (Section 6.2).
► Bring back the tension lever to the interme-
diate position, push the black welding lever
towards the tensioning lever.
– Now the tool is ready for welding the
straps.
► Push the tensioning lever as far as it will go in
one movement. The left hand remains on the
handle of the unit to absorb the counterforce.
The straps are welded together and
the upper strap is cut o.
► Hold the tensioning lever in this position
(approx. 2 sec.) until the yellow LED on the
back of the tool goes out and the acoustic
signal sounds.
– If the yellow LED ashes on the back, the
cooling time is running.
LED ashing red: If the tensioning
lever is moved back too early during
the welding process (tool is blocked; remove battery and reinsert). If the charge status
display (section 4.1.3) is red, there is no welding, since a safe welding of the straps can no longer be
guaranteed with the remaining charge of the battery.
2 sec.
