5 Installation
−20−
How to install a load
• Using a coupling
Align the centerline of the motor (gearhead) output shaft with the centerline of the
load shaft.
• Using a belt
Adjust the motor (gearhead) output shaft to lie parallel with the load shaft and form
right angles between the output shaft/load shaft and the line connecting the centers
of both pulleys.
• Using a gear
Adjust the motor (gearhead) output shaft to lie parallel with the gear shaft and allow
the output shaft to mesh correctly with the centers of the gear teeth.

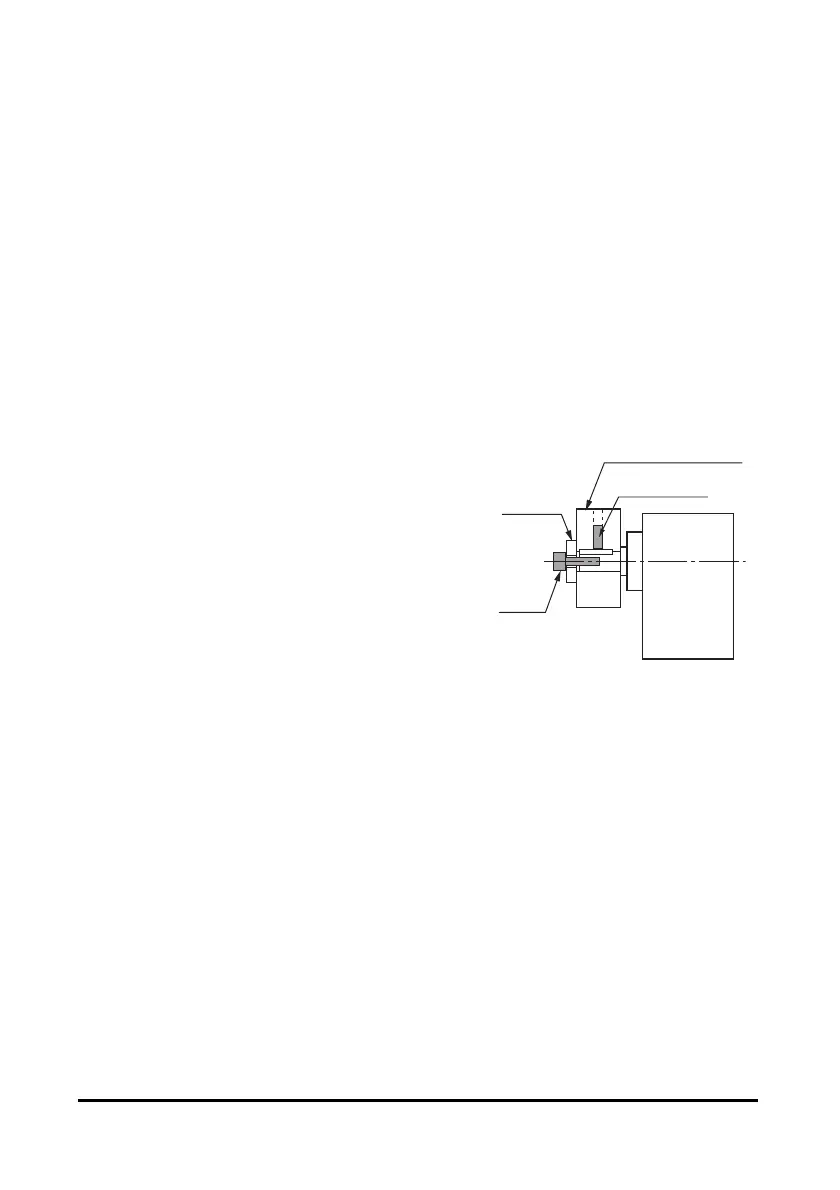

• When using the output axis tip screw hole of a gearhead
Use a screw hole [M6, effective depth 12 mm
(0.47 in.)] provided at the tip of the output
shaft of GFS5G as an auxiliary means for
preventing the transfer mechanism from
disengaging.
Fixed screw
Screw
Spacer
Transmission parts
The example of
output axis tip screw hole use
