CO
2100
SAMPLE
SYSTEMS
We
designed
the
CO
2100
to
be
more
than
just
a
standard
amplifier.
The
CO
2100
shares
ail
of
the
standard
features
available
with
the
CO
230
and
the
CO
260.
In
addition,
the
CO
2100's
Stereo/Mono
button
allows
flexibility
in
system
design.
The
CO
2100
performs
similarly
to
the
CO
230
and
CO
260
when
set
to
stereo.
COSND
CO
MID
AND
TWEETER
SET
COIND
Fig.
88
and
Fig.
9B
show
the
input
connections
of
the
CO
2100
up
close
to
clarify
how
it
is
used
in
each
system.
FULL
RANGE
SYSTEM

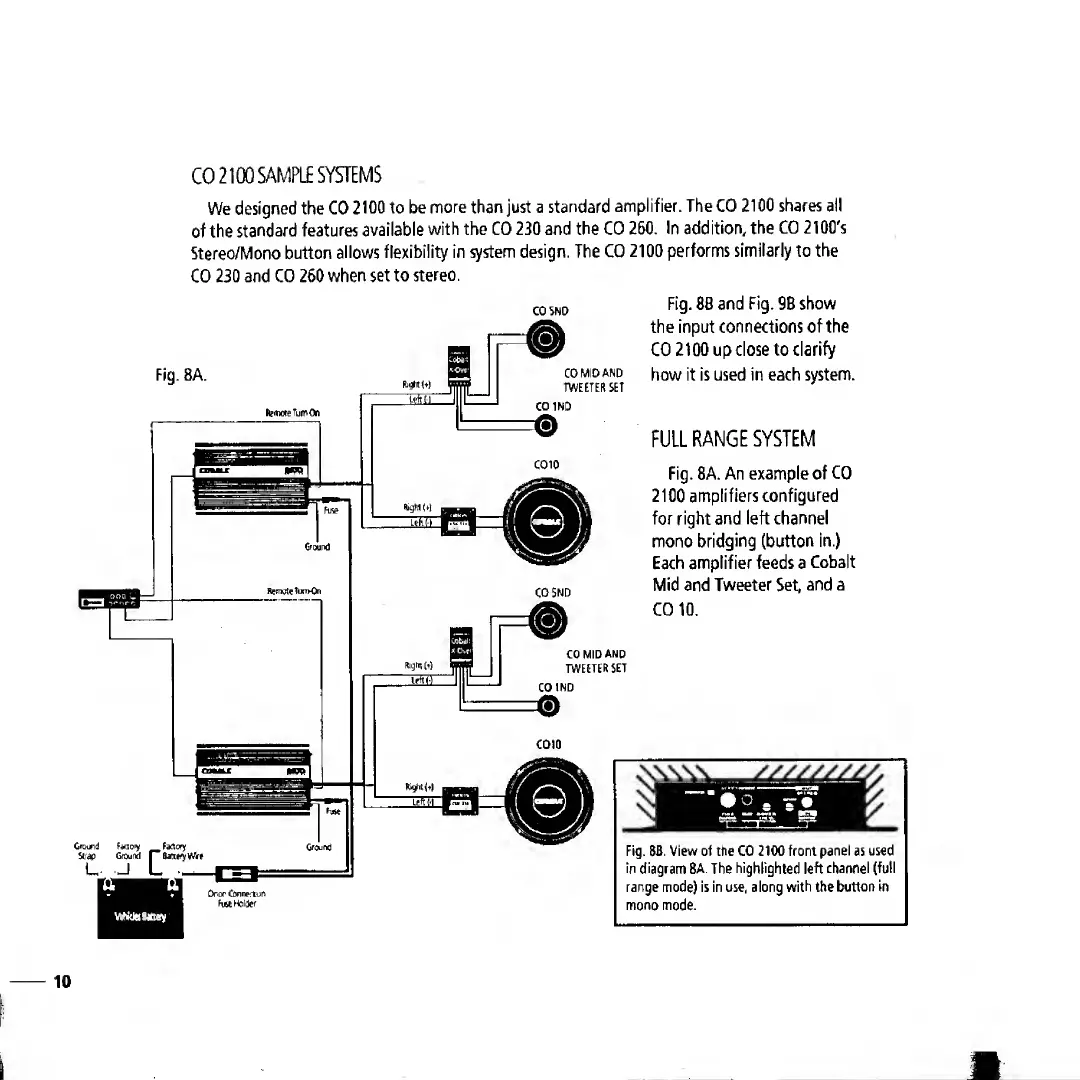

Fig.
8A.
An
example
of
CO
2100
amplifiers
configured
for
right
and
left
channel
mono
bridging
(button
in.)
Each
amplifier
feeds
a
Cobalt
Mid
and
Tweeter
Set,
and
a
CO
10.
Fig.
SB.
View
of
the
CO
2100
front
panel
as
used
in
diagram
BA.The
highlighted
left
channel
(full
range
mode)
is
In
use,
along
with
the
button
in
mono
mode-
10
