MECHANICAL INSTALLATION
1. Select a mounting location. Make sure you observe the General Precautions listed above.
2. Position the amplifier and use either a telt-tip pen or spring-loaded center purxh tool to mark locations for the mount¬
ing holes.
3. Drill a small pilot hole at each marked location.
CAimON: 00 NOT DRHJL INTO FUEL TANK, FUEL UNES, BRAKE LINES, (UNDER CHASSIS), OR THROUGH ANY
ELECTRICAL WIRING.
4. Mount the amplifier in the desired location and securely tighten the four self-tapping screws, as shown in Fig. 13.

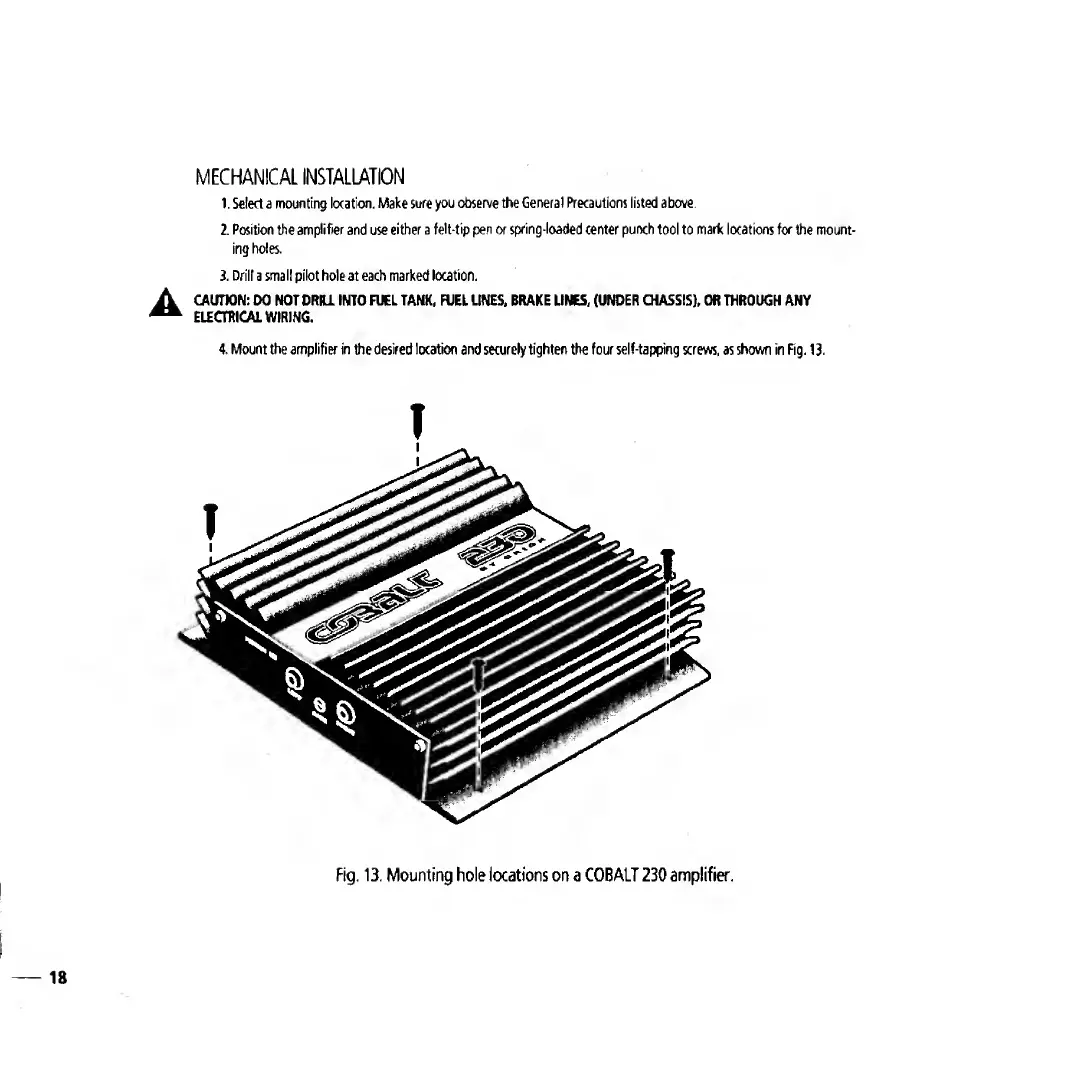

Fig. 13. Mounting hole locations on a COBALT 230 amplifier.
