Orion COBALT Series Installation Manual

INPUl^ CONNECTIONS AND CONTROLS
As snown in Hg. iA, the LU ^lUU input conneaions contain a mONO/STEREO button. The LEFT
INPUT and RIGHT INPUT connector functions are standard when the MONO/STEREO button is set on
STEREO. When the MONO/STEREO button is set on MONO the LEFT INPUT channel is full range
mono, and the RIGHT INPUT channel is low pass only mono.
.\\\\\ ////////.

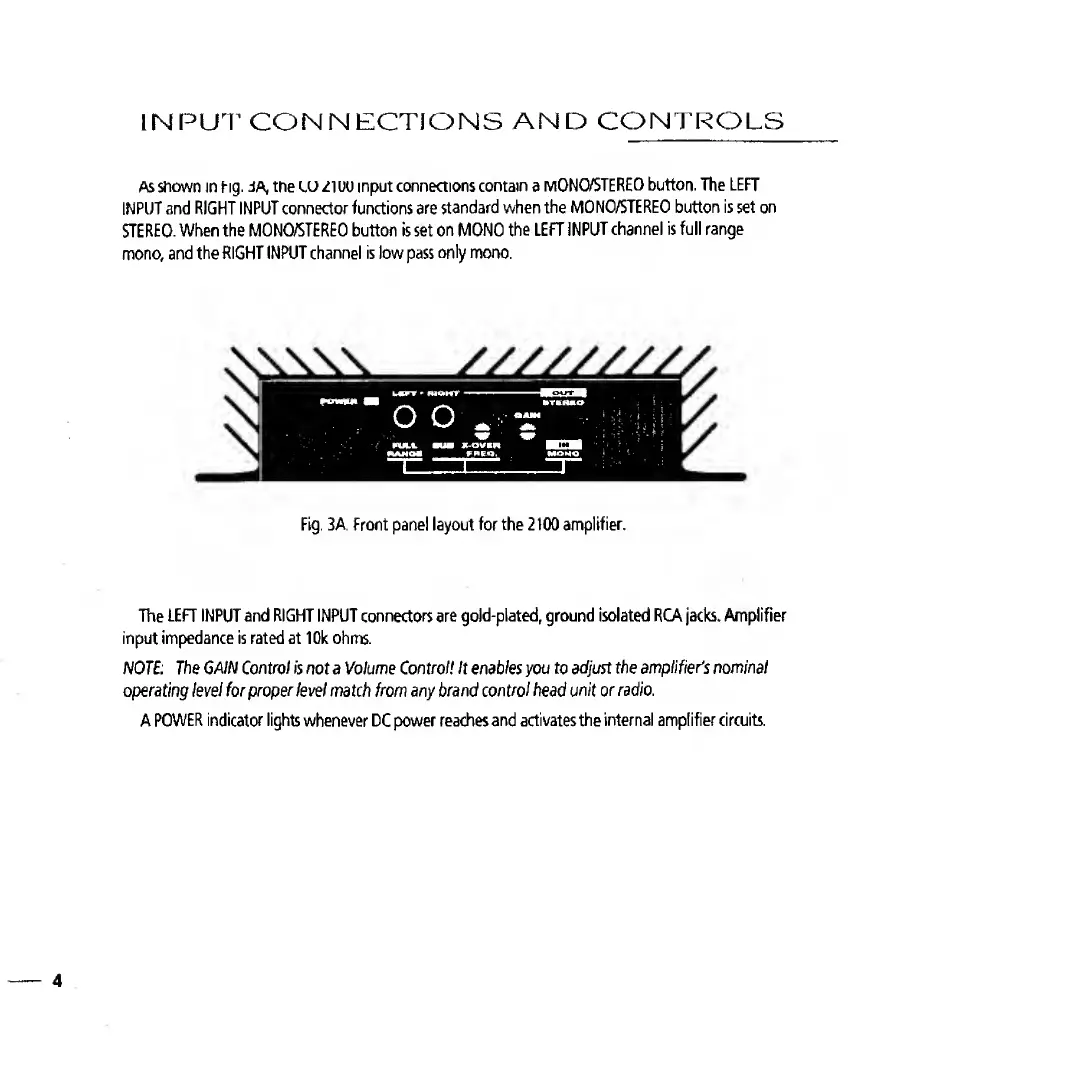

Fig. 3A. Front panel layout for the 2t00 amplifier.
The LEFT INPUT and RIGHT INPUT connectors are gold-plated, ground isolated RCA jacks. Amplifier
input impedance is rated at 10k ohms.
NOTE. The GAIN Control is not a Volume Control! It enables you to adjust the amplifier's nominal
operating level for proper level match from any brand control head unit or radio.
A POWER indicator lights whenever DC power reaches and activates the internal amplifier circuits.
