Troubleshooting
Place of fuse and reset switch with overcurrent relay
Place of fuse and reset switch with overcurrent relay
WARNING
●Be sure to remount the cabinet plate(s) after resetting safety devices or taking other
corrective action. Never operate the cooler while the cabinet is open. Touching the inside of
the cooler may result in injury or electric shock.
●If the cooler behaves abnormally, switch it off and then cut the power. Then contact your
dealer or product specialist. Continuing to run the cooler while operation is abnormal may
result in fire or electric shock.
●Be sure to cut the power to the cooler before taking corrective actions or resetting any of the
safety devices. Leaving power on may result in electric shock or in injury from the fan.

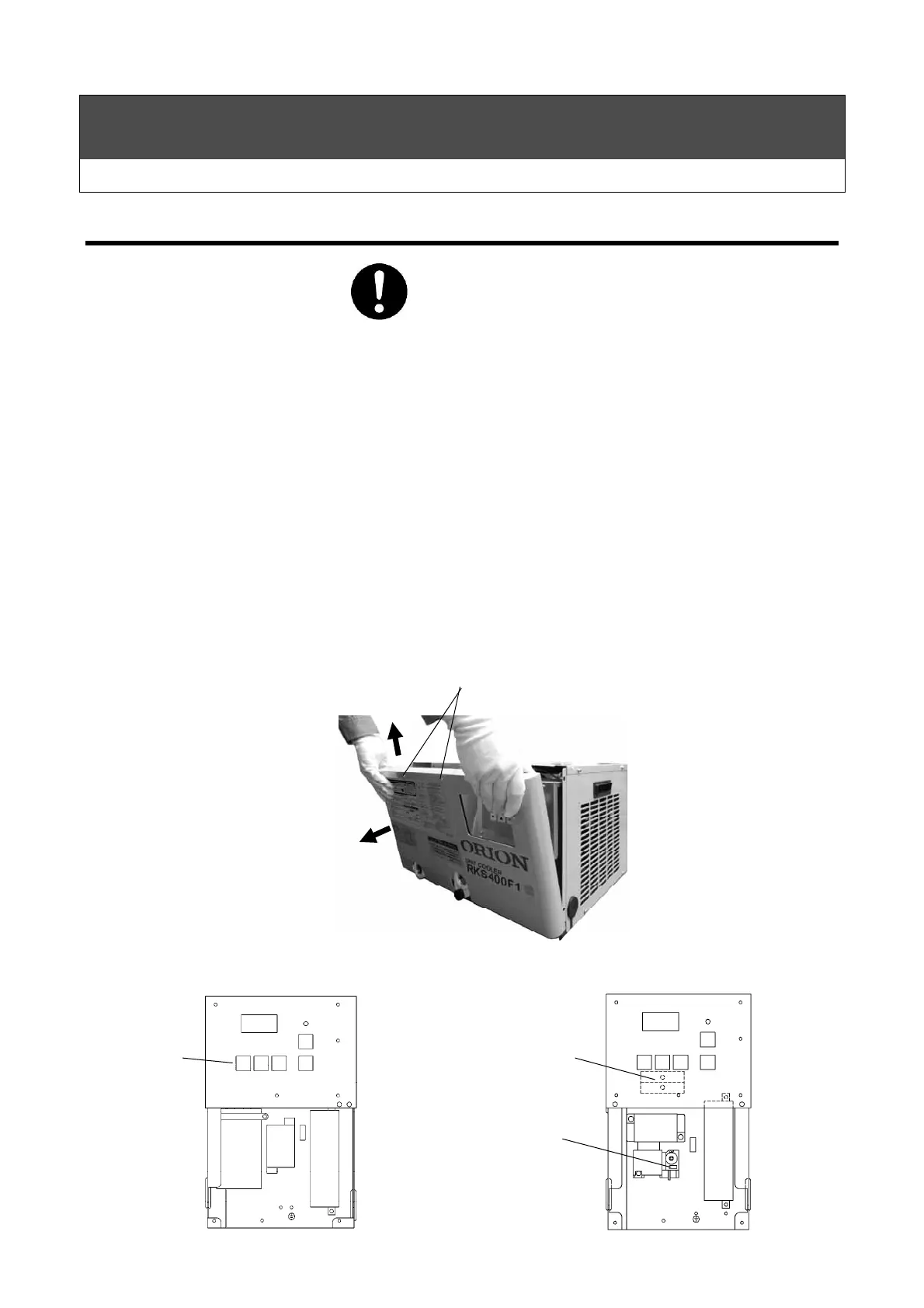

■Removing the Front Cabinet Panel
1. Remove the screws holding the cabinet. (2 front screws)
2. Pull out the upper part of the top panel and remove by pulling up diagonally to release
the catch on the bottom of the panel.
■ Distribution Box
Fuse
Reset switch with
compressor
overcurrent relay
Fuse
RKS250F1-S RKS400F1
The screws holding the cabinet
(2 points)
To Next Page
