Tack Screen

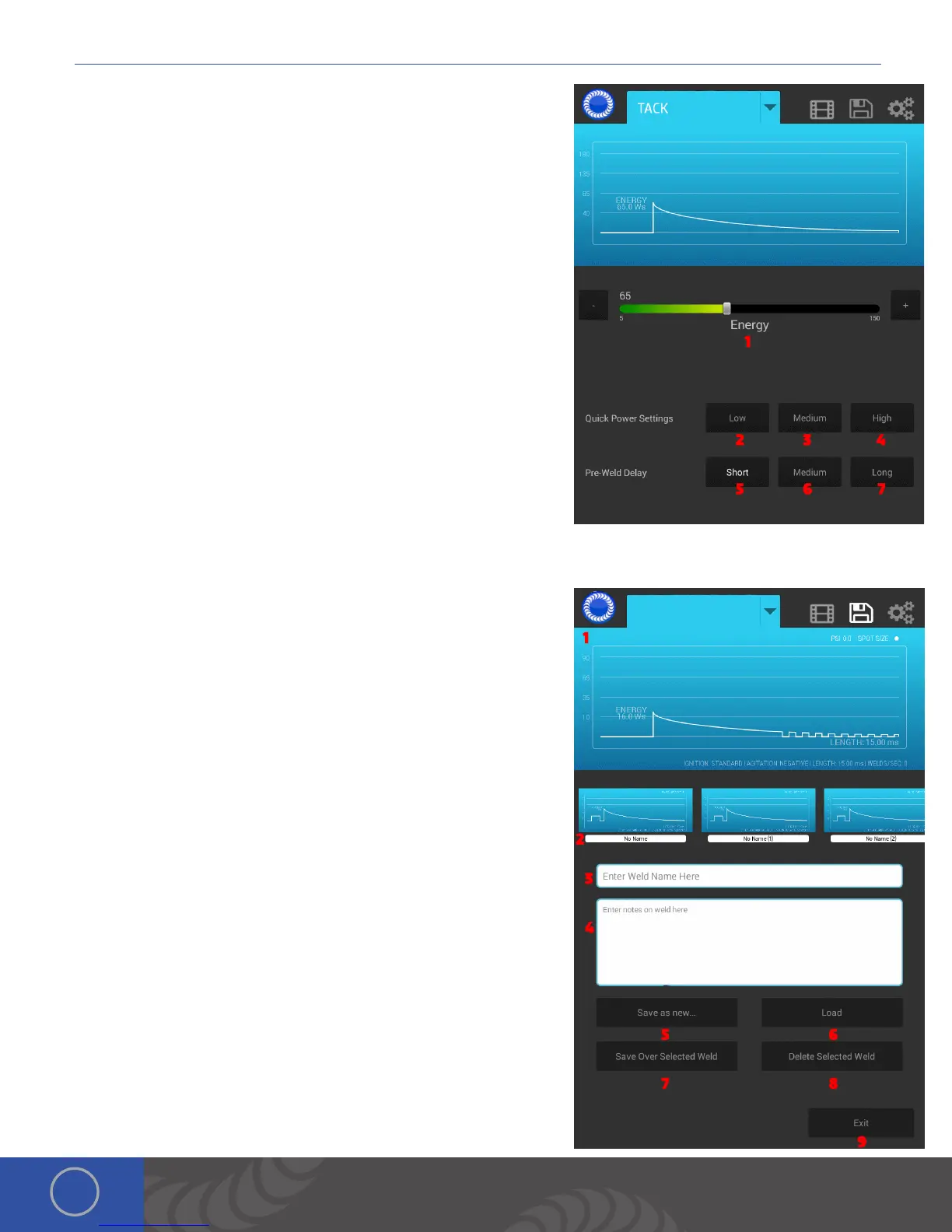

1. Tack Energy Slider: Adjusts the amount of weld energy that is being
used.
QUICK POWER SETTINGS: ese buttons allow the user to quickly
set a power setting that they would like.
2. Low: With the Low setting the welder is set to 30 ws.
3. Medium: With the medium setting the welder is set to 100 ws
4. High: With the high setting the welder is set to 150 ws.
PREWELD DELAY: ese buttons set the time before a weld will
initiate.
5. Short: With the short setting the welder will wait for a quarter
second before initiating the weld.
6. Medium: With the medium setting the welder will wait for half a
second before initiating the weld.
7. Long: With the long setting the welder will wait for one second
before initiating the weld.
Save/Load Screen
1. Current Weld Settings Graph: Displays the current weld settings
for the user to see.
2. Left / Right saved settings scroll list: Allows the user to scroll
through the saved welds to choose one for loading or saving over.
3. Name of weld to save: Allows the user to name the weld before
saving.
4. Notes about saved weld: Allows the user to input any important
information about a weld.
5. Save as New Button: Saves the current weld settings and notes
under the name that has been provided. If no name was provided
the name will be “No Name”.
6. Load Button: Loads the selected saved weld into the current
settings.
7. Save Over Selected Weld Button: Saves the current weld setting
and notes over the currently selected saved weld.
8. Delete Selected Weld Button: Deletes the selected saved weld
from the welder.
9. Exit Button: Allows the user to return to the “arc” screen.
