32
Test Bell & Strobe
This menu allows you to test the external bell, strobe, internal speaker, user controlled outputs
and the backlight on external sounders.
1. Ensure that the ‘Test bell & Strobe’ menu is selected, see page 31:
2. Use the U/ u and D/ p keys to change between the options and then
the L/ o and R/ r keys to toggle the selected option on and off.

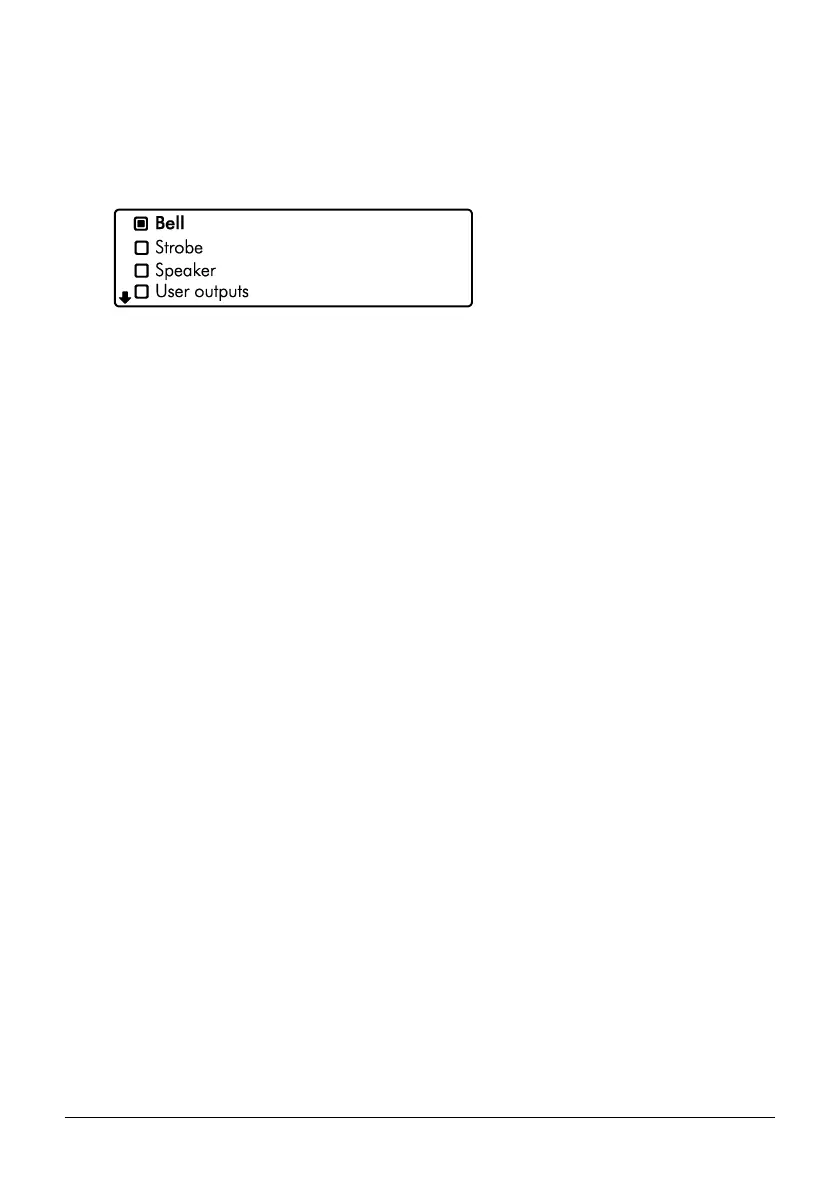

1 Bell
` The external bell will trigger.
a The external bell will not trigger.
2 Strobe
` The external strobe will trigger.
a The external strobe will not trigger.
3 Speaker
` Any speakers connected to the control panel or expansion devices will trigger.
a The speaker connected to the control system and expansion devices will not trigger.
4 User Outputs
` Any output assigned the attribute ‘User Output’ will be triggered.
a User outputs will not be triggered.
3. Hold the B / o or @ key for 2 seconds to exit the menu.
