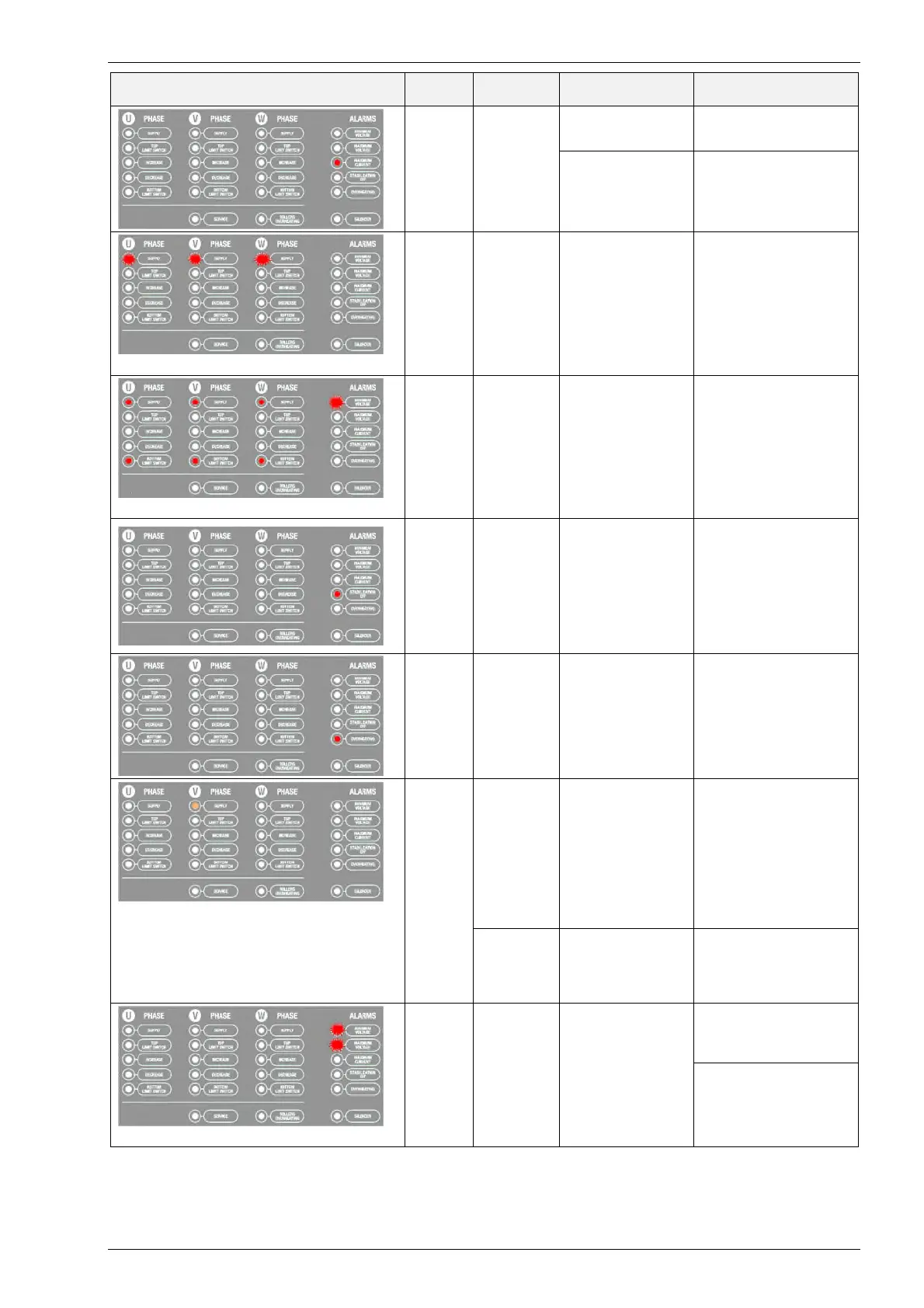

ALARM SIGNAL
ACTIVE
RELAY
ISSUE POSSIBLE CAUSE ACTIONS
MIN-MAX
REM1
MAXIMUM
CURRENT
I
out
over set
threshold (unit
overload)
Adjust the load so that the
unit is not overloaded.
Control card wrong
reading (output
instrument connector
not tightened)
Check the output
instrument ammeter
connections.
ALL BLINKING
MIN-MAX
REM1
INPUT
VOLTAGE
SIGNAL
FAILURE
Control card issue
(terminal P27) or
circuit fuses (if
present)
Check that P27 terminal is
correctly connected and
that no fuse has blown.
If necessary, replace the
card with a spare one.
MIN VOLTAGE LED BLINKING
MIN-MAX
REM1
OUTPUT
VOLTAGE
SIGNAL
FAILURE
Control card issue
(terminal P30) or
circuit fuses (if
present)
Check that P30 terminal is
correctly connected and
that no fuse has blown.
If necessary, replace the
card with a spare one.
REM1
STABILISATIO
N OFF
Overload in the
voltage regulator
circuit and
intervention of the
electronic protection
(V
in
< V
target
 V
out
=
V
in
;
V
in
> V
target
 V
out
=
V
target
)
Investigate and eliminate
the overload source.
REM1
REM2
INTERNAL
OVERHEATING
Temperature
measured around the
card > 65°C.
The system operates
in the same way as
with the stabilisation
off alarm
Check that the air
circulation inside the
enclosure is not hindered.
If necessary, replace a
defective fan following the
procedure explained in the
maintenance chapter.
SUPPLY LED ORANGE
REM1
REM2
LOCKED
GEARMOTOR
Damaged or faulty
component.
For 13 mins, the
system tries to restart
the motor (with the
LED temporarily
turning green).
Beyond that time, the
alarm stops the
regulation.
Switch the unit off and try
to manually move the
carriage and therefore the
motor. If necessary,
replace with a spare one.
SHORT-
CIRCUIT ON
THE
GEARMOTOR
Damaged or faulty
component. The
alarm stops the
regulation without
trying to restart it.
Replace with a spare one..
BOTH BLINKIMG
MIN-MAX
REM1
PHASE
ROTATION
ERROR
Supplying system
configuration
The system operates
in the same way as
with the stabilisation
off alarm
During installation,
connect the card to a PC to
check the alarm and adjust
the relevant parametre
During operation the issue
is on the supplying line.
