ORTEA NEXT ORION PLUS - Alarm Signal Transfer; Service

ORTEA SpA MAT200 aug21
20 / 24
ALARM SIGNAL
ACTIVE
RELAY
ISSUE POSSIBLE CAUSE ACTIONS
N.A.
SERVICE
REQUIRED
Set total working
hours and/or motor
movement threshold
exceeded
Please contact the Service
Dept.

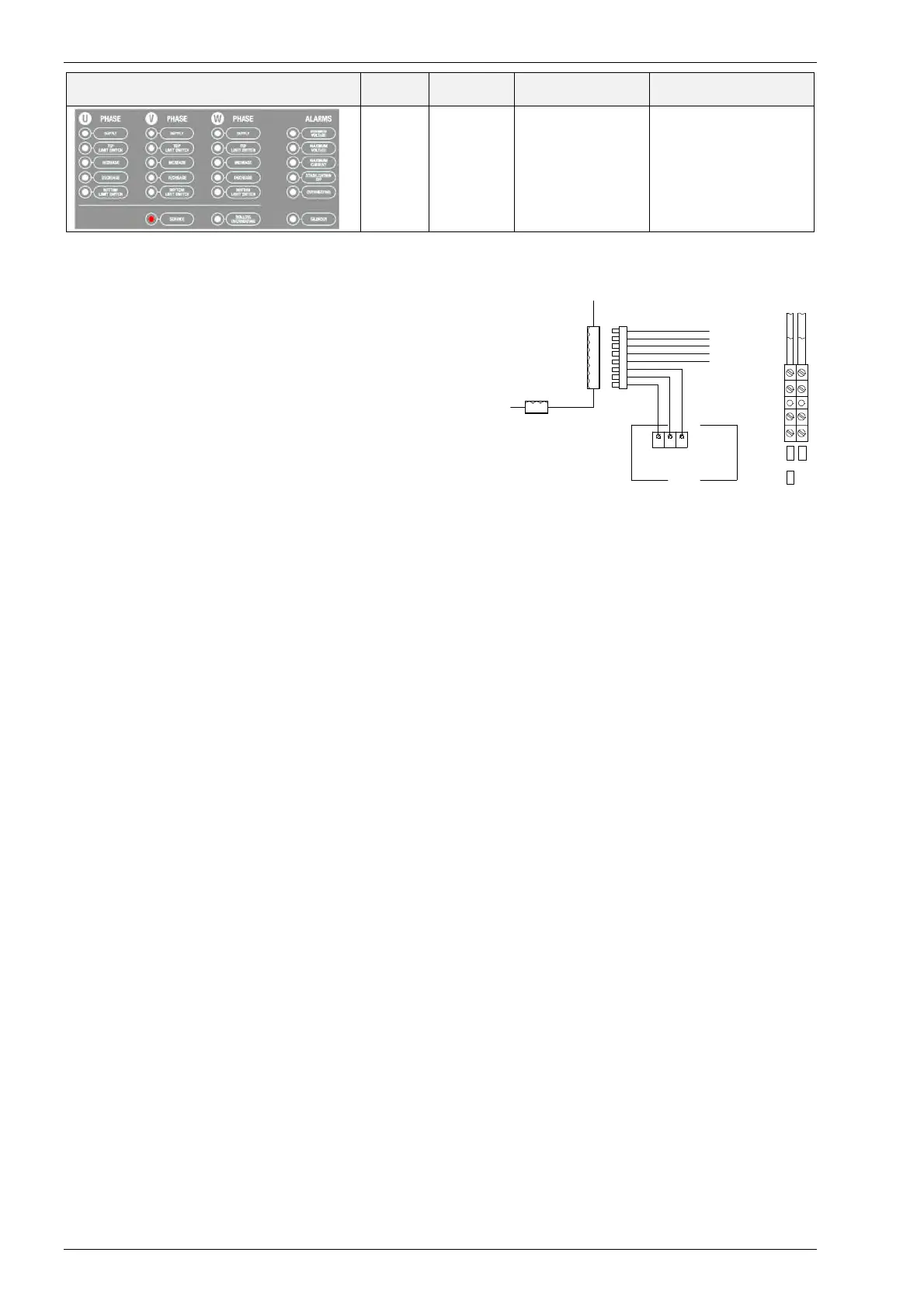

9.2 ALARM SIGNAL TRANSFER
9.2.1 REM1 relay (terminal P18)
The alarm general signal can be transferred to a remote position via
the terminals included in the J2 auxiliary terminal block mounted
below the electronic control card, to which is connected by means of
the P18 terminal (wires 017, 018, 019).
The output contacts are designed for 3Amps maximum current (at
230Vac 50Hz or 24Vdc). The contacts are isolated between each
other.
Note The REM1 Remote Alarm relay on the control card
activates when at least one of the alarm conditions listed in
the table occurs. The remote signal could therefore indicate
the presence of several simultaneous alarms.
9.2.2 REM2 relay (terminal P37)
The REM2 relay on the control card manages cumulatively four specific alarms already described for the REM1 relay:
 Gearmotor locked due to a short-circuit
 Gearmotor locked due to a mechanical issue
 Overheating on the regulator rollers
 Overheating inside the enclosure
By connecting to the P37 terminal with a suitable connector, these alarm signal can be remoted separately.
Note The REM2 Remote Alarm relay on the control card activates when at least one of the alarm conditions
listed above occurs. The remote signal could therefore indicate the presence of several simultaneous alarms.
9.3 SERVICE
For any queries (including the request for spare parts) please contact the nearest authorised Service facility or the
Manufacturer’s Service Dept. always mentioning:
 Type and factory code of the unit
 Serial number
 Purchasing order or Invoice number.
com
nc
J2
010
no
018017 019
not available
no
017
017
AUXILIARY TERMINAL BLOCK
REMOTE ALARM
1
control card
P18
3
nc
8
019
com
P37
1
019
8
018
018
1
