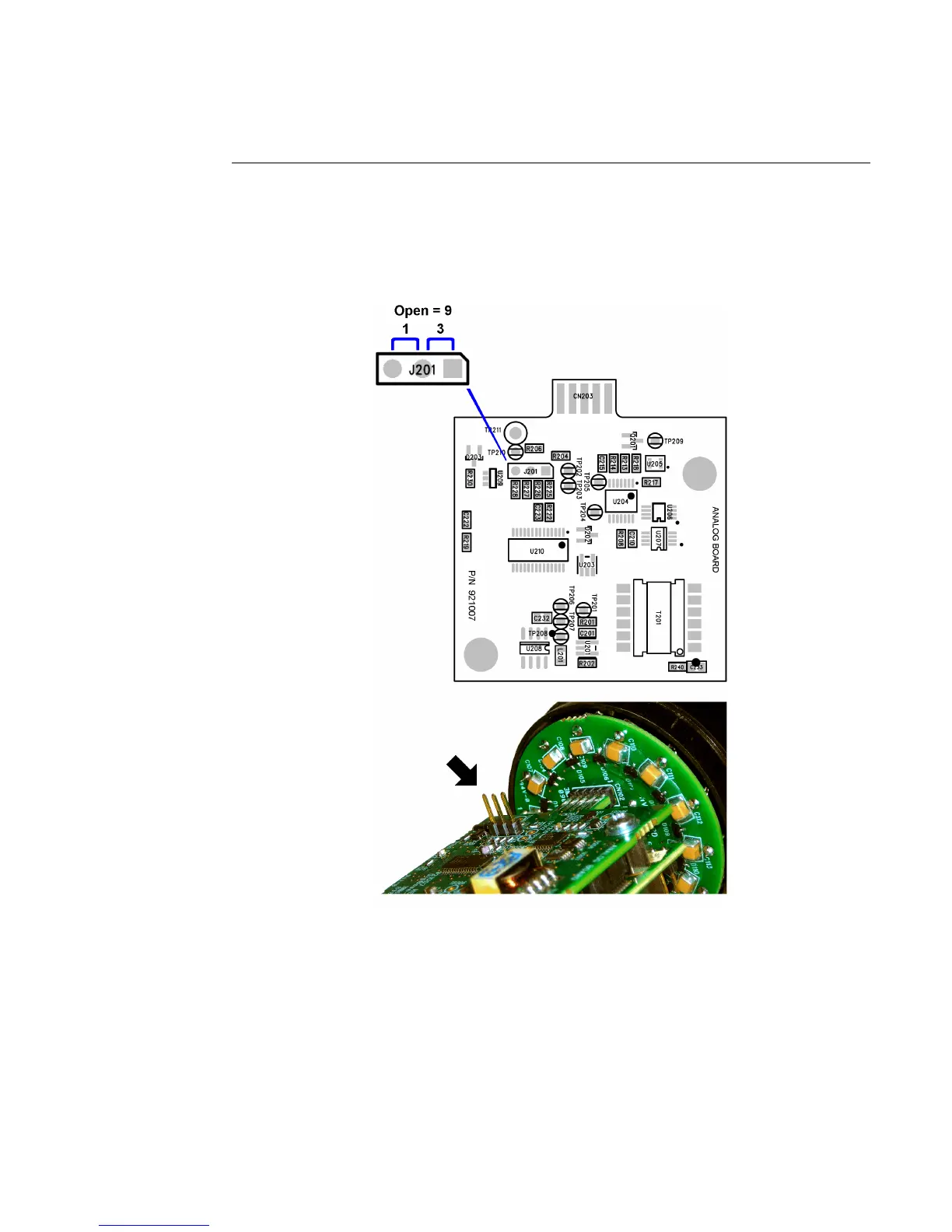

Figure 19. Setting the Coarse Gain Jumper.
Replace the washer and nut on the A INPUT and B OUTPUT connectors.
Note the new coarse gain setting for this unit. There is no software-based way to read this
setting (i.e., you must remove the shroud and inspect the jumper if you are unsure of the
coarse gain setting). You may wish to put a label on the housing noting the gain setting.
