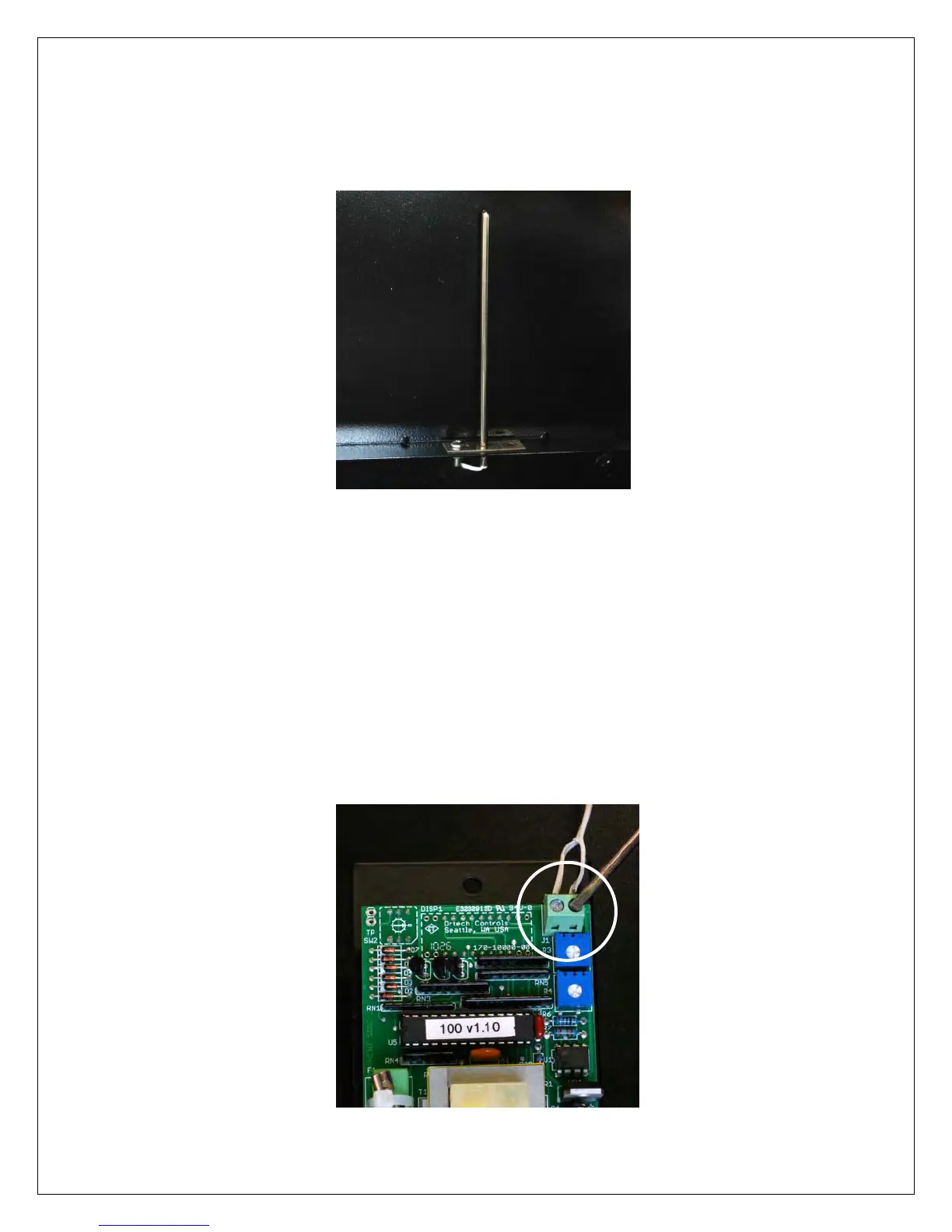

Attach the Detector Install the detector into the shaft hole with the slot
to the Rail positioned over the screw hole. Install the screw from
above, down through the slot and through the screw hole.
Install the nut from below and tighten.
Connect the WARNING: Disconnect the grill from AC power.
Temperature Installing the control while the grill is connected to
Detector AC power could result in shock or could damage the
to the Control control.
Connect the temperature detector lead wires to connector J1
located in the upper right hand corner of the printed circuit
board. Use a small flat blade screwdriver to fully open the
contacts by turning the set screw counter clockwise. Insert
the wires and tighten the contacts by turning the set screw
clockwise. You can connect either lead wire to either
terminal of connector J1.
