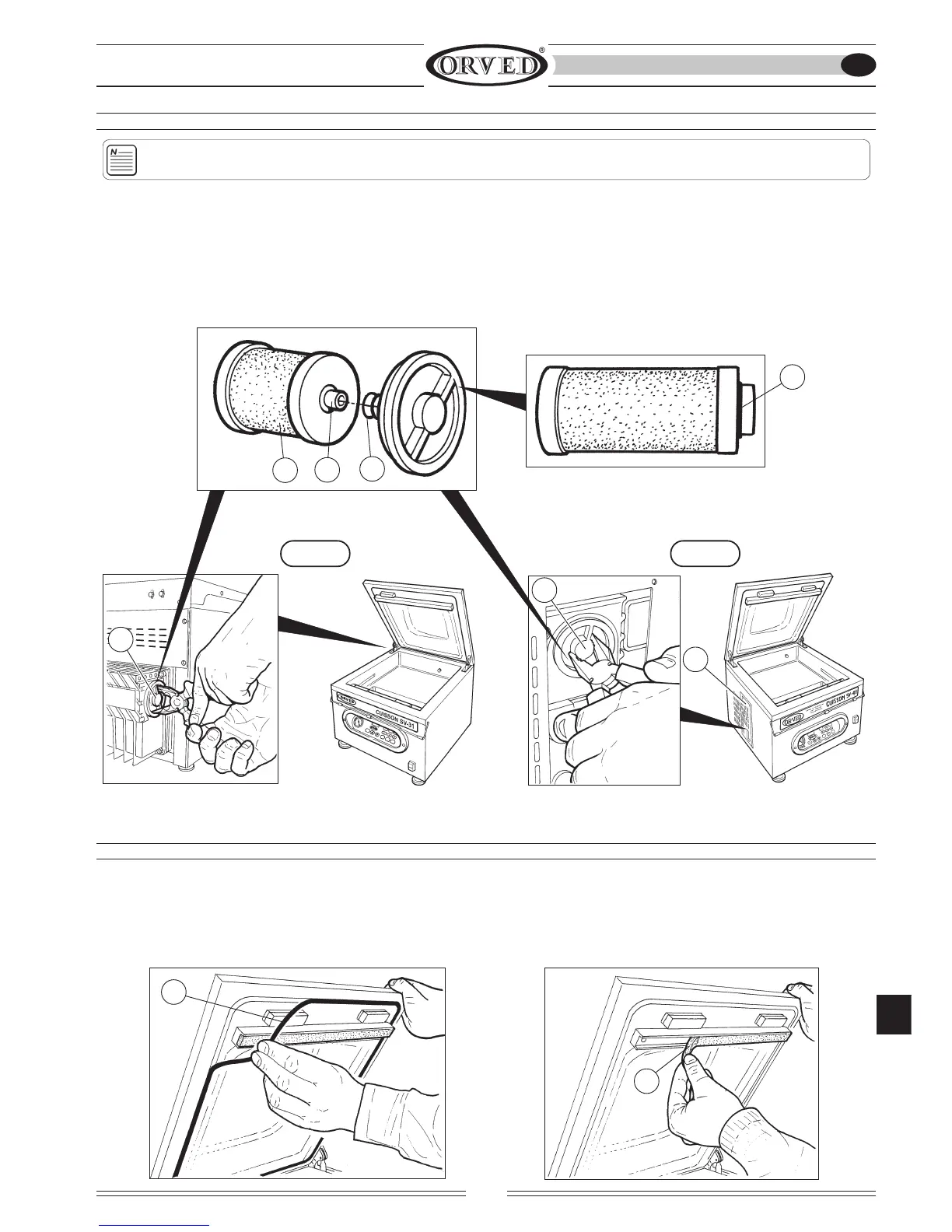

7.4.4 CHANGING THE LID GASKET AND RED SILICONE
1) Open the plexiglas lid.
2) Remove lid gasket (G) or the red silicone strip (H) and clean the seats to remove any dirt.
3) Insert the new gasket pushing it firmly into the cavity.
4) Run a loadless cycle so that the gasket fits into its seat correctly.
•
H
G
MAINTENANCE
•
A
•
B
SV-41SV-31
B
•
7.4.3 CHANGING THE PUMP OIL FILTER
WARNING: This operation must be carried out by qualified personnel.
1) Remove the stainless steel side panel (A) from the appliance (SV-41).
2) Unscrew plug (B) on the pump body using pliers.
3) Remove the filter (C) from its seat.
4) Insert the new filter after checking to make sure the ’O-ring (D) is in the correct position.
5) Refit the cover by fixing spring (E) on the filter projection (F).
•
