Page #9 background imageLoading...
Page #9 background image
to SMP200 Speaker IN
SMP200 Subwoofer Amp
SMP200 Sub OUT to
to Ceiling Speakers
SMP200 Speaker OUT
the SMP200 and Phase settings before getting amplified to the level set by the SMP200
through to the connected stereo speakers at full bandwidth. The signal also gets processed by
The amplified signal from the distribution amp connects to the SMP200 and gets passed
effective and powerful solution to adding subwoofers to multi-room audio applications.
out on a multi-channel audio distribution amplifier. This configuration provides a simple, cost-

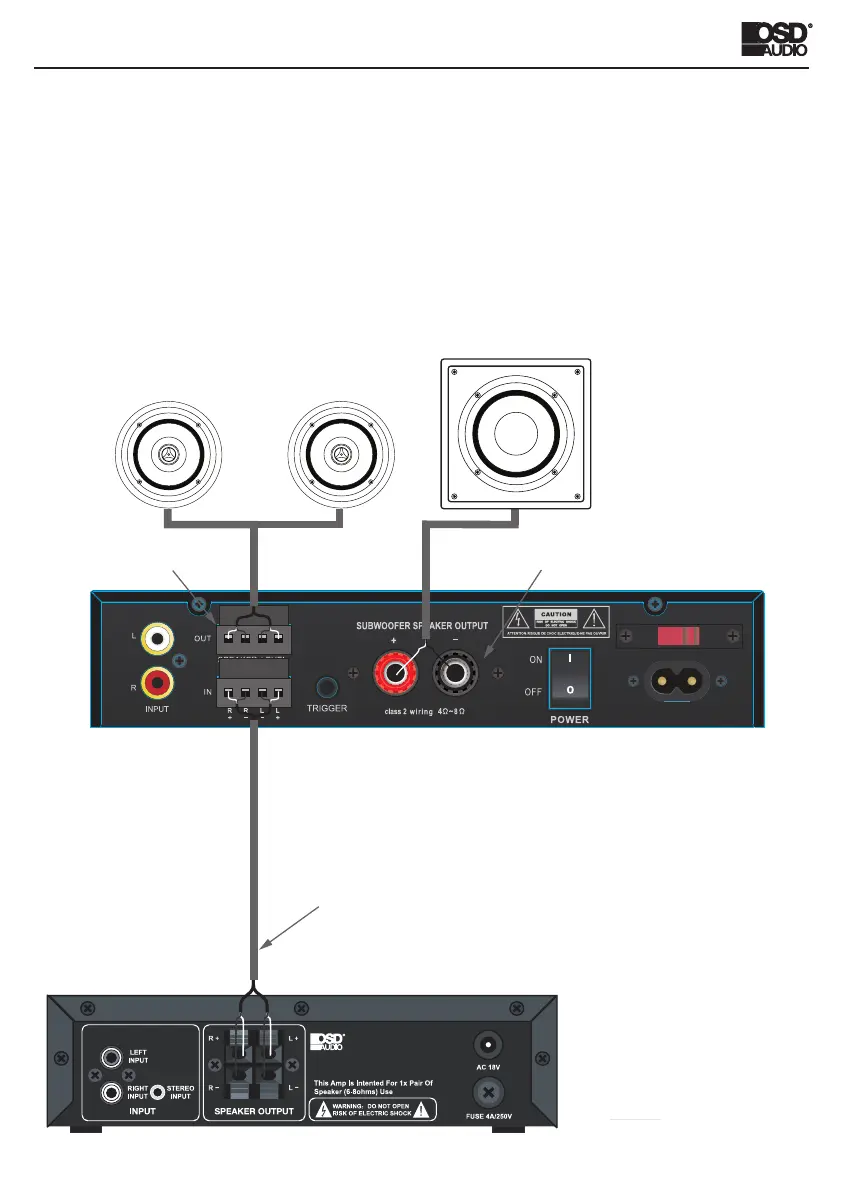

shows the SMP200 connected to the Speaker Level The Speaker Level Input Illustration
Volume Control. Once set, the volume control for the distribution amp zone will act as a
master volume control for both the stereo speakers and sub.
Audio Amp/Receiver
With No Subwoofer OUT
Ceiling Speakers
Amp or Receiver
Speaker OUT
6”or 8”
Subwoofer
Subwoofer
230V
115 V
AC IN:115V/230V,60/50Hz 250W
Speaker Level Input Illustration
CONNECTION

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the OSD Audio SMP200 and is the answer not in the manual?

OSD Audio SMP200 Specifications

Audio Specifications IconAudio Specifications
maximum output power120W/8Ω; 200W/4Ω
total harmonic distortion (THD)1%
frequency response20Hz-160Hz +/-1dB
signal to noise ratio95dB
input sensitivity200mV
crossover frequency35-160Hz
phase adjustment0-180°
General Specifications IconGeneral Specifications
trigger input voltage+12VDC to +24VDC
line voltage range110-120/220-240 VAC
standby power consumption1.8W
Weight and Dimensions IconWeight and Dimensions
dimensions (W x H x D)8.5” x 1.75” x 9.8” (214mm x 250mm x 44mm)
overall length (including knobs/connectors)10.7” (272mm)
weight2.9 lbs (1.32 kg)
