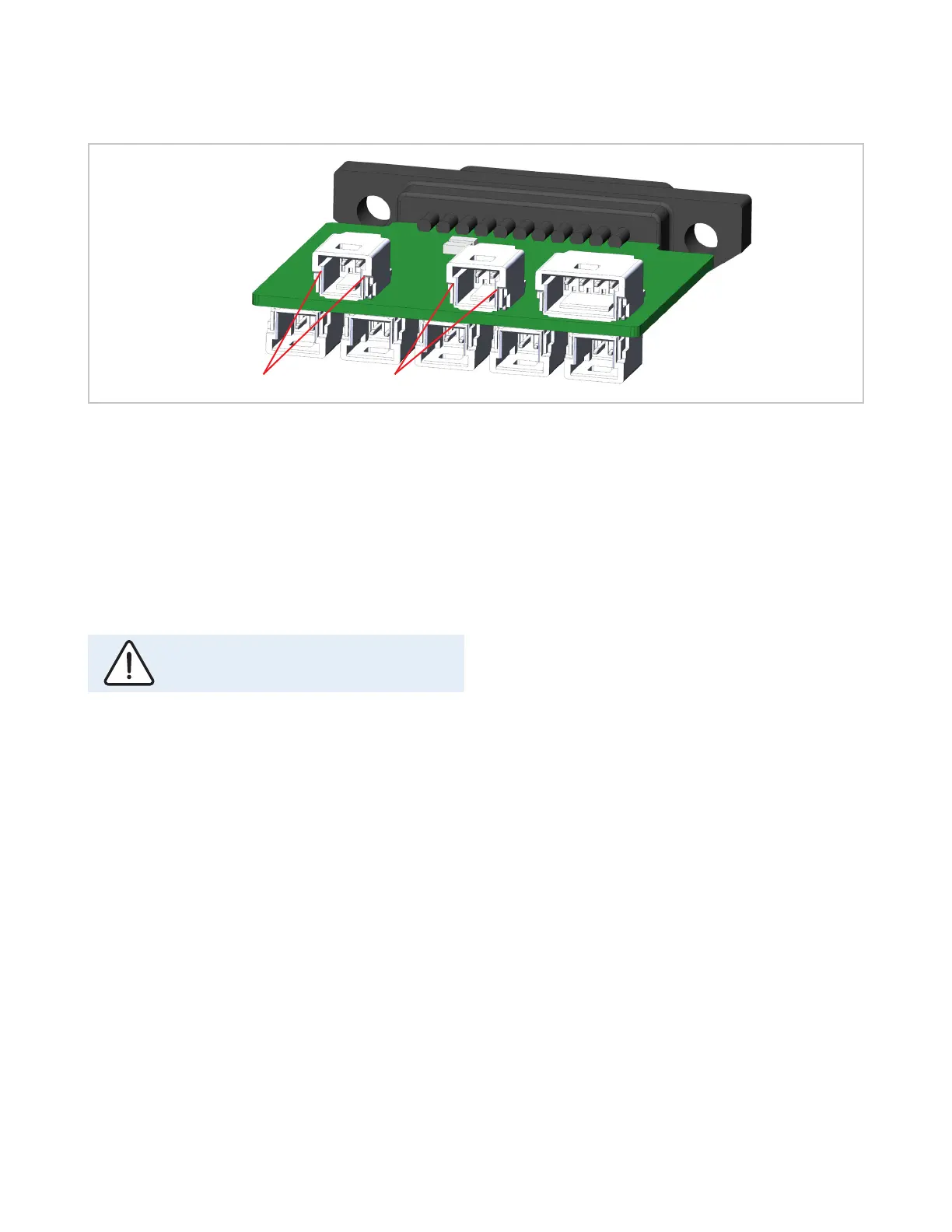

4.8 FSR PCB
FSR 1 FSR 2
Fig. 47:
If using an FSR wristband insert the FSR cables through the
aperture at the socket end of the bellows.
Insert the pairs of wires as shown in figure 47 using the
same method as inserting the digit wires. Ensure click is
heard indicating secure connection.
Removal of the FSR wires is the method is the same meth-
od as removal of the digit wires.
Take care not to damage the PCB.
