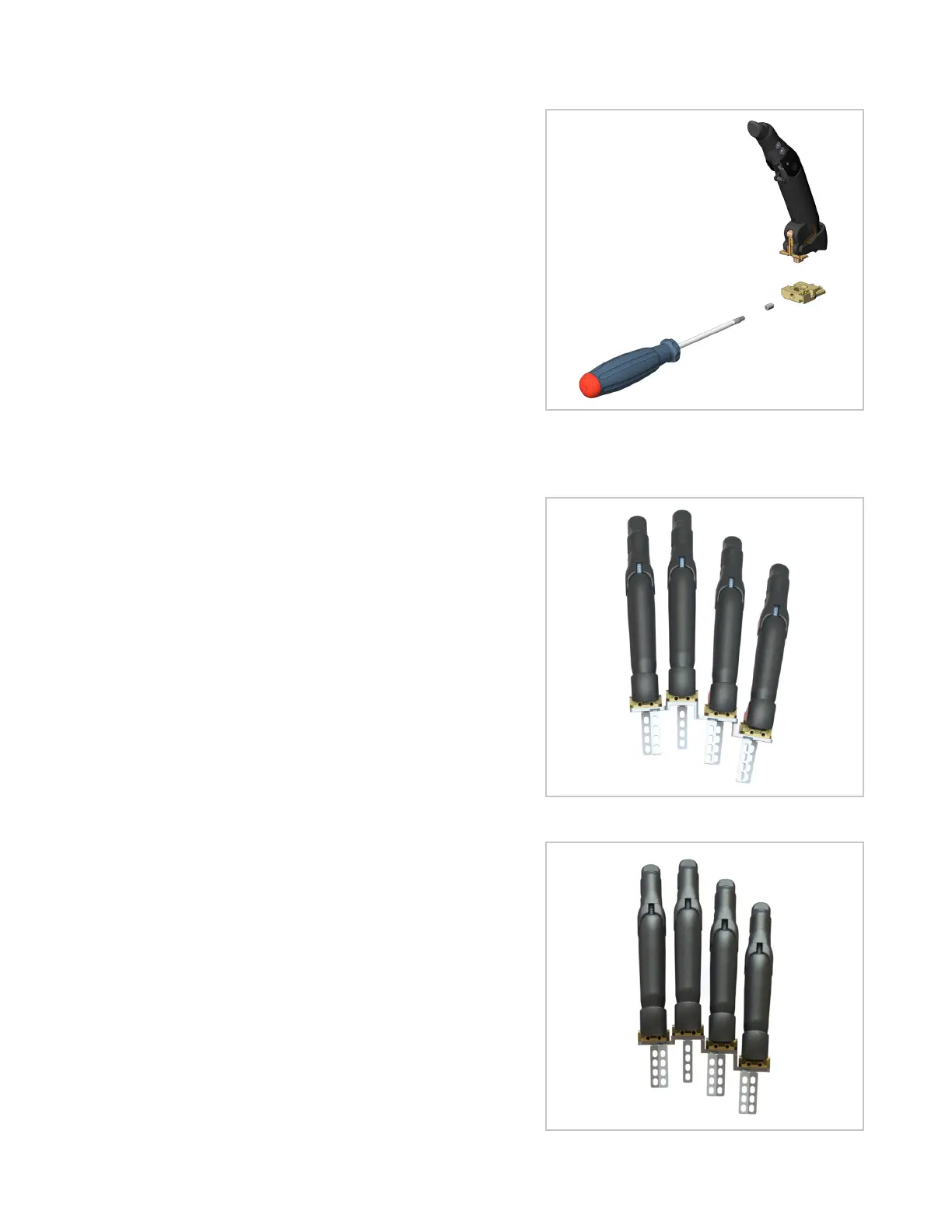

1.2 Removal of the Digit from the Knuckle
Use the T6 Screwdriver to remove the M3 Grub Screw from
the Knuckle Assembly (fig. 4).
The digit can now be freely disengaged from the Knuckle
Assembly.
Fig. 4:
Fig. 5:
Fig. 6:
1.3 Extra Small and Medium Digit Assembly
Depending on the size of the kit, the Knuckle Mounting
Plate will vary in shape.
Figure 5 shows a Medium Digits Assembly.
Figure 6 shows an Extra Small Digit Assembly.
