Ossur i-digits Component Assembly Guide

8 of 25
2.0 Transfer of Alignment
2.1 Thumb Alignment
The use of the Thumb Alignment Plate is to aid the position
of the Thumb Mounting Plate (fig. 10).
Screw the thumb alignment plate onto the index position
Knuckle Mounting Plate using three M2x5 mm screws.
Depending on the handedness, attach the thumb rotation
assembly to the correct side of the alignment plate (fig. 11)
using three M2x5 mm screws.
2.2 Knuckle Dummies
Single knuckle dummies are used to aid transfer of align-
ment. Attach the Single Knuckle Dummies to the Knuckle
Mounting Plate using three M2x16 mm Countersunk Torx
Screw and the T6 Screwdriver (fig. 12).

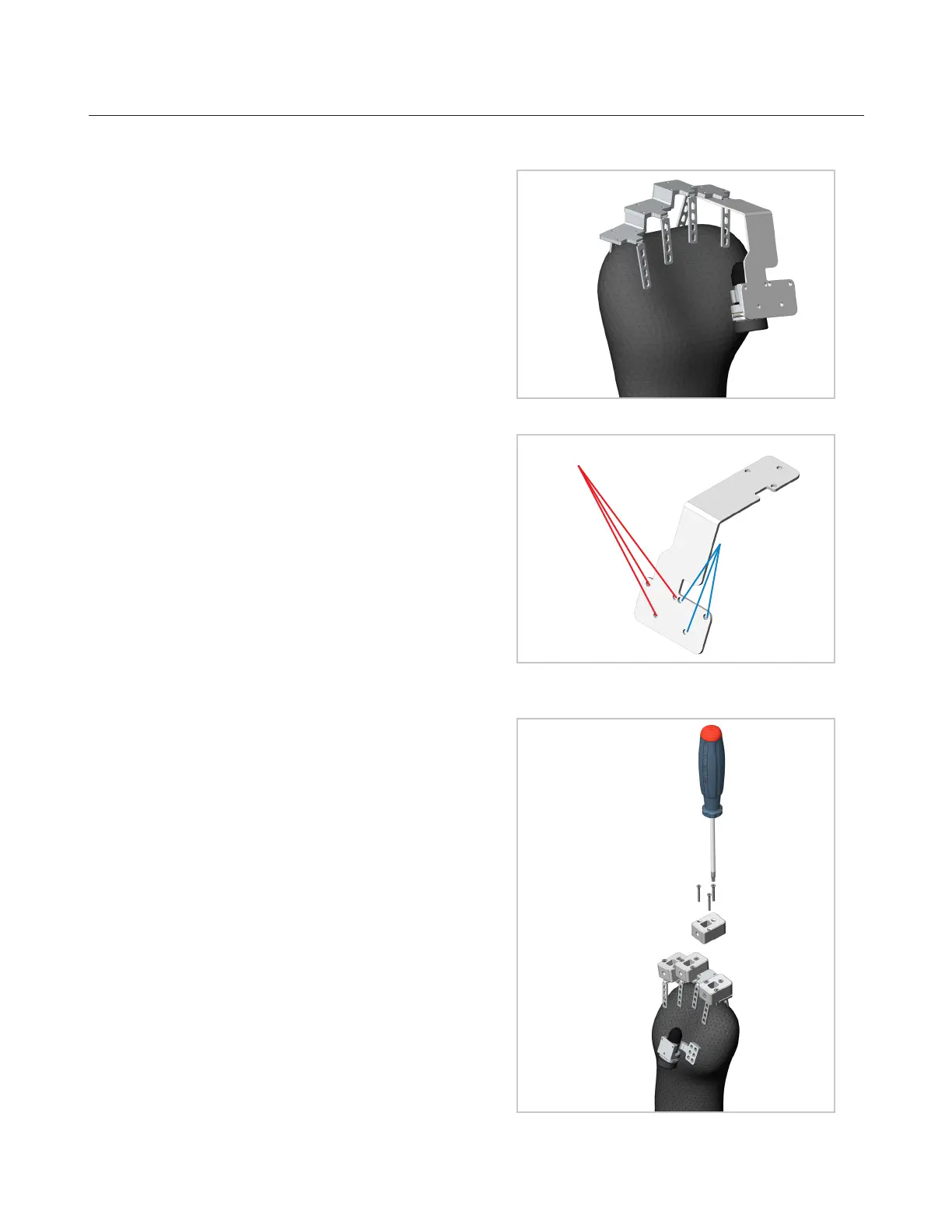

Fig. 10:
Left hand
Right hand
Fig. 11:
Fig. 12:
