Ossur i-limb hand Series - Magnetic Charge Port Installation

10 of 27 11 of 27
2.4 Magnetic charge port
It is important to provide sucient space for the charge
port between the inner and outer sockets.
When fabricating the outer socket the magnetic charger
fabrication dummy should be used. The dummy is in 3
parts:
Dummy 1: is the thickest dummy. It is used to ensure
sucient clearance within the outer socket/frame for the
magnetic charger port.
Dummy 2: has the central hole. It creates the step to re-
cess the magnetic charge port.
Dummy 3: is the ring. It is used after lamination to create
the necessary hole.

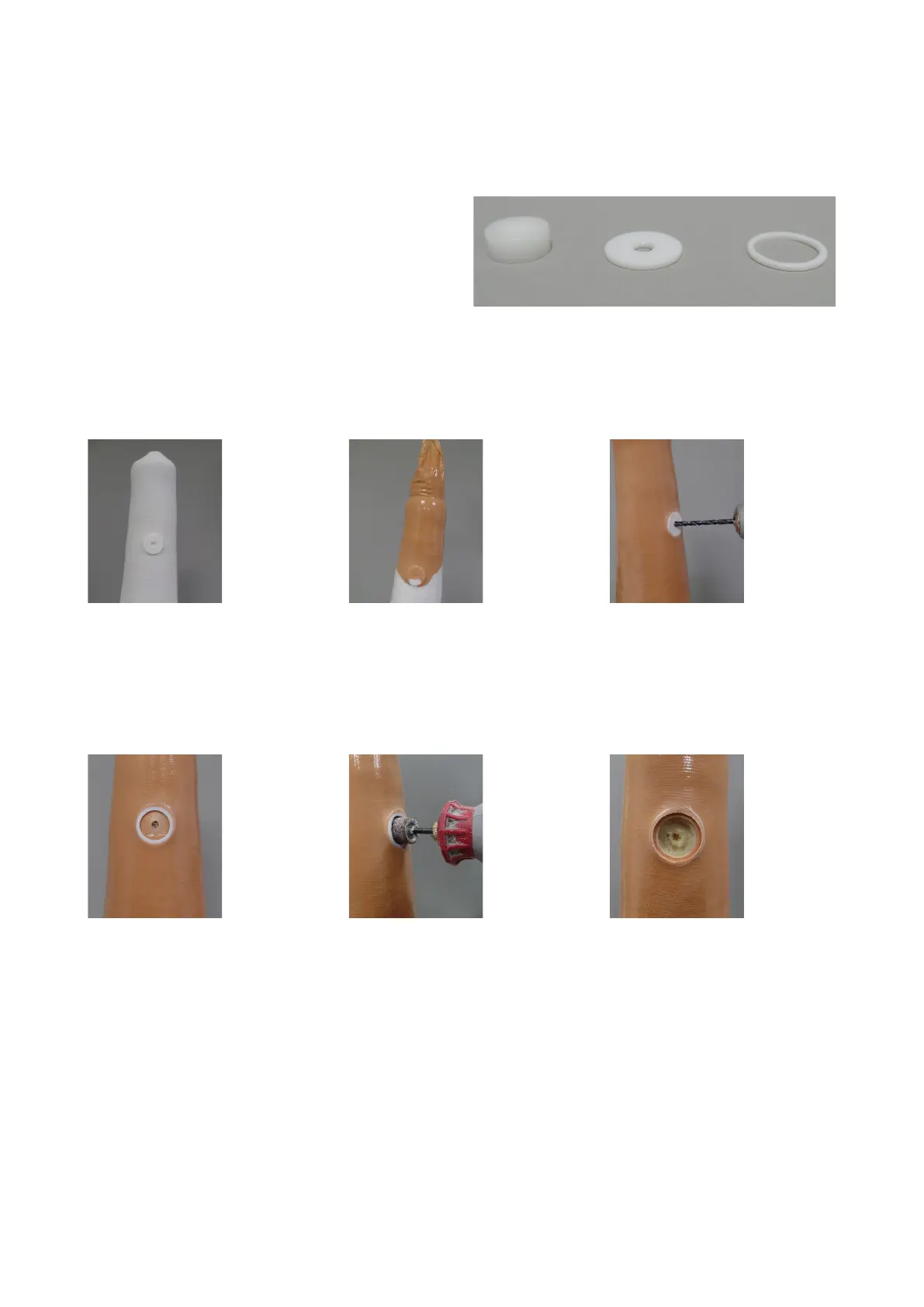

1. Position the dummies in
desired location during prepara-
tion for final lamination, dummy
1 should be recessed within the
outer socket/frame build down.
2. Position dummy 2 prior to ap-
plying final two fabric layers.
Laminate as normal.
3. Once laminated, grind surface
to expose dummy 2.
Drill through central hole of
dummy 2.
4. Remove dummy 2 and insert
dummy 3.
5. Grind lamination to create hole.
Remove dummy 3.
6. Insert magnetic charge port
securing in position with silicone
adhesive.
Dummy 1 Dummy 2 Dummy 3
