3.0 Prosthesis Assembly

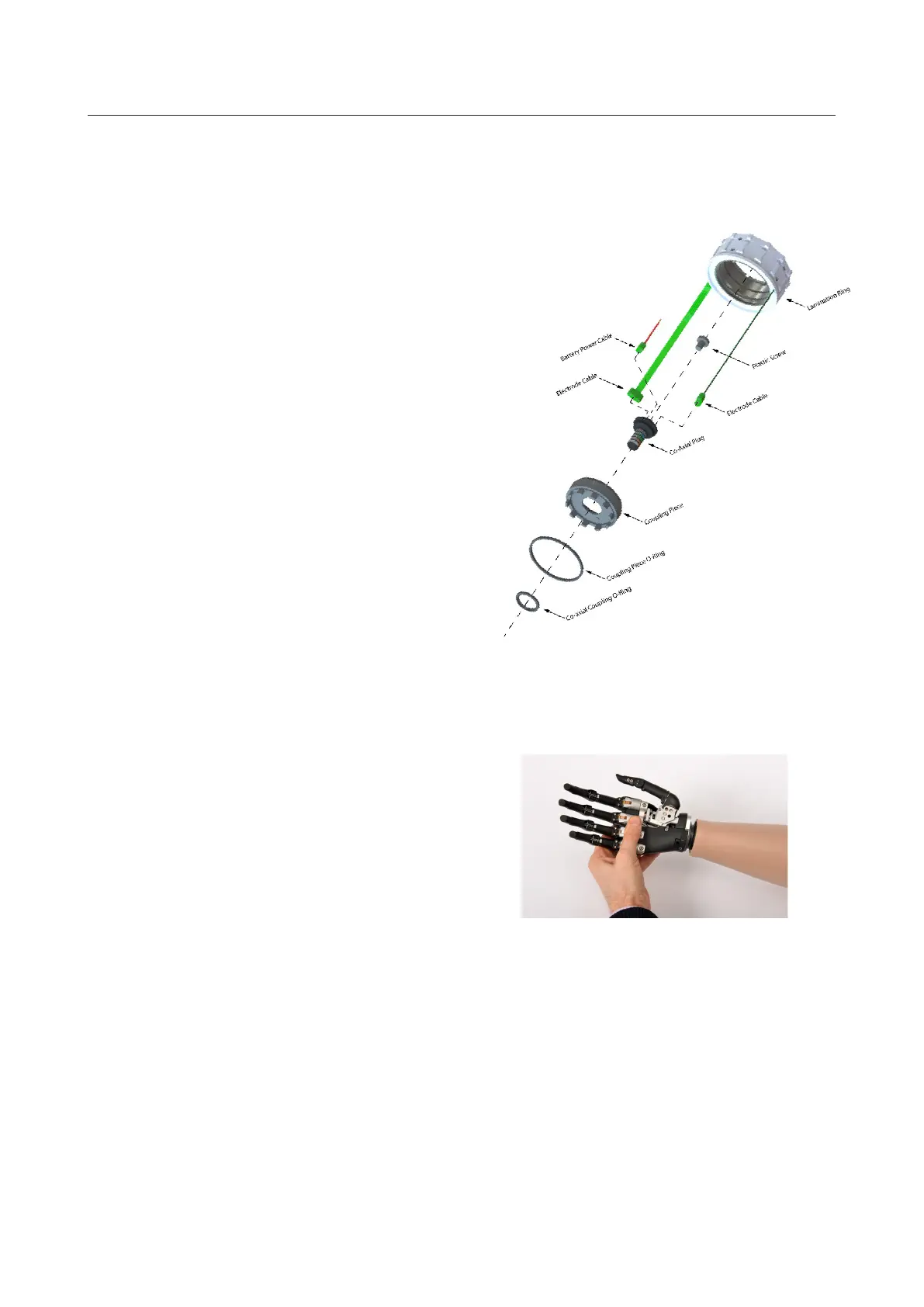

3.1 Quick wrist disconnect assembly
Insert the coaxial plug into the coupling piece and secure
in position using the small ‘O’ ring.
Insert the coupling piece into the lamination ring and
turn until seated. Insert the coupling piece ‘O’ ring and
use the Quick wrist disconnect (QWD) release tool to
secure in position.
Electrode and battery cables should be inserted into the
coaxial plug and the plastic screw used to secure.
To connect the i-limb
®
hand to the prosthesis:
1. Ensure the i-limb
®
hand is switched o
2. Align the hand with the wrist
3. Give a slight push together
4. Rotate the hand slightly to ensure engagement
To remove the i-limb
®
hand from the prosthesis:
1. Rotate the i-limb
®
hand through 360° in either direc-
tion until it disengages
2. The hand will disengage from the prosthesis
