8.2 Seat Angle Adjustment
The A200 offers seat angle settings in 3 different positions (0°, 3° and 6°). For setting the position, 2 quick re-
lease levers are used which are located at the front below the seat. To change the seat angle, loosen the two
quick release levers. Adjust the desired seat angle by simultaneously lifting the seat slightly and pushing the
brackets to the rear. Ensure that the brackets completely engage in the new position and tighten the quick re-
lease levers.
Note:
Ensure the quick release levers are snugly tightened after all seat angle adjustments!
Note:
During seat angle adjustments the user must not sit in the wheelchair.
8.3 Armrest
Remove the armrests by loosening the thumb screws at the lower end of the armrest and lifting the armrest up-
wards (Fig. 10).
Both armrests can be removed, however, only the side without the control panel can be removed directly. Be-
fore removing the armrest on the side with control panel, the control panel must be removed (Fig. 11).

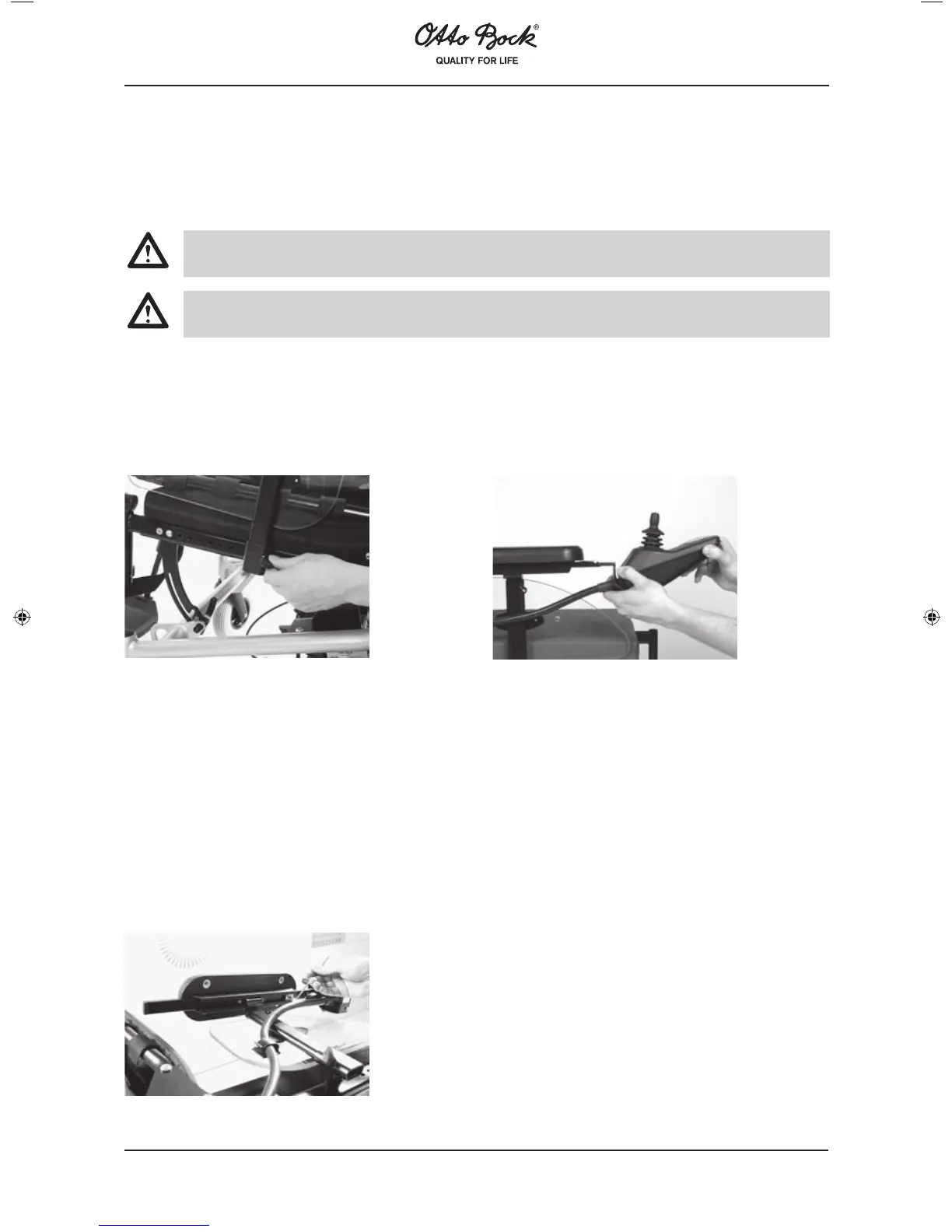

Figure 10 Figure 11
The armrest height can be changed by loosening the set screw at the upper end of the armrest holder. Ensure
the set screw is retightened after making any adjustments.
8.4 Control Panel
8.4.1 Removing the Control Panel
The control panel can be removed by pulling it to the front.
8.4.2 Adaptation to the Arm Length
After loosening the attachment screws on the underside of the armrest, the control panel mounting can be ad-
justed
to the front or to the rear and thus adapted to the desired arm length (Fig. 12). Ensure all attachment screws
are fully tightly after adjustment.
Figure 12
