The PV (-) and BAT (-) terminals are connected internally. Only one negative wire may be needed to
connect to the (-) wire lugs if the PV - and BAT- conductors are bonded at the negative bus bar. See
Figures 2 and 3 for sample wiring diagrams. See Wire and Disconnect Sizing on page 80 for suitable
conductor/wire sizing.
NOTES:
•
Each FLEXmax 80 requires its own PV array. DO NOT PARALLEL FLEXmax 80 PV+ and PV- TERMINALS
ON THE SAME ARRAY!
• An optional battery Remote Temperature Sensor (RTS) is recommended for accurate battery
recharging (only one RTS is needed for multiple OutBack Series Inverter/Chargers and FLEXmax 80
units when an OutBack HUB and a MATE are parts of the system). When one RTS is used, it must be
connected to the component plugged into the Port 1 of the HUB.

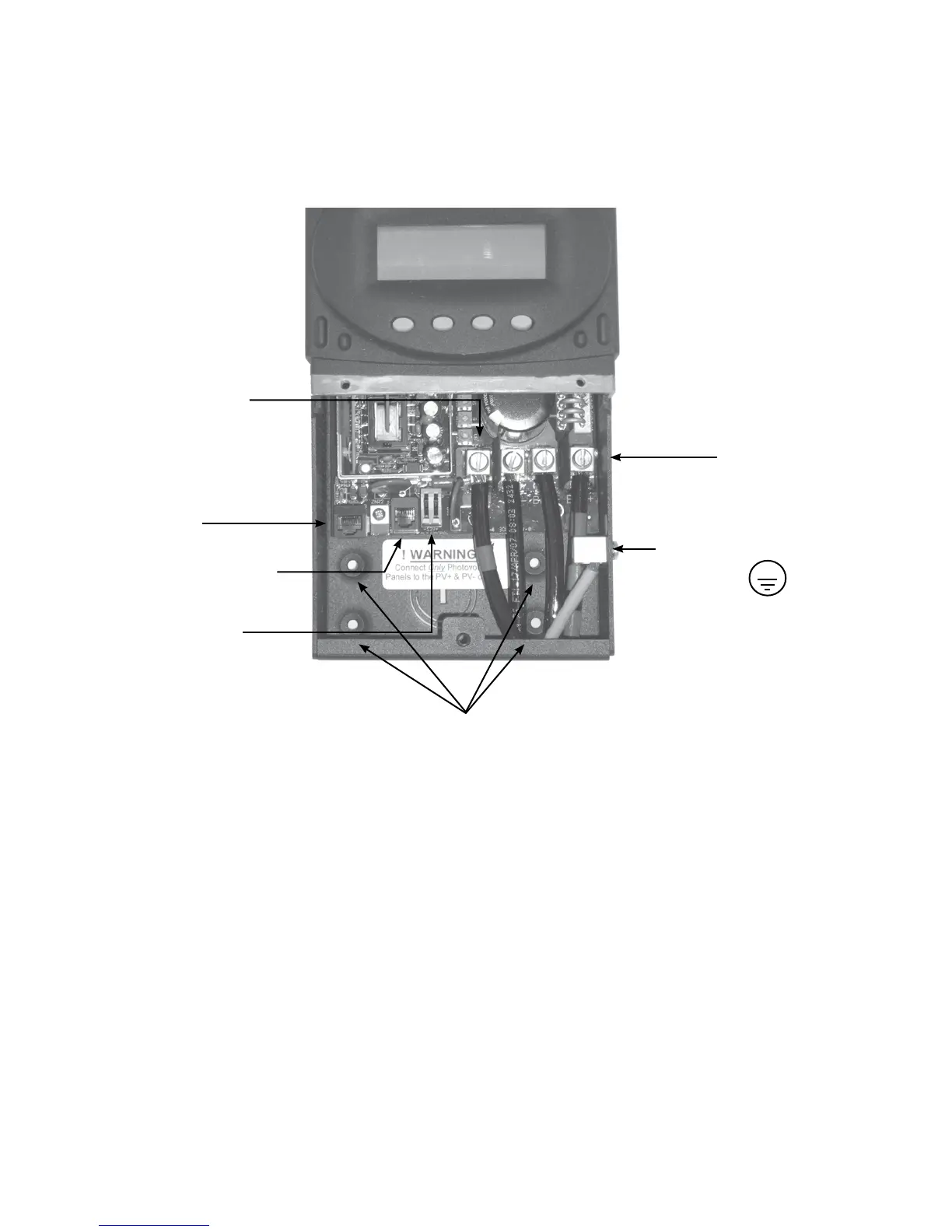

Figure 1 FLEXmax 80 wiring compartment
Programmable
AUX Output Jack
(supplies up to
200mA @ 12 VDC
Battery Remote Temp
Sensor (RTS) RJ11 jack
Use up to 2 AWG
(33.6 mm
2
) wire
and torque to
35-inch pounds at
terminals.
MATE/HUB
RJ45 jack
Chassis/Equipment
Ground Lug
PV+ PV- BAT- BAT+
Wire Lugs
Screw holes for attaching FLEXmax 80
3. FLEXmax 80 Wiring Connections
