Outback Power Systems FLEXMAX 80 - Flexmax 80 EFFICIENCY Vs. INPUT POWER GRAPH

61
PB

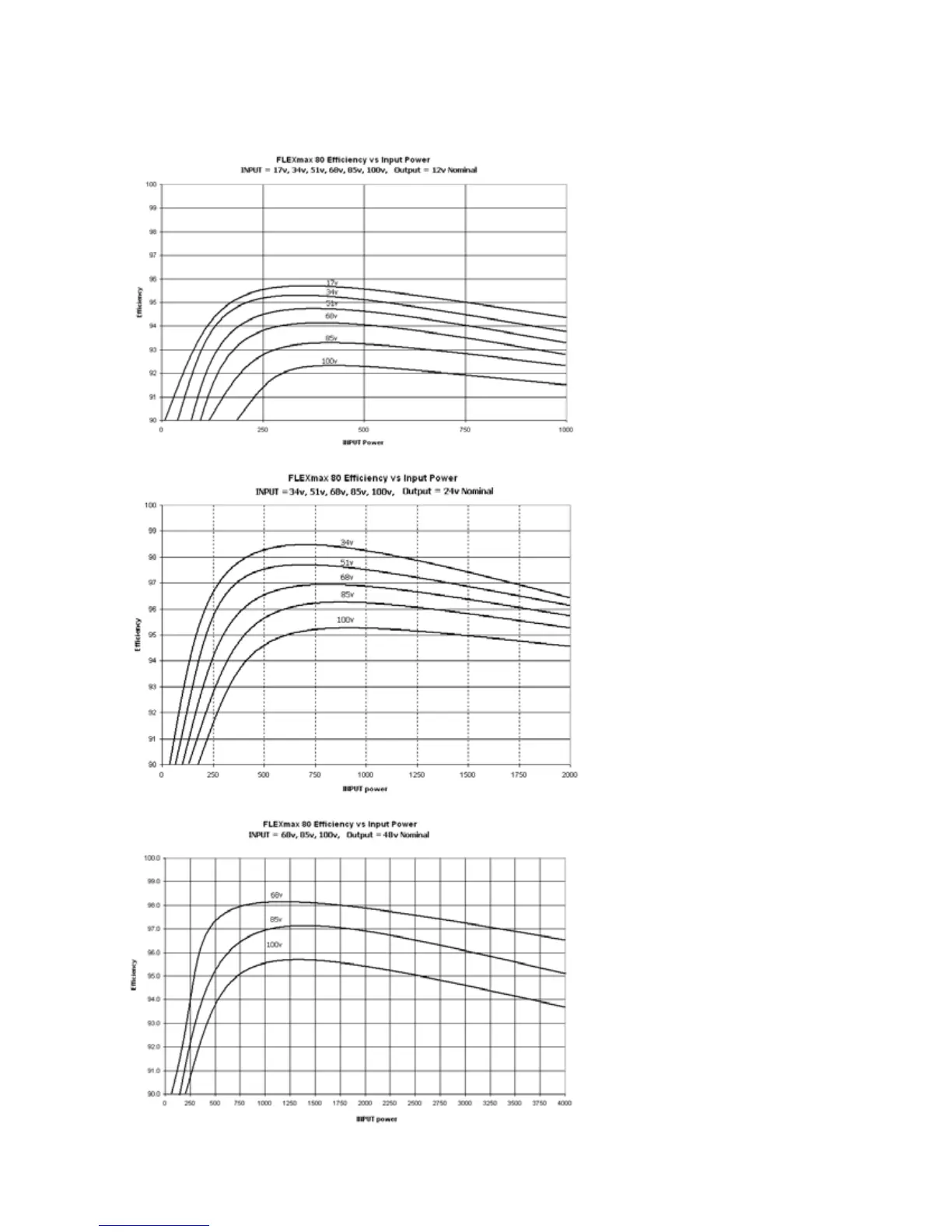

21. FLEXmax 80 EFFICIENCY vs. INPUT POWER GRAPH
Figure 7 12V Battery System
Eciency Curve
Figure 8 24V Battery System
Eciency Curve
Figure 9 48V Battery System
Eciency Curve
