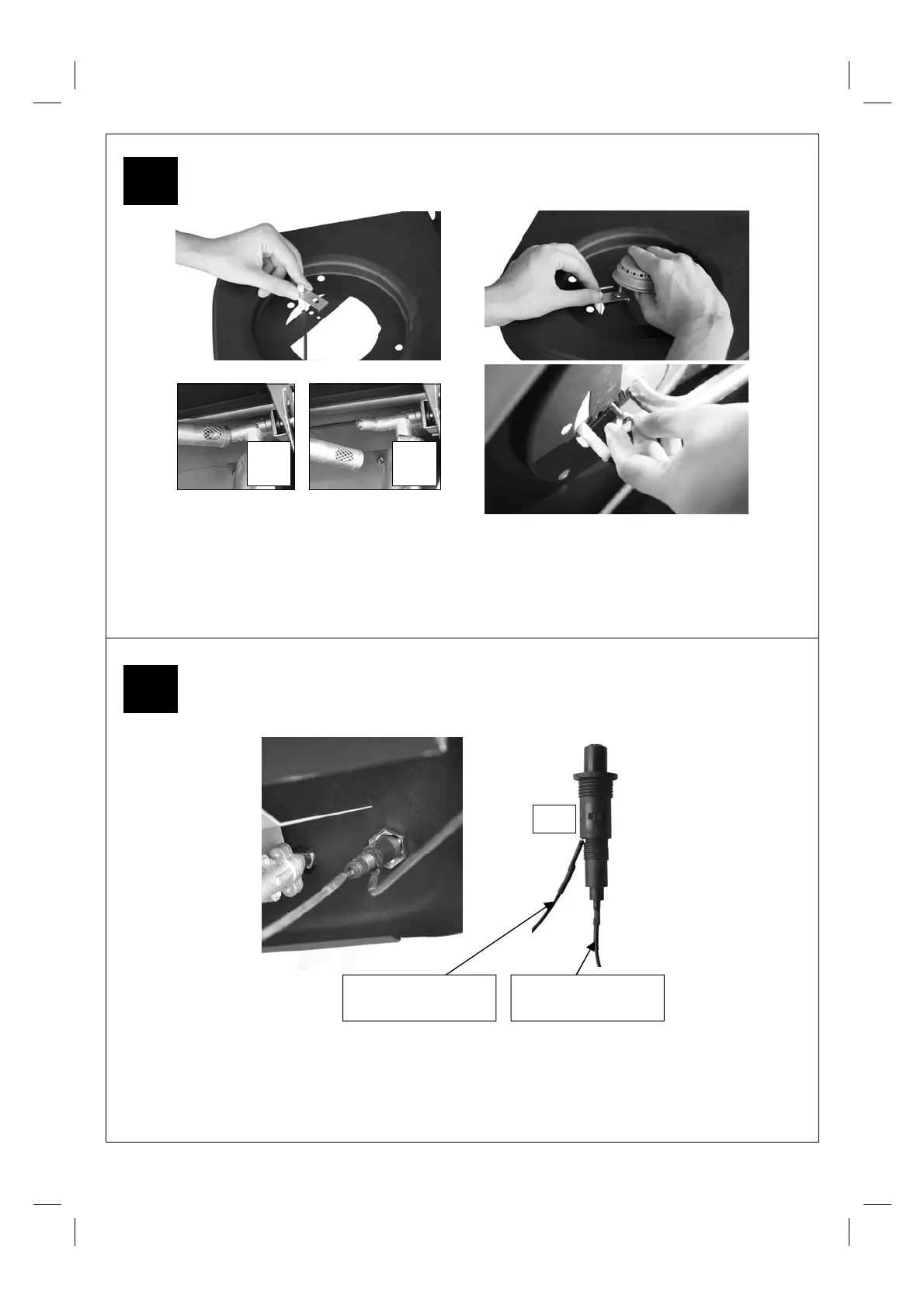

Remove the wing nut from Side Burner (C7). Place the Side Burner Electrode (C8) onto
the side burner shelf as shown. Then Place the side burner in position as above shown. Fit
the side burner venturi tube over the gas valve outlet. This is a loose fit and not a gas tight
seal. Secure the electrode and side burner with the wing nut.
Connect the electrode wire to the Ignition Button (B8) under the control panel.
B8
Main burner electrode
wire goes here.
Side burner electrode
wire goes here.
